Learning Objectives

In this section, you will:

  • Identify nondegenerate conic sections given their general form equations.
  • Use rotation of axes formulas.
  • Write equations of rotated conics in standard form.
  • Identify conics without rotating axes.

As we have seen, conic sections are formed when a plane intersects two right circular cones aligned tip to tip and extending infinitely far in opposite directions, which we also call a cone. The way in which we slice the cone will determine the type of conic section formed at the intersection. A circle is formed by slicing a cone with a plane perpendicular to the axis of symmetry of the cone. An ellipse is formed by slicing a single cone with a slanted plane not perpendicular to the axis of symmetry. A parabola is formed by slicing the plane through the top or bottom of the double-cone, whereas a hyperbola is formed when the plane slices both the top and bottom of the cone. See Figure 1.

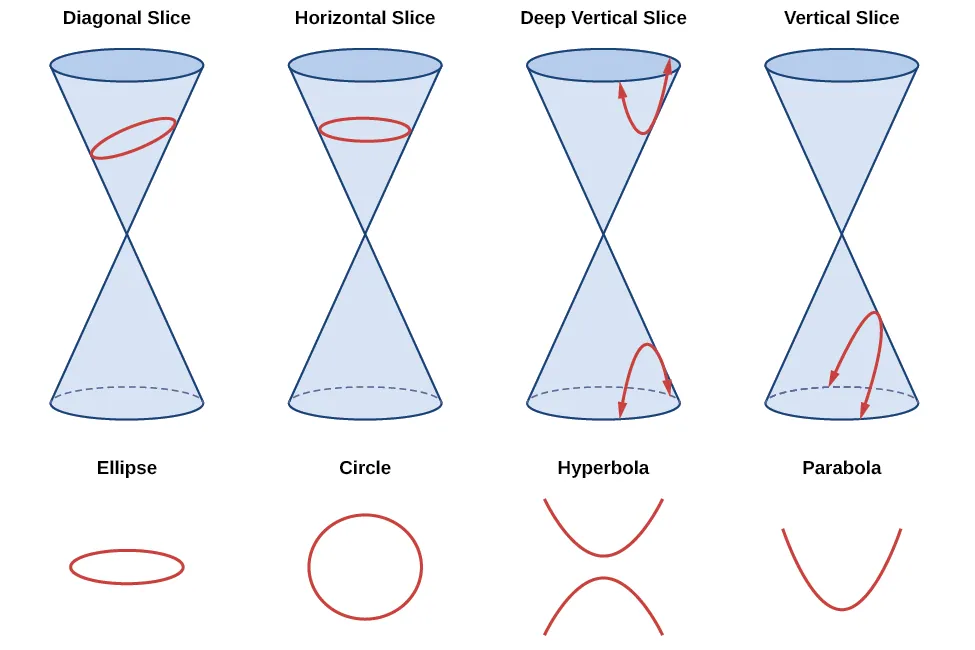

Figure 1 The nondegenerate conic sections

Ellipses, circles, hyperbolas, and parabolas are sometimes called the nondegenerate conic sections, in contrast to the degenerate conic sections, which are shown in Figure 2. A degenerate conic results when a plane intersects the double cone and passes through the apex. Depending on the angle of the plane, three types of degenerate conic sections are possible: a point, a line, or two intersecting lines.

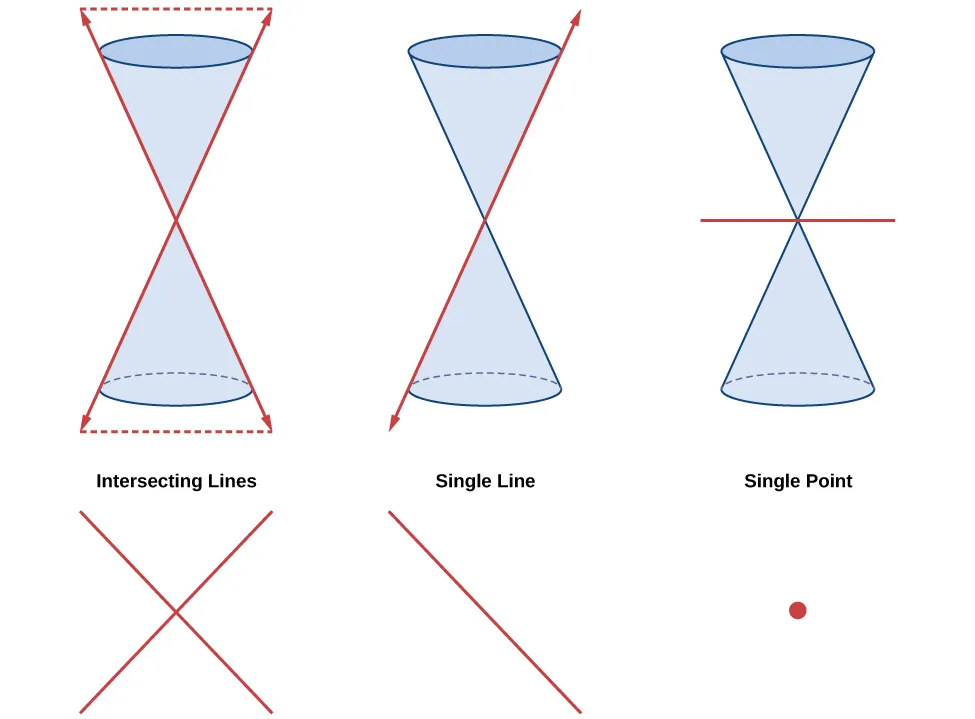

Figure 2 Degenerate conic sections

Identifying Nondegenerate Conics in General Form

In previous sections of this chapter, we have focused on the standard form equations for nondegenerate conic sections. In this section, we will shift our focus to the general form equation, which can be used for any conic. The general form is set equal to zero, and the terms and coefficients are given in a particular order, as shown below.

A x 2 +Bxy+C y 2 +Dx+Ey+F=0 A x 2 +Bxy+C y 2 +Dx+Ey+F=0

where A,B, A,B, and C C are not all zero. We can use the values of the coefficients to identify which type conic is represented by a given equation.

You may notice that the general form equation has an xy xy term that we have not seen in any of the standard form equations. As we will discuss later, the xy xy term rotates the conic whenever B B is not equal to zero.

Conic Sections Example
ellipse 4 x 2 +9 y 2 =1 4 x 2 +9 y 2 =1
circle 4 x 2 +4 y 2 =1 4 x 2 +4 y 2 =1
hyperbola 4 x 2 9 y 2 =1 4 x 2 9 y 2 =1
parabola 4 x 2 =9yor 4 y 2 =9x 4 x 2 =9yor 4 y 2 =9x
one line 4x+9y=1 4x+9y=1
intersecting lines ( x4 )( y+4 )=0 ( x4 )( y+4 )=0
parallel lines ( x4 )( x9 )=0 ( x4 )( x9 )=0
a point 4 x 2 +4 y 2 =0 4 x 2 +4 y 2 =0
no graph 4 x 2 +4 y 2 =1 4 x 2 +4 y 2 =1
Table 1

General Form of Conic Sections

A conic section has the general form

A x 2 +Bxy+C y 2 +Dx+Ey+F=0 A x 2 +Bxy+C y 2 +Dx+Ey+F=0

where A,B, A,B, and C C are not all zero.

Table 2 summarizes the different conic sections where B=0, B=0, and A A and C C are nonzero real numbers. This indicates that the conic has not been rotated.

ellipse A x 2 +C y 2 +Dx+Ey+F=0,ACand AC>0 A x 2 +C y 2 +Dx+Ey+F=0,ACand AC>0
circle A x 2 +C y 2 +Dx+Ey+F=0,A=C A x 2 +C y 2 +Dx+Ey+F=0,A=C
hyperbola A x 2 C y 2 +Dx+Ey+F=0or A x 2 +C y 2 +Dx+Ey+F=0, A x 2 C y 2 +Dx+Ey+F=0or A x 2 +C y 2 +Dx+Ey+F=0, where A A and C C are positive
parabola A x 2 +Dx+Ey+F=0or C y 2 +Dx+Ey+F=0 A x 2 +Dx+Ey+F=0or C y 2 +Dx+Ey+F=0
Table 2

How To

Given the equation of a conic, identify the type of conic.

  1. Rewrite the equation in the general form, A x 2 +Bxy+C y 2 +Dx+Ey+F=0. A x 2 +Bxy+C y 2 +Dx+Ey+F=0.
  2. Identify the values of A A and C C from the general form.
    1. If A A and C C are nonzero, have the same sign, and are not equal to each other, then the graph may be an ellipse.
    2. If A A and C C are equal and nonzero and have the same sign, then the graph may be a circle.
    3. If A A and C C are nonzero and have opposite signs, then the graph may be a hyperbola.
    4. If either A A or C C is zero, then the graph may be a parabola.

    If B = 0, the conic section will have a vertical and/or horizontal axes. If B does not equal 0, as shown below, the conic section is rotated. Notice the phrase “may be” in the definitions. That is because the equation may not represent a conic section at all, depending on the values of A, B, C, D, E, and F. For example, the degenerate case of a circle or an ellipse is a point:
    A x 2 +By2=0, A x 2 +By2=0, when A and B have the same sign.
    The degenerate case of a hyperbola is two intersecting straight lines: A x 2 +By2=0, A x 2 +By2=0, when A and B have opposite signs.
    On the other hand, the equation, A x 2 +By2+1=0, A x 2 +By2+1=0, when A and B are positive does not represent a graph at all, since there are no real ordered pairs which satisfy it.

Example 1

Identifying a Conic from Its General Form

Identify the graph of each of the following nondegenerate conic sections.

  1. 4 x 2 9 y 2 +36x+36y125=0 4 x 2 9 y 2 +36x+36y125=0
  2. 9 y 2 +16x+36y10=0 9 y 2 +16x+36y10=0
  3. 3 x 2 +3 y 2 2x6y4=0 3 x 2 +3 y 2 2x6y4=0
  4. 25 x 2 4 y 2 +100x+16y+20=0 25 x 2 4 y 2 +100x+16y+20=0

Try It #1

Identify the graph of each of the following nondegenerate conic sections.

  1. 16 y 2 x 2 +x4y9=0 16 y 2 x 2 +x4y9=0
  2. 16 x 2 +4 y 2 +16x+49y81=0 16 x 2 +4 y 2 +16x+49y81=0

Finding a New Representation of the Given Equation after Rotating through a Given Angle

Until now, we have looked at equations of conic sections without an xy xy term, which aligns the graphs with the x- and y-axes. When we add an xy xy term, we are rotating the conic about the origin. If the x- and y-axes are rotated through an angle, say θ, θ, then every point on the plane may be thought of as having two representations: ( x,y ) ( x,y ) on the Cartesian plane with the original x-axis and y-axis, and ( x , y ) ( x , y ) on the new plane defined by the new, rotated axes, called the x'-axis and y'-axis. See Figure 3.

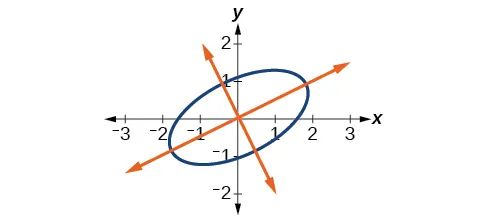

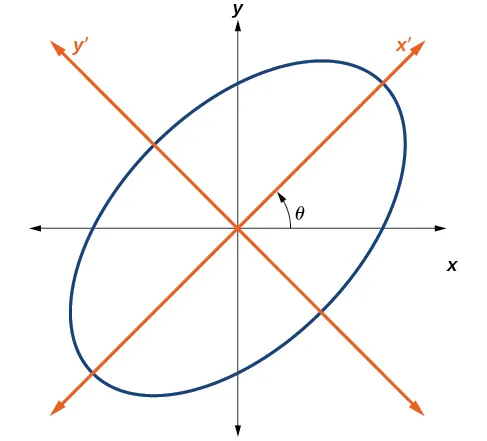

Figure 3 The graph of the rotated ellipse x 2 + y 2 xy15=0 x 2 + y 2 xy15=0

We will find the relationships between x x and y y on the Cartesian plane with x x and y y on the new rotated plane. See Figure 4.

Figure 4 The Cartesian plane with x- and y-axes and the resulting x′− and y′−axes formed by a rotation by an angle θ. θ.

The original coordinate x- and y-axes have unit vectors i i and j . j . The rotated coordinate axes have unit vectors i i and j . j . The angle θ θ is known as the angle of rotation. See Figure 5. We may write the new unit vectors in terms of the original ones.

i =cosθi+sinθj j =sinθi+cosθj i =cosθi+sinθj j =sinθi+cosθj

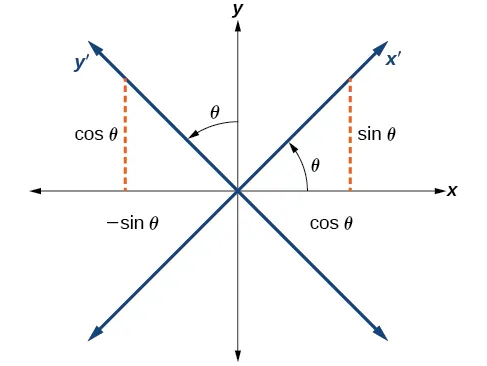

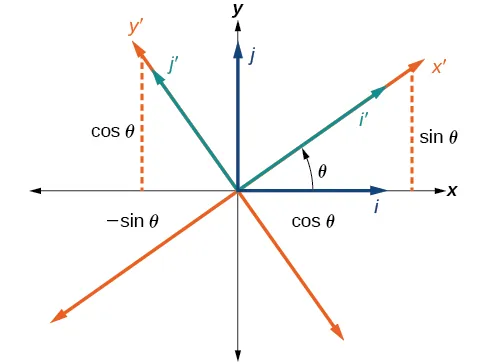

Figure 5 Relationship between the old and new coordinate planes.

Consider a vector u u in the new coordinate plane. It may be represented in terms of its coordinate axes.

u= x i + y j u= x (icosθ+jsinθ)+ y (isinθ+jcosθ) Substitute. u=ix'cosθ+jx'sinθiy'sinθ+jy'cosθ Distribute. u=ix'cosθiy'sinθ+jx'sinθ+jy'cosθ Apply commutative property. u=(x'cosθy'sinθ)i+(x'sinθ+y'cosθ)j Factor by grouping. u= x i + y j u= x (icosθ+jsinθ)+ y (isinθ+jcosθ) Substitute. u=ix'cosθ+jx'sinθiy'sinθ+jy'cosθ Distribute. u=ix'cosθiy'sinθ+jx'sinθ+jy'cosθ Apply commutative property. u=(x'cosθy'sinθ)i+(x'sinθ+y'cosθ)j Factor by grouping.

Because u= x i + y j , u= x i + y j , we have representations of x x and y y in terms of the new coordinate system.

x= x cosθ y sinθ and y= x sinθ+ y cosθ x= x cosθ y sinθ and y= x sinθ+ y cosθ

Equations of Rotation

If a point ( x,y ) ( x,y ) on the Cartesian plane is represented on a new coordinate plane where the axes of rotation are formed by rotating an angle θ θ from the positive x-axis, then the coordinates of the point with respect to the new axes are ( x , y ). ( x , y ). We can use the following equations of rotation to define the relationship between ( x,y ) ( x,y ) and ( x , y ): ( x , y ):

x= x cosθ y sinθ x= x cosθ y sinθ

and

y= x sinθ+ y cosθ y= x sinθ+ y cosθ

How To

Given the equation of a conic, find a new representation after rotating through an angle.

  1. Find x x and y y where x= x cosθ y sinθ x= x cosθ y sinθ and y= x sinθ+ y cosθ. y= x sinθ+ y cosθ.
  2. Substitute the expression for x x and y y into in the given equation, then simplify.
  3. Write the equations with x x and y y in standard form.

Example 2

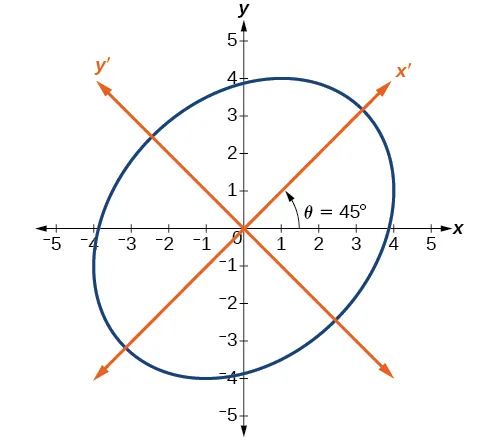

Finding a New Representation of an Equation after Rotating through a Given Angle

Find a new representation of the equation 2 x 2 xy+2 y 2 30=0 2 x 2 xy+2 y 2 30=0 after rotating through an angle of θ=45°. θ=45°.

Writing Equations of Rotated Conics in Standard Form

Now that we can find the standard form of a conic when we are given an angle of rotation, we will learn how to transform the equation of a conic given in the form A x 2 +Bxy+C y 2 +Dx+Ey+F=0 A x 2 +Bxy+C y 2 +Dx+Ey+F=0 into standard form by rotating the axes. To do so, we will rewrite the general form as an equation in the x x and y y coordinate system without the x y x y term, by rotating the axes by a measure of θ θ that satisfies

cot( 2θ )= AC B cot( 2θ )= AC B

We have learned already that any conic may be represented by the second degree equation

A x 2 +Bxy+C y 2 +Dx+Ey+F=0 A x 2 +Bxy+C y 2 +Dx+Ey+F=0

where A,B, A,B, and C C are not all zero. However, if B0, B0, then we have an xy xy term that prevents us from rewriting the equation in standard form. To eliminate it, we can rotate the axes by an acute angle θ θ where cot( 2θ )= AC B . cot( 2θ )= AC B .

  • If cot(2θ)>0, cot(2θ)>0, then 2θ 2θ is in the first quadrant, and θ θ is between (,45°). (,45°).
  • If cot(2θ)<0, cot(2θ)<0, then 2θ 2θ is in the second quadrant, and θ θ is between (45°,90°). (45°,90°).
  • If A=C, A=C, then θ=45°. θ=45°.

How To

Given an equation for a conic in the x y x y system, rewrite the equation without the x y x y term in terms of x x and y , y , where the x x and y y axes are rotations of the standard axes by θ θ degrees.

  1. Find cot(2θ). cot(2θ).
  2. Find sinθ sinθ and cosθ. cosθ.
  3. Substitute sinθ sinθ and cosθ cosθ into x= x cosθ y sinθ x= x cosθ y sinθ and y= x sinθ+ y cosθ. y= x sinθ+ y cosθ.
  4. Substitute the expression for x x and y y into in the given equation, and then simplify.
  5. Write the equations with x x and y y in the standard form with respect to the rotated axes.

Example 3

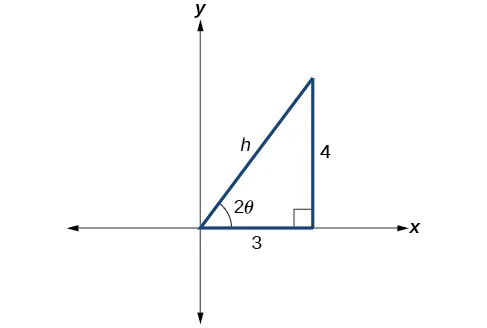

Rewriting an Equation with respect to the x′ and y′ axes without the x′y′ Term

Rewrite the equation 8 x 2 12xy+17 y 2 =20 8 x 2 12xy+17 y 2 =20 in the x y x y system without an x y x y term.

Try It #2

Rewrite the 13 x 2 6 3 xy+7 y 2 =16 13 x 2 6 3 xy+7 y 2 =16 in the x y x y system without the x y x y term.

Example 4

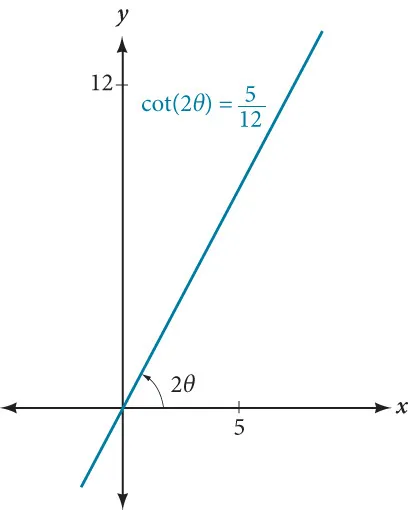

Graphing an Equation That Has No x′y′ Terms

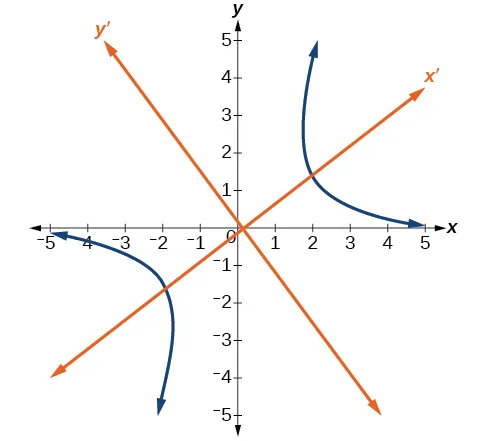

Graph the following equation relative to the x y x y system:

x 2 +12xy4 y 2 =30 x 2 +12xy4 y 2 =30

Identifying Conics without Rotating Axes

Now we have come full circle. How do we identify the type of conic described by an equation? What happens when the axes are rotated? Recall, the general form of a conic is

A x 2 +Bxy+C y 2 +Dx+Ey+F=0 A x 2 +Bxy+C y 2 +Dx+Ey+F=0

If we apply the rotation formulas to this equation we get the form

A x 2 + B x y + C y 2 + D x + E y + F =0 A x 2 + B x y + C y 2 + D x + E y + F =0

It may be shown that B 2 4AC= B 2 4 A C . B 2 4AC= B 2 4 A C . The expression does not vary after rotation, so we call the expression invariant. The discriminant, B 2 4AC, B 2 4AC, is invariant and remains unchanged after rotation. Because the discriminant remains unchanged, observing the discriminant enables us to identify the conic section.

Using the Discriminant to Identify a Conic

If the equation A x 2 +Bxy+C y 2 +Dx+Ey+F=0 A x 2 +Bxy+C y 2 +Dx+Ey+F=0 is transformed by rotating axes into the equation A x 2 + B x y + C y 2 + D x + E y + F =0, A x 2 + B x y + C y 2 + D x + E y + F =0, then B 2 4AC= B 2 4 A C . B 2 4AC= B 2 4 A C .

The equation A x 2 +Bxy+C y 2 +Dx+Ey+F=0 A x 2 +Bxy+C y 2 +Dx+Ey+F=0 is an ellipse, a parabola, or a hyperbola, or a degenerate case of one of these.

If the discriminant, B 2 4AC, B 2 4AC, is

  • <0, <0, the conic section is an ellipse
  • =0, =0, the conic section is a parabola
  • >0, >0, the conic section is a hyperbola

Example 5

Identifying the Conic without Rotating Axes

Identify the conic for each of the following without rotating axes.

  1. 5 x 2 +2 3 xy+2 y 2 5=0 5 x 2 +2 3 xy+2 y 2 5=0
  2. 5 x 2 +2 3 xy+12 y 2 5=0 5 x 2 +2 3 xy+12 y 2 5=0

Try It #3

Identify the conic for each of the following without rotating axes.

  1. x 2 9xy+3 y 2 12=0 x 2 9xy+3 y 2 12=0
  2. 10 x 2 9xy+4 y 2 4=0 10 x 2 9xy+4 y 2 4=0

Media

Access this online resource for additional instruction and practice with conic sections and rotation of axes.

8.4 Section Exercises

Verbal

1.

What effect does the xy xy term have on the graph of a conic section?

2.

If the equation of a conic section is written in the form A x 2 +B y 2 +Cx+Dy+E=0 A x 2 +B y 2 +Cx+Dy+E=0 and AB=0, AB=0, what can we conclude?

3.

If the equation of a conic section is written in the form A x 2 +Bxy+C y 2 +Dx+Ey+F=0, A x 2 +Bxy+C y 2 +Dx+Ey+F=0, and B 2 4AC>0, B 2 4AC>0, what can we conclude?

4.

Given the equation a x 2 +4x+3 y 2 12=0, a x 2 +4x+3 y 2 12=0, what can we conclude if a>0? a>0?

5.

For the equation A x 2 +Bxy+C y 2 +Dx+Ey+F=0, A x 2 +Bxy+C y 2 +Dx+Ey+F=0, the value of θ θ that satisfies cot( 2θ )= AC B cot( 2θ )= AC B gives us what information?

Algebraic

For the following exercises, determine which conic section is represented based on the given equation.

6.

9 x 2 +4 y 2 +72x+36y500=0 9 x 2 +4 y 2 +72x+36y500=0

7.

x 2 10x+4y10=0 x 2 10x+4y10=0

8.

2 x 2 2 y 2 +4x6y2=0 2 x 2 2 y 2 +4x6y2=0

9.

4 x 2 y 2 +8x1=0 4 x 2 y 2 +8x1=0

10.

4 y 2 5x+9y+1=0 4 y 2 5x+9y+1=0

11.

2 x 2 +3 y 2 8x12y+2=0 2 x 2 +3 y 2 8x12y+2=0

12.

4 x 2 +9xy+4 y 2 36y125=0 4 x 2 +9xy+4 y 2 36y125=0

13.

3 x 2 +6xy+3 y 2 36y125=0 3 x 2 +6xy+3 y 2 36y125=0

14.

3 x 2 +3 3 xy4 y 2 +9=0 3 x 2 +3 3 xy4 y 2 +9=0

15.

2 x 2 +4 3 xy+6 y 2 6x3=0 2 x 2 +4 3 xy+6 y 2 6x3=0

16.

x 2 +4 2 xy+2 y 2 2y+1=0 x 2 +4 2 xy+2 y 2 2y+1=0

17.

8 x 2 +4 2 xy+4 y 2 10x+1=0 8 x 2 +4 2 xy+4 y 2 10x+1=0

For the following exercises, find a new representation of the given equation after rotating through the given angle.

18.

3 x 2 +xy+3 y 2 5=0,θ=45° 3 x 2 +xy+3 y 2 5=0,θ=45°

19.

4 x 2 xy+4 y 2 2=0,θ=45° 4 x 2 xy+4 y 2 2=0,θ=45°

20.

2 x 2 +8xy1=0,θ=30° 2 x 2 +8xy1=0,θ=30°

21.

2 x 2 +8xy+1=0,θ=45° 2 x 2 +8xy+1=0,θ=45°

22.

4 x 2 + 2 xy+4 y 2 +y+2=0,θ=45° 4 x 2 + 2 xy+4 y 2 +y+2=0,θ=45°

For the following exercises, determine the angle θ θ that will eliminate the xy xy term and write the corresponding equation without the xy xy term.

23.

x 2 +3 3 xy+4 y 2 +y2=0 x 2 +3 3 xy+4 y 2 +y2=0

24.

4 x 2 +2 3 xy+6 y 2 +y2=0 4 x 2 +2 3 xy+6 y 2 +y2=0

25.

9 x 2 3 3 xy+6 y 2 +4y3=0 9 x 2 3 3 xy+6 y 2 +4y3=0

26.

−3 x 2 3 xy2 y 2 x=0 −3 x 2 3 xy2 y 2 x=0

27.

16 x 2 +24xy+9 y 2 +6x6y+2=0 16 x 2 +24xy+9 y 2 +6x6y+2=0

28.

x 2 +4xy+4 y 2 +3x2=0 x 2 +4xy+4 y 2 +3x2=0

29.

x 2 +4xy+ y 2 2x+1=0 x 2 +4xy+ y 2 2x+1=0

30.

4 x 2 2 3 xy+6 y 2 1=0 4 x 2 2 3 xy+6 y 2 1=0

Graphical

For the following exercises, rotate through the given angle based on the given equation. Give the new equation and graph the original and rotated equation.

31.

y= x 2 ,θ= 45 y= x 2 ,θ= 45

32.

x= y 2 ,θ= 45 x= y 2 ,θ= 45

33.

x 2 4 + y 2 1 =1,θ= 45 x 2 4 + y 2 1 =1,θ= 45

34.

y 2 16 + x 2 9 =1,θ= 45 y 2 16 + x 2 9 =1,θ= 45

35.

y 2 x 2 =1,θ= 45 y 2 x 2 =1,θ= 45

36.

y= x 2 2 ,θ= 30 y= x 2 2 ,θ= 30

37.

x= ( y1 ) 2 ,θ= 30 x= ( y1 ) 2 ,θ= 30

38.

x 2 9 + y 2 4 =1,θ= 30 x 2 9 + y 2 4 =1,θ= 30

For the following exercises, graph the equation relative to the x y x y system in which the equation has no x y x y term.

39.

xy=9 xy=9

40.

x 2 +10xy+ y 2 6=0 x 2 +10xy+ y 2 6=0

41.

x 2 10xy+ y 2 24=0 x 2 10xy+ y 2 24=0

42.

4 x 2 3 3 xy+ y 2 22=0 4 x 2 3 3 xy+ y 2 22=0

43.

6 x 2 +2 3 xy+4 y 2 21=0 6 x 2 +2 3 xy+4 y 2 21=0

44.

11 x 2 +10 3 xy+ y 2 64=0 11 x 2 +10 3 xy+ y 2 64=0

45.

21 x 2 +2 3 xy+19 y 2 18=0 21 x 2 +2 3 xy+19 y 2 18=0

46.

16 x 2 +24xy+9 y 2 130x+90y=0 16 x 2 +24xy+9 y 2 130x+90y=0

47.

16 x 2 +24xy+9 y 2 60x+80y=0 16 x 2 +24xy+9 y 2 60x+80y=0

48.

13 x 2 6 3 xy+7 y 2 16=0 13 x 2 6 3 xy+7 y 2 16=0

49.

4 x 2 4xy+ y 2 8 5 x16 5 y=0 4 x 2 4xy+ y 2 8 5 x16 5 y=0

For the following exercises, determine the angle of rotation in order to eliminate the xy xy term. Then graph the new set of axes.

50.

6 x 2 5 3 xy+ y 2 +10x12y=0 6 x 2 5 3 xy+ y 2 +10x12y=0

51.

6 x 2 5xy+6 y 2 +20xy=0 6 x 2 5xy+6 y 2 +20xy=0

52.

6 x 2 8 3 xy+14 y 2 +10x3y=0 6 x 2 8 3 xy+14 y 2 +10x3y=0

53.

4 x 2 +6 3 xy+10 y 2 +20x40y=0 4 x 2 +6 3 xy+10 y 2 +20x40y=0

54.

8 x 2 +3xy+4 y 2 +2x4=0 8 x 2 +3xy+4 y 2 +2x4=0

55.

16 x 2 +24xy+9 y 2 +20x44y=0 16 x 2 +24xy+9 y 2 +20x44y=0

For the following exercises, determine the value of k k based on the given equation.

56.

Given 4 x 2 +kxy+16 y 2 +8x+24y48=0, 4 x 2 +kxy+16 y 2 +8x+24y48=0, find k k for the graph to be a parabola.

57.

Given 2 x 2 +kxy+12 y 2 +10x16y+28=0, 2 x 2 +kxy+12 y 2 +10x16y+28=0, find k k for the graph to be an ellipse.

58.

Given 3 x 2 +kxy+4 y 2 6x+20y+128=0, 3 x 2 +kxy+4 y 2 6x+20y+128=0, find k k for the graph to be a hyperbola.

59.

Given k x 2 +8xy+8 y 2 12x+16y+18=0, k x 2 +8xy+8 y 2 12x+16y+18=0, find k k for the graph to be a parabola.

60.

Given 6 x 2 +12xy+k y 2 +16x+10y+4=0, 6 x 2 +12xy+k y 2 +16x+10y+4=0, find k k for the graph to be an ellipse.

Order a print copy

As an Amazon Associate we earn from qualifying purchases.

Citation/Attribution

This book may not be used in the training of large language models or otherwise be ingested into large language models or generative AI offerings without OpenStax's permission.

Want to cite, share, or modify this book? This book uses the Creative Commons Attribution License and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/college-algebra-2e/pages/1-introduction-to-prerequisites
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/college-algebra-2e/pages/1-introduction-to-prerequisites
Citation information

© Jan 9, 2024 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License . The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
