Chemistry

# 12.4Integrated Rate Laws

Chemistry12.4 Integrated Rate Laws

## Learning Objectives

By the end of this section, you will be able to:
• Explain the form and function of an integrated rate law
• Perform integrated rate law calculations for zero-, first-, and second-order reactions
• Define half-life and carry out related calculations
• Identify the order of a reaction from concentration/time data

The rate laws we have seen thus far relate the rate and the concentrations of reactants. We can also determine a second form of each rate law that relates the concentrations of reactants and time. These are called integrated rate laws. We can use an integrated rate law to determine the amount of reactant or product present after a period of time or to estimate the time required for a reaction to proceed to a certain extent. For example, an integrated rate law is used to determine the length of time a radioactive material must be stored for its radioactivity to decay to a safe level.

Using calculus, the differential rate law for a chemical reaction can be integrated with respect to time to give an equation that relates the amount of reactant or product present in a reaction mixture to the elapsed time of the reaction. This process can either be very straightforward or very complex, depending on the complexity of the differential rate law. For purposes of discussion, we will focus on the resulting integrated rate laws for first-, second-, and zero-order reactions.

## First-Order Reactions

An equation relating the rate constant k to the initial concentration [A]0 and the concentration [A]t present after any given time t can be derived for a first-order reaction and shown to be:

$ln([A]t[A]0)=−ktln([A]t[A]0)=−kt$
12.54

or

$ln([A]0[A]t)=ktln([A]0[A]t)=kt$
12.55

or

$[A] = [A]0 e−kt [A]=[A]0e−kt$
12.56

## Example 12.6

### The Integrated Rate Law for a First-Order Reaction

The rate constant for the first-order decomposition of cyclobutane, C4H8 at 500 °C is 9.2 $××$ 10−3 s−1:
$C4H8⟶2C2H4C4H8⟶2C2H4$
12.57

How long will it take for 80.0% of a sample of C4H8 to decompose?

### Solution

We use the integrated form of the rate law to answer questions regarding time:
$ln([A]0[A])=ktln([A]0[A])=kt$
12.58

There are four variables in the rate law, so if we know three of them, we can determine the fourth. In this case we know [A]0, [A], and k, and need to find t.

The initial concentration of C4H8, [A]0, is not provided, but the provision that 80.0% of the sample has decomposed is enough information to solve this problem. Let x be the initial concentration, in which case the concentration after 80.0% decomposition is 20.0% of x or 0.200x. Rearranging the rate law to isolate t and substituting the provided quantities yields:

12.59

Iodine-131 is a radioactive isotope that is used to diagnose and treat some forms of thyroid cancer. Iodine-131 decays to xenon-131 according to the equation:
$I-131⟶Xe-131+electronI-131⟶Xe-131+electron$
12.60

The decay is first-order with a rate constant of 0.138 d−1. All radioactive decay is first order. How many days will it take for 90% of the iodine−131 in a 0.500 M solution of this substance to decay to Xe-131?

16.7 days

We can use integrated rate laws with experimental data that consist of time and concentration information to determine the order and rate constant of a reaction. The integrated rate law can be rearranged to a standard linear equation format:

$ln[A]=(−k)(t)+ln[A]0y=mx+bln[A]=(−k)(t)+ln[A]0y=mx+b$
12.61

A plot of ln[A] versus t for a first-order reaction is a straight line with a slope of −k and an intercept of ln[A]0. If a set of rate data are plotted in this fashion but do not result in a straight line, the reaction is not first order in A.

## Example 12.7

### Determination of Reaction Order by Graphing

Show that the data in Figure 12.2 can be represented by a first-order rate law by graphing ln[H2O2] versus time. Determine the rate constant for the rate of decomposition of H2O2 from this data.

### Solution

The data from Figure 12.2 with the addition of values of ln[H2O2] are given in Figure 12.10.

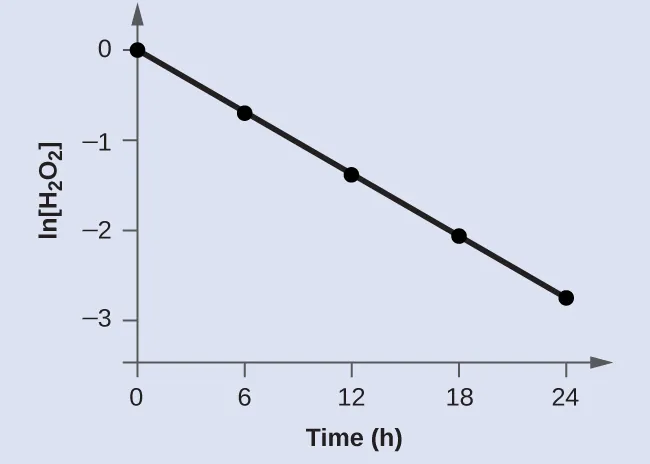

Figure 12.10 The linear relationship between the ln[H2O2] and time shows that the decomposition of hydrogen peroxide is a first-order reaction.
Trial Time (h) [H2O2] (M) ln[H2O2]
1 0 1.000 0.0
2 6.00 0.500 −0.693
3 12.00 0.250 −1.386
4 18.00 0.125 −2.079
5 24.00 0.0625 −2.772

The plot of ln[H2O2] versus time is linear, thus we have verified that the reaction may be described by a first-order rate law.

The rate constant for a first-order reaction is equal to the negative of the slope of the plot of ln[H2O2] versus time where:

$slope=change inychange inx=ΔyΔx=Δln[H2O2]Δtslope=change inychange inx=ΔyΔx=Δln[H2O2]Δt$
12.62

In order to determine the slope of the line, we need two values of ln[H2O2] at different values of t (one near each end of the line is preferable). For example, the value of ln[H2O2] when t is 6.00 h is −0.693; the value when t = 12.00 h is −1.386:

12.63

Graph the following data to determine whether the reaction $A⟶B+CA⟶B+C$ is first order.
Trial Time (s) [A]
1 4.0 0.220
2 8.0 0.144
3 12.0 0.110
4 16.0 0.088
5 20.0 0.074

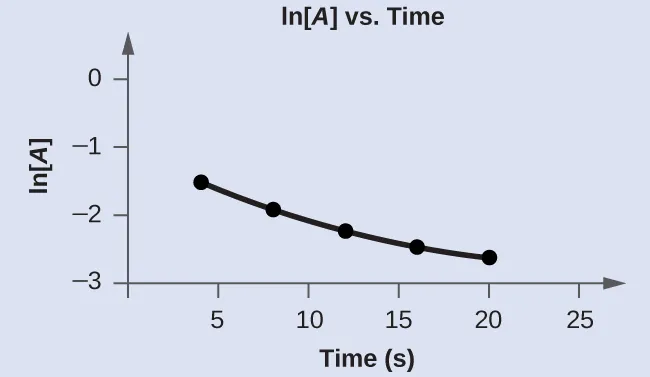

The plot of ln[A] vs. t is not a straight line. The equation is not first order:

## Second-Order Reactions

The equations that relate the concentrations of reactants and the rate constant of second-order reactions are fairly complicated. We will limit ourselves to the simplest second-order reactions, namely, those with rates that are dependent upon just one reactant’s concentration and described by the differential rate law:

$Rate=k[A]2Rate=k[A]2$
12.64

For these second-order reactions, the integrated rate law is:

$1[A]=kt+1[A]01[A]=kt+1[A]0$
12.65

where the terms in the equation have their usual meanings as defined earlier.

## Example 12.8

### The Integrated Rate Law for a Second-Order Reaction

The reaction of butadiene gas (C4H6) with itself produces C8H12 gas as follows:
$2C4H6(g)⟶C8H12(g)2C4H6(g)⟶C8H12(g)$
12.66

The reaction is second order with a rate constant equal to 5.76 $××$ 10−2 L/mol/min under certain conditions. If the initial concentration of butadiene is 0.200 M, what is the concentration remaining after 10.0 min?

### Solution

We use the integrated form of the rate law to answer questions regarding time. For a second-order reaction, we have:
$1[A]=kt+1[A]01[A]=kt+1[A]0$
12.67

We know three variables in this equation: [A]0 = 0.200 mol/L, k = 5.76 $××$ 10−2 L/mol/min, and t = 10.0 min. Therefore, we can solve for [A], the fourth variable:

12.68

Therefore 0.179 mol/L of butadiene remain at the end of 10.0 min, compared to the 0.200 mol/L that was originally present.

If the initial concentration of butadiene is 0.0200 M, what is the concentration remaining after 20.0 min?

0.0195 mol/L

The integrated rate law for our second-order reactions has the form of the equation of a straight line:

$1[A]=kt+1[A]0y=mx+b1[A]=kt+1[A]0y=mx+b$
12.69

A plot of $1[A]1[A]$ versus t for a second-order reaction is a straight line with a slope of k and an intercept of $1[A]0.1[A]0.$ If the plot is not a straight line, then the reaction is not second order.

## Example 12.9

### Determination of Reaction Order by Graphing

The data below are for the same reaction described in Example 12.8. Test these data to confirm that this dimerization reaction is second-order.

### Solution

Trial Time (s) [C4H6] (M)
1 0 1.00 $××$ 10−2
2 1600 5.04 $××$ 10−3
3 3200 3.37 $××$ 10−3
4 4800 2.53 $××$ 10−3
5 6200 2.08 $××$ 10−3

In order to distinguish a first-order reaction from a second-order reaction, we plot ln[C4H6] versus t and compare it with a plot of $1[C4H6]1[C4H6]$ versus t. The values needed for these plots follow.

Time (s) $1[C4H6](M−1)1[C4H6](M−1)$ ln[C4H6]
0 100 −4.605
1600 198 −5.289
3200 296 −5.692
4800 395 −5.978
6200 481 −6.175

The plots are shown in Figure 12.11. As you can see, the plot of ln[C4H6] versus t is not linear, therefore the reaction is not first order. The plot of $1[C4H6]1[C4H6]$ versus t is linear, indicating that the reaction is second order.

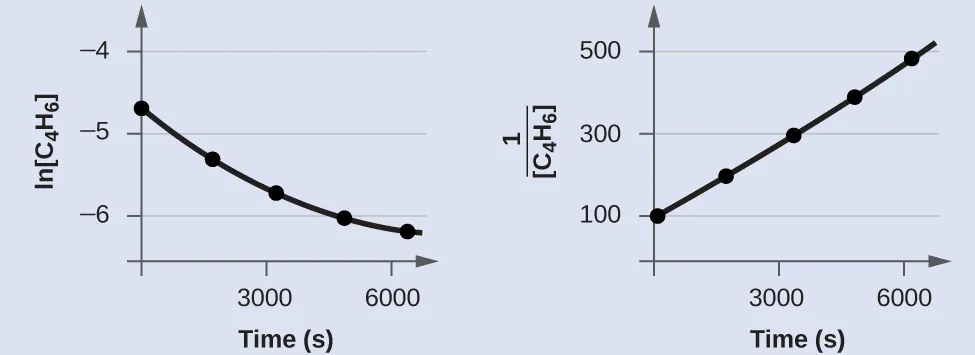

Figure 12.11 These two graphs show first- and second-order plots for the dimerization of C4H6. Since the first-order plot (left) is not linear, we know that the reaction is not first order. The linear trend in the second-order plot (right) indicates that the reaction follows second-order kinetics.

Does the following data fit a second-order rate law?
Trial Time (s) [A] (M)
1 5 0.952
2 10 0.625
3 15 0.465
4 20 0.370
5 25 0.308
6 35 0.230

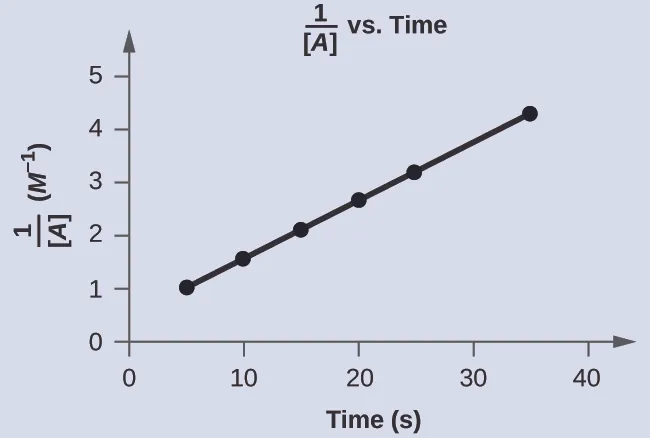

Yes. The plot of $1[A]1[A]$ vs. t is linear:

## Zero-Order Reactions

For zero-order reactions, the differential rate law is:

$Rate=k[A]0=kRate=k[A]0=k$
12.70

A zero-order reaction thus exhibits a constant reaction rate, regardless of the concentration of its reactants.

The integrated rate law for a zero-order reaction also has the form of the equation of a straight line:

$[A]=−kt+[A]0y=mx+b[A]=−kt+[A]0y=mx+b$
12.71

A plot of [A] versus t for a zero-order reaction is a straight line with a slope of −k and an intercept of [A]0. Figure 12.12 shows a plot of [NH3] versus t for the decomposition of ammonia on a hot tungsten wire and for the decomposition of ammonia on hot quartz (SiO2). The decomposition of NH3 on hot tungsten is zero order; the plot is a straight line. The decomposition of NH3 on hot quartz is not zero order (it is first order). From the slope of the line for the zero-order decomposition, we can determine the rate constant:

$slope=−k=1.3110−6mol/L/sslope=−k=1.3110−6mol/L/s$
12.72

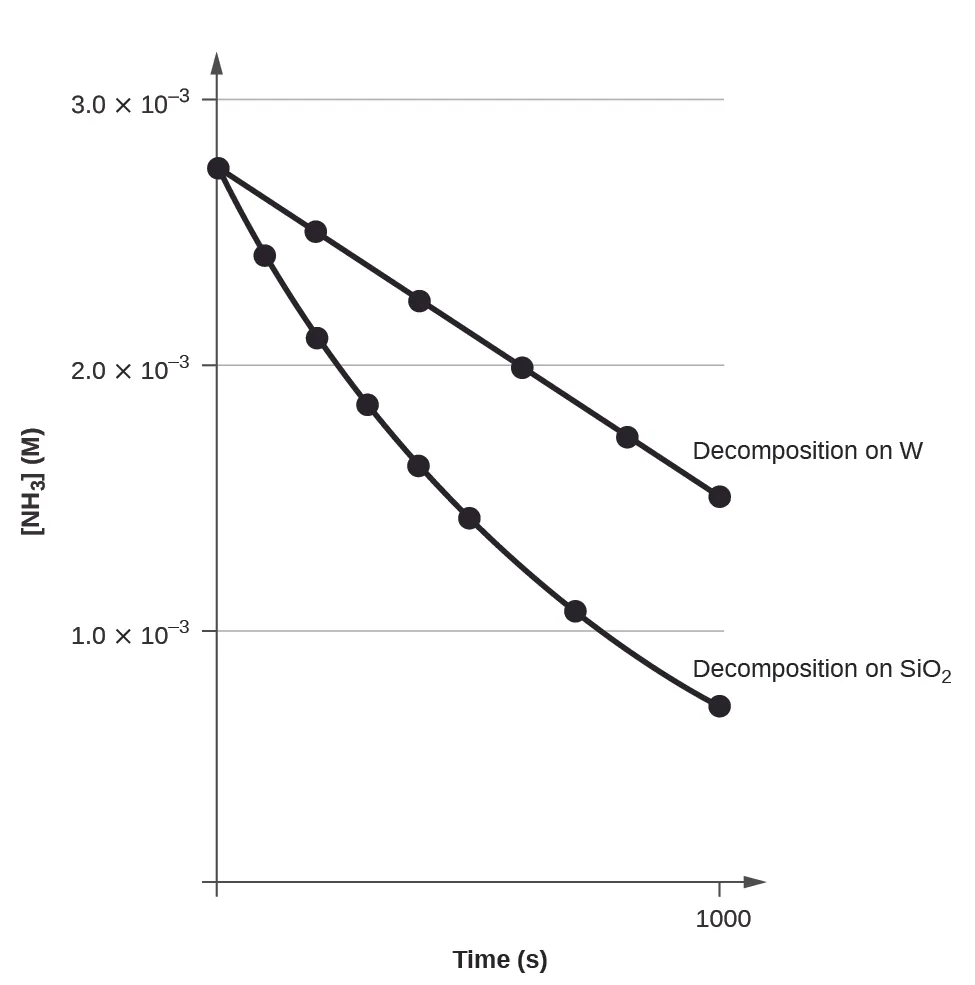

Figure 12.12 The decomposition of NH3 on a tungsten (W) surface is a zero-order reaction, whereas on a quartz (SiO2) surface, the reaction is first order.

## The Half-Life of a Reaction

The half-life of a reaction (t1/2) is the time required for one-half of a given amount of reactant to be consumed. In each succeeding half-life, half of the remaining concentration of the reactant is consumed. Using the decomposition of hydrogen peroxide (Figure 12.2) as an example, we find that during the first half-life (from 0.00 hours to 6.00 hours), the concentration of H2O2 decreases from 1.000 M to 0.500 M. During the second half-life (from 6.00 hours to 12.00 hours), it decreases from 0.500 M to 0.250 M; during the third half-life, it decreases from 0.250 M to 0.125 M. The concentration of H2O2 decreases by half during each successive period of 6.00 hours. The decomposition of hydrogen peroxide is a first-order reaction, and, as can be shown, the half-life of a first-order reaction is independent of the concentration of the reactant. However, half-lives of reactions with other orders depend on the concentrations of the reactants.

### First-Order Reactions

We can derive an equation for determining the half-life of a first-order reaction from the alternate form of the integrated rate law as follows:

$ln[A]0[A]=ktt=ln[A]0[A]×1kln[A]0[A]=ktt=ln[A]0[A]×1k$
12.73

If we set the time t equal to the half-life, $t1/2,t1/2,$ the corresponding concentration of A at this time is equal to one-half of its initial concentration. Hence, when $t=t1/2,t=t1/2,$ $[A]=12[A]0.[A]=12[A]0.$

Therefore:

$t1/2=ln[A]012[A]0×1k=ln2×1k=0.693×1kt1/2=ln[A]012[A]0×1k=ln2×1k=0.693×1k$
12.74

Thus:

$t1/2=0.693kt1/2=0.693k$
12.75

We can see that the half-life of a first-order reaction is inversely proportional to the rate constant k. A fast reaction (shorter half-life) will have a larger k; a slow reaction (longer half-life) will have a smaller k.

## Example 12.10

### Calculation of a First-order Rate Constant using Half-Life

Calculate the rate constant for the first-order decomposition of hydrogen peroxide in water at 40 °C, using the data given in Figure 12.13.

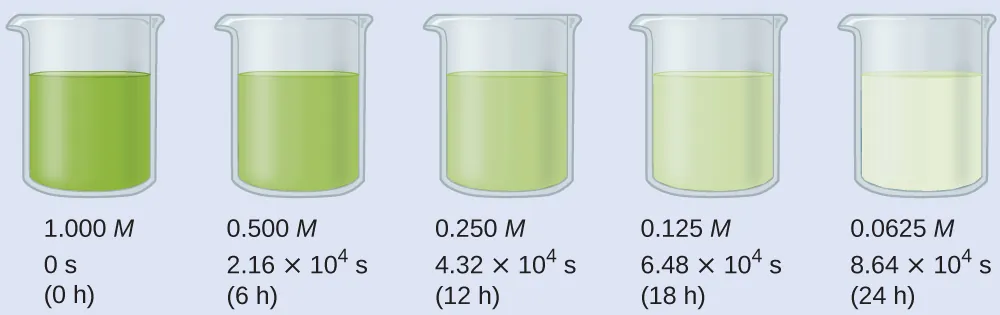

Figure 12.13 The decomposition of H2O2 $(2H2O2⟶2H2O+O2)(2H2O2⟶2H2O+O2)$ at 40 °C is illustrated. The intensity of the color symbolizes the concentration of H2O2 at the indicated times; H2O2 is actually colorless.

### Solution

The half-life for the decomposition of H2O2 is 2.16 $××$ 104 s:
$t1/2=0.693kk=0.693t1/2=0.6932.16×104s=3.21×10−5s−1t1/2=0.693kk=0.693t1/2=0.6932.16×104s=3.21×10−5s−1$
12.76

The first-order radioactive decay of iodine-131 exhibits a rate constant of 0.138 d−1. What is the half-life for this decay?

5.02 d.

### Second-Order Reactions

We can derive the equation for calculating the half-life of a second order as follows:

$1[A]=kt+1[A]01[A]=kt+1[A]0$
12.77

or

$1[A]−1[A]0=kt1[A]−1[A]0=kt$
12.78

If

$t=t1/2t=t1/2$
12.79

then

$[A]=12[A]0[A]=12[A]0$
12.80

and we can write:

$112[A]0−1[A]0=kt1/22[A]0−1[A]0=kt1/21[A]0=kt1/2112[A]0−1[A]0=kt1/22[A]0−1[A]0=kt1/21[A]0=kt1/2$
12.81

Thus:

$t1/2=1k[A]0t1/2=1k[A]0$
12.82

For a second-order reaction, $t1/2t1/2$ is inversely proportional to the concentration of the reactant, and the half-life increases as the reaction proceeds because the concentration of reactant decreases. Consequently, we find the use of the half-life concept to be more complex for second-order reactions than for first-order reactions. Unlike with first-order reactions, the rate constant of a second-order reaction cannot be calculated directly from the half-life unless the initial concentration is known.

### Zero-Order Reactions

We can derive an equation for calculating the half-life of a zero order reaction as follows:

$[A]=−kt+[A]0[A]=−kt+[A]0$
12.83

When half of the initial amount of reactant has been consumed $t=t1/2t=t1/2$ and $[A]=[A]02.[A]=[A]02.$ Thus:

$[A]02=−kt1/2+[A]0kt1/2=[A]02[A]02=−kt1/2+[A]0kt1/2=[A]02$
12.84

and

$t1/2=[A]02kt1/2=[A]02k$
12.85

The half-life of a zero-order reaction increases as the initial concentration increases.

Equations for both differential and integrated rate laws and the corresponding half-lives for zero-, first-, and second-order reactions are summarized in Table 12.2.

Summary of Rate Laws for Zero-, First-, and Second-Order Reactions
Zero-Order First-Order Second-Order
rate law rate = k rate = k[A] rate = k[A]2
units of rate constant M s−1 s−1 M−1 s−1
integrated rate law [A] = −kt + [A]0 ln[A] = −kt + ln[A]0 $1[A]=kt+(1[A]0)1[A]=kt+(1[A]0)$
plot needed for linear fit of rate data [A] vs. t ln[A] vs. t $1[A]1[A]$ vs. t
relationship between slope of linear plot and rate constant k = −slope k = −slope k = +slope
half-life $t1/2=[A]02kt1/2=[A]02k$ $t1/2=0.693kt1/2=0.693k$ $t1/2=1[A]0kt1/2=1[A]0k$
Table 12.2
