Learning Objectives

By the end of this section, you will be able to:

Describe the fundamental aspects of titrations and gravimetric analysis.
Perform stoichiometric calculations using typical titration and gravimetric data.

In the 18th century, the strength (actually the concentration) of vinegar samples was determined by noting the amount of potassium carbonate, K₂CO₃, which had to be added, a little at a time, before bubbling ceased. The greater the weight of potassium carbonate added to reach the point where the bubbling ended, the more concentrated the vinegar.

We now know that the effervescence that occurred during this process was due to reaction with acetic acid, CH₃CO₂H, the compound primarily responsible for the odor and taste of vinegar. Acetic acid reacts with potassium carbonate according to the following equation:

2 {CH}_{3} {CO}_{2} H (a q) + K_{2} {CO}_{3} (s) ⟶ {2 CH}_{3} {CO}_{2} K (a q) + {CO}_{2} (g) + H_{2} O (l)

7.102

The bubbling was due to the production of CO₂.

The test of vinegar with potassium carbonate is one type of quantitative analysis—the determination of the amount or concentration of a substance in a sample. In the analysis of vinegar, the concentration of the solute (acetic acid) was determined from the amount of reactant that combined with the solute present in a known volume of the solution. In other types of chemical analyses, the amount of a substance present in a sample is determined by measuring the amount of product that results.

Titration

The described approach to measuring vinegar strength was an early version of the analytical technique known as titration analysis. A typical titration analysis involves the use of a buret (Figure 7.15) to make incremental additions of a solution containing a known concentration of some substance (the titrant) to a sample solution containing the substance whose concentration is to be measured (the analyte). The titrant and analyte undergo a chemical reaction of known stoichiometry, and so measuring the volume of titrant solution required for complete reaction with the analyte (the equivalence point of the titration) allows calculation of the analyte concentration. The equivalence point of a titration may be detected visually if a distinct change in the appearance of the sample solution accompanies the completion of the reaction. The halt of bubble formation in the classic vinegar analysis is one such example, though, more commonly, special dyes called indicators are added to the sample solutions to impart a change in color at or very near the equivalence point of the titration. Equivalence points may also be detected by measuring some solution property that changes in a predictable way during the course of the titration. Regardless of the approach taken to detect a titration’s equivalence point, the volume of titrant actually measured is called the end point. Properly designed titration methods typically ensure that the difference between the equivalence and end points is negligible. Though any type of chemical reaction may serve as the basis for a titration analysis, the three described in this chapter (precipitation, acid-base, and redox) are most common. Additional details regarding titration analysis are provided in the chapter on acid-base equilibria.

Two pictures are shown. In a, a person is shown pouring a liquid from a small beaker into a buret. The person is wearing goggles and gloves as she transfers the solution into the buret. In b, a close up view of the markings on the side of the buret is shown. The markings for 10, 15, and 20 are clearly shown with horizontal rings printed on the buret. Between each of these whole number markings, half markings are also clearly shown with horizontal line segment markings.

Figure 7.15 (a) A student fills a buret in preparation for a titration analysis. (b) A typical buret permits volume measurements to the nearest 0.01 mL. (credit a: modification of work by Mark Blaser and Matt Evans; credit b: modification of work by Mark Blaser and Matt Evans)

Example 7.14

Titration Analysis

The end point in a titration of a 50.00-mL sample of aqueous HCl was reached by addition of 35.23 mL of 0.250 M NaOH titrant. The titration reaction is:

HCl (a q) + NaOH (a q) ⟶ NaCl (a q) + H_{2} O (l)

7.103

What is the molarity of the HCl?

Solution

As for all reaction stoichiometry calculations, the key issue is the relation between the molar amounts of the chemical species of interest as depicted in the balanced chemical equation. The approach outlined in previous modules of this chapter is followed, with additional considerations required, since the amounts of reactants provided and requested are expressed as solution concentrations.

For this exercise, the calculation will follow the following outlined steps:

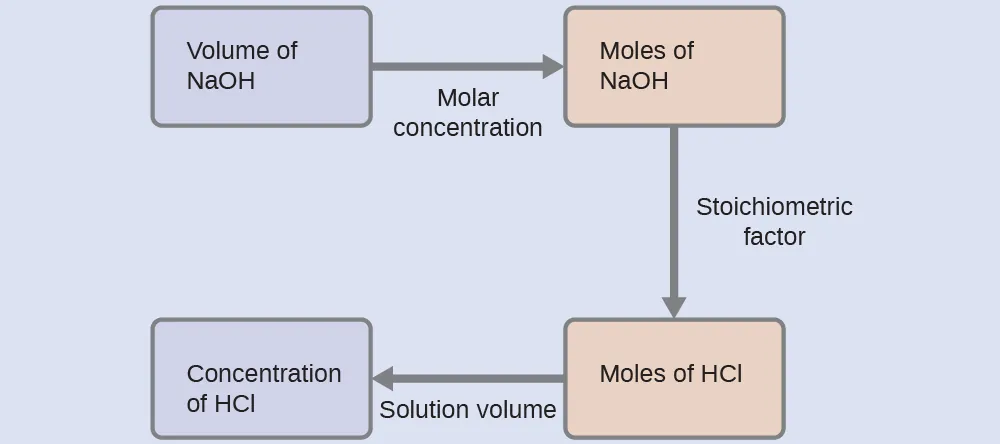

This figure shows four rectangles. The first is shaded lavender and is labeled, “Volume of N a O H.” This rectangle is followed by an arrow pointing right which is labeled, “Molar concentration,” to a second rectangle. This second rectangle is shaded pink and is labeled, “Moles of N a O H.” This rectangle is followed by an arrow pointing right which is labeled, “Stoichiometric factor,” to a third rectangle which is shaded pink and is labeled, “Moles of H C l.” This rectangle is followed by an arrow labeled, “Solution volume,” which points right to a fourth rectangle. This fourth rectangle is shaded lavender and is labeled, “Concentration of H C l.”

The molar amount of HCl is calculated to be:

35.23 mL NaOH \times \frac{1 L}{1000 mL} \times \frac{0.250 mol NaOH}{1 L} \times \frac{1 mol HCl}{1 mol NaOH} = 8.81 \times 10^{−3} mol HCl

7.104

Using the provided volume of HCl solution and the definition of molarity, the HCl concentration is:

\begin{array}{l} M = \frac{mol HCl}{L solution} \\ M = \frac{8.81 \times 10^{−3} mol HCl}{50.00 mL \times \frac{1 L}{1000 mL}} \\ M = 0.176 M \end{array}

7.105

Note: For these types of titration calculations, it is convenient to recognize that solution molarity is also equal to the number of millimoles of solute per milliliter of solution:

M = \frac{mol solute}{L solution} \times \frac{\frac{10^{3} mmol}{mol}}{\frac{10^{3} mL}{L}} = \frac{mmol solute}{mL solution}

7.106

Using this version of the molarity unit will shorten the calculation by eliminating two conversion factors:

\frac{35.23 mL NaOH \times \frac{0.250 mmol NaOH}{mL NaOH} \times \frac{1 mmol HCl}{1 mmol NaOH}}{50.00 mL solution} = 0.176 M HCl

7.107

Check Your Learning

A 20.00-mL sample of aqueous oxalic acid, H₂C₂O₄, was titrated with a 0.09113-M solution of potassium permanganate, KMnO₄.

{2MnO}_{4}^{−} (a q) + 5 H_{2} C_{2} O_{4} (a q) + 6 H^{+} (a q) ⟶ 10 {CO}_{2} (g) + 2 {Mn}^{2+} (a q) + 8 H_{2} O (l)

7.108

A volume of 23.24 mL was required to reach the end point. What is the oxalic acid molarity?

Answer:

0.2648 M

Gravimetric Analysis

A gravimetric analysis is one in which a sample is subjected to some treatment that causes a change in the physical state of the analyte that permits its separation from the other components of the sample. Mass measurements of the sample, the isolated analyte, or some other component of the analysis system, used along with the known stoichiometry of the compounds involved, permit calculation of the analyte concentration. Gravimetric methods were the first techniques used for quantitative chemical analysis, and they remain important tools in the modern chemistry laboratory.

The required change of state in a gravimetric analysis may be achieved by various physical and chemical processes. For example, the moisture (water) content of a sample is routinely determined by measuring the mass of a sample before and after it is subjected to a controlled heating process that evaporates the water. Also common are gravimetric techniques in which the analyte is subjected to a precipitation reaction of the sort described earlier in this chapter. The precipitate is typically isolated from the reaction mixture by filtration, carefully dried, and then weighed (Figure 7.16). The mass of the precipitate may then be used, along with relevant stoichiometric relationships, to calculate analyte concentration.

A photo is shown of a flask and funnel used for filtration. The flask contains a slightly opaque liquid filtrate with a slight yellow tint. A funnel, which contains a bright yellow and orange material, sits atop the flask. The flask is held in place by a clamp and is connected to a vacuum line. The connection between the funnel and flask is sealed with a rubber bung or gasket.

Figure 7.16 Precipitate may be removed from a reaction mixture by filtration.

Example 7.15

Gravimetric Analysis

A 0.4550-g solid mixture containing MgSO₄ is dissolved in water and treated with an excess of Ba(NO₃)₂, resulting in the precipitation of 0.6168 g of BaSO₄.

{MgSO}_{4} (a q) + Ba {({NO}_{3})}_{2} (a q) ⟶ {BaSO}_{4} (s) + Mg {({NO}_{3})}_{2} (a q)

7.109

What is the concentration (mass percent) of MgSO₄ in the mixture?

Solution

The plan for this calculation is similar to others used in stoichiometric calculations, the central step being the connection between the moles of BaSO₄ and MgSO₄ through their stoichiometric factor. Once the mass of MgSO₄ is computed, it may be used along with the mass of the sample mixture to calculate the requested percentage concentration.

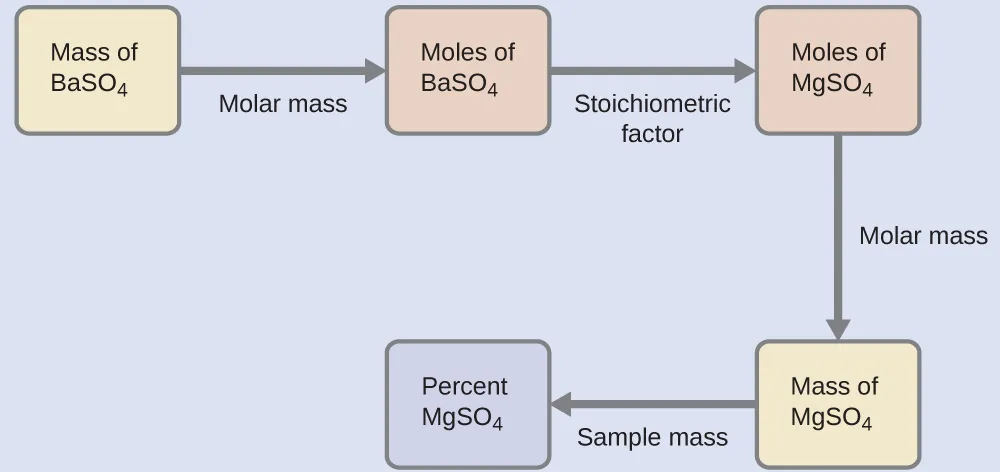

This figure shows five rectangles. The first is shaded yellow and is labeled “Mass of B a S O subscript 4.” This rectangle is followed by an arrow pointing right to a second rectangle. The arrow is labeled, “Molar mass.” The second rectangle is shaded pink and is labeled, “Moles of B a S O subscript 4.” This rectangle is followed by an arrow pointing right to a third rectangle. The arrow is labeled, “Stoichiometric factor.” This third rectangle is shaded pink and is labeled, “Moles of M g S O subscript 4.” This rectangle is followed by an arrow labeled, “Molar mass,” which points downward to a fourth rectangle. This fourth rectangle is shaded yellow and is labeled, “Mass of M g S O subscript 4.” This rectangle is followed by an arrow labeled, “Sample mass,” which points left to a fifth rectangle. This fifth rectangle is shaded lavender and is labeled, “Percent M g S O subscript 4.

The mass of MgSO₄ that would yield the provided precipitate mass is

0.6168 {g BaSO}_{4} \times \frac{1 {mol BaSO}_{4}}{233.43 {g BaSO}_{4}} \times \frac{1 {mol MgSO}_{4}}{1 {mol BaSO}_{4}} \times \frac{120.37 {g MgSO}_{4}}{1 {mol MgSO}_{4}} = 0.3181 {g MgSO}_{4}

7.110

The concentration of MgSO₄ in the sample mixture is then calculated to be

\begin{array}{l} {percent MgSO}_{4} = \frac{{mass MgSO}_{4}}{mass sample} \times 100 % \\ \frac{0.3181 g}{0.4550 g} \times 100 % = 69.91 % \end{array}

7.111

Check Your Learning

What is the percent of chloride ion in a sample if 1.1324 g of the sample produces 1.0881 g of AgCl when treated with excess Ag⁺?

{Ag}^{+} (a q) + {Cl}^{−} (a q) ⟶ AgCl (s)

7.112

Answer:

23.76%

The elemental composition of hydrocarbons and related compounds may be determined via a gravimetric method known as combustion analysis. In a combustion analysis, a weighed sample of the compound is heated to a high temperature under a stream of oxygen gas, resulting in its complete combustion to yield gaseous products of known identities. The complete combustion of hydrocarbons, for example, will yield carbon dioxide and water as the only products. The gaseous combustion products are swept through separate, preweighed collection devices containing compounds that selectively absorb each product (Figure 7.17). The mass increase of each device corresponds to the mass of the absorbed product and may be used in an appropriate stoichiometric calculation to derive the mass of the relevant element.

This diagram shows an arrow pointing from O subscript 2 into a tube that leads into a vessel containing a red material, labeled “Sample.” This vessel is inside a blue container with a red inner lining which is labeled “Furnace.” An arrow points from the tube to the right into the vessel above the red sample material. An arrow leads out of this vessel through a tube into a second vessel outside the furnace. An line points from this tube to a label above the diagram that reads “C O subscript 2, H subscript 2 O, O subscript 2, and other gases.” Many small green spheres are visible in the second vessel which is labeled below, “H subscript 2 O absorber such as M g ( C l O subscript 4 ) subscript 2.” An arrow points to the right through the vessel, and another arrow points right heading out of the vessel through a tube into a third vessel. The third vessel contains many small blue spheres. It is labeled “C O subscript 2 absorber such as N a O H.” An arrow points right through this vessel, and a final arrow points out of a tube at the right end of the vessel. Outside the end of this tube at the end of the arrow is the label, “O subscript 2 and other gases.”

Figure 7.17 This schematic diagram illustrates the basic components of a combustion analysis device for determining the carbon and hydrogen content of a sample.

Example 7.16

Combustion Analysis

Polyethylene is a hydrocarbon polymer used to produce food-storage bags and many other flexible plastic items. A combustion analysis of a 0.00126-g sample of polyethylene yields 0.00394 g of CO₂ and 0.00161 g of H₂O. What is the empirical formula of polyethylene?

Solution

The primary assumption in this exercise is that all the carbon in the sample combusted is converted to carbon dioxide, and all the hydrogen in the sample is converted to water:

C_{x} H_{y} (s) + {excess O}_{2} (g) ⟶ x {CO}_{2} (g) + \frac{y}{2} H_{2} O (g)

7.113

Note that a balanced equation is not necessary for the task at hand. To derive the empirical formula of the compound, only the subscripts x and y are needed.

First, calculate the molar amounts of carbon and hydrogen in the sample, using the provided masses of the carbon dioxide and water, respectively. With these molar amounts, the empirical formula for the compound may be written as described in the previous chapter of this text. An outline of this approach is given in the following flow chart:

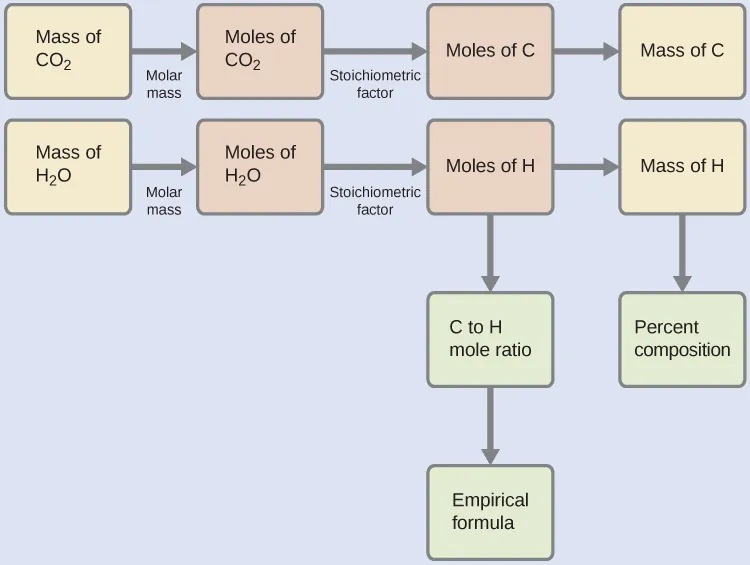

This figure shows two flowcharts. The first row is a single flow chart. In this row, a rectangle at the left is shaded yellow and is labeled, “Mass of C O subscript 2.” This rectangle is followed by an arrow pointing right to a second rectangle. The arrow is labeled, “Molar mass.” The second rectangle is shaded pink and is labeled, “Moles of C O subscript 2.” This rectangle is followed by an arrow pointing right to a third rectangle. The arrow is labeled, “Stoichiometric factor.” The third rectangle is shaded pink and is labeled, “Moles of C.” This rectangle is followed by an arrow labeled “Molar mass” which points right to a fourth rectangle. The fourth rectangle is shaded yellow and is labeled “Mass of C.” Below, is a second flowchart. It begins with a yellow shaded rectangle on the left which is labeled, “Mass of H subscript 2 O.” This rectangle is followed by an arrow labeled, “Molar mass,” which points right to a second rectangle. The second rectangle is shaded pink and is labeled, “Moles of H subscript 2 O.” This rectangle is followed by an arrow pointing right to a third rectangle. The arrow is labeled, “Stoichiometric factor.” The third rectangle is shaded pink and is labeled “Moles of H.” This rectangle is followed to the right by an arrow labeled, “Molar mass,” which points to a fourth rectangle. The fourth rectangle is shaded yellow and is labeled “Mass of H.” An arrow labeled, “Sample mass” points down beneath this rectangle to a green shaded rectangle. This rectangle is labeled, “Percent composition.” An arrow extends beneath the pink rectangle labeled, “Moles of H,” to a green shaded rectangle labeled, “C to H mole ratio.” Beneath this rectangle, an arrow extends to a second green shaded rectangle which is labeled, “Empirical formula.”

\begin{array}{l} mol C = 0.00394 {g CO}_{2} \times \frac{1 {mol CO}_{2}}{44.01 g} \times \frac{1 mol C}{1 {mol CO}_{2}} = 8.95 \times 10^{- 5} mol C \\ mol H = 0.00161 {g H}_{2} O \times \frac{1 {mol H}_{2} O}{18.02 g} \times \frac{2 mol H}{1 {mol H}_{2} O} = 1.79 \times 10^{- 4} mol H \end{array}

7.114

The empirical formula for the compound is then derived by identifying the smallest whole-number multiples for these molar amounts. The H-to-C molar ratio is

\frac{mol H}{mol C} = \frac{1.79 \times 10^{−4} mol H}{8.95 \times 10^{−5} mol C} = \frac{2 mol H}{1 mol C}

7.115

and the empirical formula for polyethylene is CH₂.

Check Your Learning

A 0.00215-g sample of polystyrene, a polymer composed of carbon and hydrogen, produced 0.00726 g of CO₂ and 0.00148 g of H₂O in a combustion analysis. What is the empirical formula for polystyrene?

Answer:

CH
