By the end of this section, you will be able to:
  • Explain the relations between potential, free energy change, and equilibrium constants
  • Perform calculations involving the relations between cell potentials, free energy changes, and equilibrium
  • Use the Nernst equation to determine cell potentials under nonstandard conditions

So far in this chapter, the relationship between the cell potential and reaction spontaneity has been described, suggesting a link to the free energy change for the reaction (see chapter on thermodynamics). The interpretation of potentials as measures of oxidant strength was presented, bringing to mind similar measures of acid-base strength as reflected in equilibrium constants (see the chapter on acid-base equilibria). This section provides a summary of the relationships between potential and the related thermodynamic properties ΔG and K.

E° and ΔG°

The standard free energy change of a process, ΔG°, was defined in a previous chapter as the maximum work that could be performed by a system, wmax. In the case of a redox reaction taking place within a galvanic cell under standard state conditions, essentially all the work is associated with transferring the electrons from reductant-to-oxidant, welec:

ΔG°=wmax=welecΔG°=wmax=welec

The work associated with transferring electrons is determined by the total amount of charge (coulombs) transferred and the cell potential:

ΔG°=welec=nFEcell°ΔG°=nFEcell°ΔG°=welec=nFEcell°ΔG°=nFEcell°

where n is the number of moles of electrons transferred, F is Faraday’s constant, and E°cell is the standard cell potential. The relation between free energy change and standard cell potential confirms the sign conventions and spontaneity criteria previously discussed for both of these properties: spontaneous redox reactions exhibit positive potentials and negative free energy changes.

E° and K

Combining a previously derived relation between ΔG° and K (see the chapter on thermodynamics) and the equation above relating ΔG° and E°cell yields the following:

ΔG°=RTlnK=nFEcell°Ecell°=(RTnF)lnKΔG°=RTlnK=nFEcell°Ecell°=(RTnF)lnK

This equation indicates redox reactions with large (positive) standard cell potentials will proceed far towards completion, reaching equilibrium when the majority of reactant has been converted to product. A summary of the relations between E°, ΔG° and K is depicted in Figure 16.7, and a table correlating reaction spontaneity to values of these properties is provided in Table 16.2.

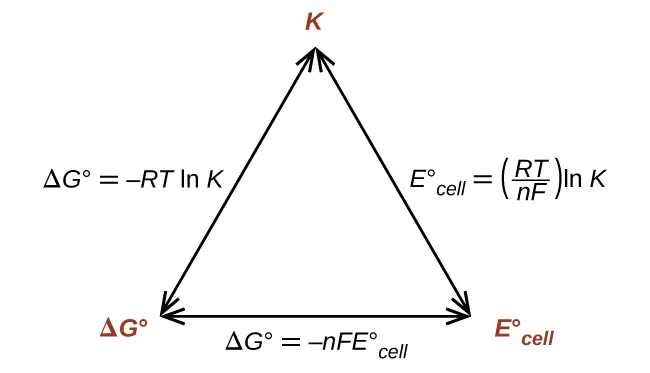

A diagram is shown that involves three double headed arrows positioned in the shape of an equilateral triangle. The vertices are labeled in red. The top vertex is labeled “K.“ The vertex at the lower left is labeled “delta G superscript degree symbol.” The vertex at the lower right is labeled “E superscript degree symbol subscript cell.” The right side of the triangle is labeled “E superscript degree symbol subscript cell equals ( R T divided by n  F ) l n K.” The lower side of the triangle is labeled “delta G superscript degree symbol equals negative n F E superscript degree symbol subscript cell.” The left side of the triangle is labeled “delta G superscript degree symbol equals negative R T l n K.”
Figure 16.7 Graphic depicting the relation between three important thermodynamic properties.
K ΔG° E°cell
> 1 < 0 > 0

Reaction is spontaneous under standard conditions

Products more abundant at equilibrium

< 1 > 0 < 0

Reaction is non-spontaneous under standard conditions

Reactants more abundant at equilibrium

= 1 = 0 = 0

Reaction is at equilibrium under standard conditions

Reactants and products equally abundant

Table 16.2

Example 16.6

Equilibrium Constants, Standard Cell Potentials, and Standard Free Energy Changes Use data from Appendix L to calculate the standard cell potential, standard free energy change, and equilibrium constant for the following reaction at 25 °C. Comment on the spontaneity of the forward reaction and the composition of an equilibrium mixture of reactants and products.

2Ag+(aq)+Fe(s)2Ag(s)+Fe2+(aq)2Ag+(aq)+Fe(s)2Ag(s)+Fe2+(aq)

Solution The reaction involves an oxidation-reduction reaction, so the standard cell potential can be calculated using the data in Appendix L.

anode (oxidation):Fe(s)Fe2+(aq)+2eEFe2+/Fe°=−0.447 Vcathode (reduction):2×(Ag+(aq)+eAg(s))EAg+/Ag°=0.7996 VEcell°=Ecathode°Eanode°=EAg+/Ag°EFe2+/Fe°=+1.247 Vanode (oxidation):Fe(s)Fe2+(aq)+2eEFe2+/Fe°=−0.447 Vcathode (reduction):2×(Ag+(aq)+eAg(s))EAg+/Ag°=0.7996 VEcell°=Ecathode°Eanode°=EAg+/Ag°EFe2+/Fe°=+1.247 V

With n = 2, the equilibrium constant is then

Ecell°=0.0592 VnlogK K=10n×Ecell°/0.0592 V K=102×1.247 V/0.0592 V K=1042.128 K=1.3×1042Ecell°=0.0592 VnlogK K=10n×Ecell°/0.0592 V K=102×1.247 V/0.0592 V K=1042.128 K=1.3×1042

The standard free energy is then

ΔG°=nFEcell° ΔG°=−2×96,485Cmol×1.247JC=−240.6kJmolΔG°=nFEcell° ΔG°=−2×96,485Cmol×1.247JC=−240.6kJmol

The reaction is spontaneous, as indicated by a negative free energy change and a positive cell potential. The K value is very large, indicating the reaction proceeds to near completion to yield an equilibrium mixture containing mostly products.

Check Your Learning What is the standard free energy change and the equilibrium constant for the following reaction at room temperature? Is the reaction spontaneous?

Sn(s)+2Cu2+(aq)Sn2+(aq)+2Cu+(aq)Sn(s)+2Cu2+(aq)Sn2+(aq)+2Cu+(aq)

Answer:

Spontaneous; n = 2; Ecell°=+0.291 V;Ecell°=+0.291 V; ΔG°=−56.2kJmol;ΔG°=−56.2kJmol; K = 6.8 ×× 109.

Potentials at Nonstandard Conditions: The Nernst Equation

Most of the redox processes that interest science and society do not occur under standard state conditions, and so the potentials of these systems under nonstandard conditions are a property worthy of attention. Having established the relationship between potential and free energy change in this section, the previously discussed relation between free energy change and reaction mixture composition can be used for this purpose.

ΔG=ΔG°+RTlnQΔG=ΔG°+RTlnQ

Notice the reaction quotient, Q, appears in this equation, making the free energy change dependent upon the composition of the reaction mixture. Substituting the equation relating free energy change to cell potential yields the Nernst equation:

nFEcell=nFEcell°+RTlnQnFEcell=nFEcell°+RTlnQ
Ecell=Ecell°RTnFlnQEcell=Ecell°RTnFlnQ

This equation describes how the potential of a redox system (such as a galvanic cell) varies from its standard state value, specifically, showing it to be a function of the number of electrons transferred, n, the temperature, T, and the reaction mixture composition as reflected in Q. A convenient form of the Nernst equation for most work is one in which values for the fundamental constants (R and F) and a factor converting from natural to base-10 logarithms have been included:

Ecell=Ecell°0.0592VnlnQEcell=Ecell°0.0592VnlnQ

Example 16.7

Predicting Redox Spontaneity Under Nonstandard Conditions Use the Nernst equation to predict the spontaneity of the redox reaction shown below.

Co(s)+Fe2+(aq,1.94M)Co2+(aq, 0.15M)+Fe(s)Co(s)+Fe2+(aq,1.94M)Co2+(aq, 0.15M)+Fe(s)

Solution Collecting information from Appendix L and the problem,

Anode (oxidation):Co(s)Co2+(aq)+2eECo2+/Co°=−0.28 VCathode (reduction):Fe2+(aq)+2eFe(s)EFe2+/Fe°=−0.447 VEcell°=Ecathode°Eanode°=−0.447 V(−0.28 V)=−0.17 VAnode (oxidation):Co(s)Co2+(aq)+2eECo2+/Co°=−0.28 VCathode (reduction):Fe2+(aq)+2eFe(s)EFe2+/Fe°=−0.447 VEcell°=Ecathode°Eanode°=−0.447 V(−0.28 V)=−0.17 V

Notice the negative value of the standard cell potential indicates the process is not spontaneous under standard conditions. Substitution of the Nernst equation terms for the nonstandard conditions yields:

Q=[Co2+][Fe2+]=0.15M1.94M=0.077 Ecell=Ecell°0.0592 VnlogQ Ecell=−0.17 V0.0592 V2log0.077 Ecell=−0.17 V+0.033 V=−0.14 VQ=[Co2+][Fe2+]=0.15M1.94M=0.077 Ecell=Ecell°0.0592 VnlogQ Ecell=−0.17 V0.0592 V2log0.077 Ecell=−0.17 V+0.033 V=−0.14 V

The cell potential remains negative (slightly) under the specified conditions, and so the reaction remains nonspontaneous.

Check Your Learning For the cell schematic below, identify values for n and Q, and calculate the cell potential, Ecell.

Al(s)Al3+(aq,0.15M)Cu2+(aq,0.025M)Cu(s)Al(s)Al3+(aq,0.15M)Cu2+(aq,0.025M)Cu(s)

Answer:

n = 6; Q = 1440; Ecell = +1.97 V, spontaneous.

A concentration cell is constructed by connecting two nearly identical half-cells, each based on the same half-reaction and using the same electrode, varying only in the concentration of one redox species. The potential of a concentration cell, therefore, is determined only by the difference in concentration of the chosen redox species. The example problem below illustrates the use of the Nernst equation in calculations involving concentration cells.

Example 16.8

Concentration Cells What is the cell potential of the concentration cell described by

Zn(s)Zn2+(aq, 0.10M)Zn2+(aq, 0.50M)Zn(s)Zn(s)Zn2+(aq, 0.10M)Zn2+(aq, 0.50M)Zn(s)

Solution From the information given:

Anode:Zn(s)Zn2+(aq, 0.10M)+2eEanode°=−0.7618 VCathode:Zn2+(aq, 0.50M)+2eZn(s)Ecathode°=−0.7618 V¯Overall:Zn2+(aq, 0.50M)Zn2+(aq, 0.10M)Ecell°=0.000 VAnode:Zn(s)Zn2+(aq, 0.10M)+2eEanode°=−0.7618 VCathode:Zn2+(aq, 0.50M)+2eZn(s)Ecathode°=−0.7618 V¯Overall:Zn2+(aq, 0.50M)Zn2+(aq, 0.10M)Ecell°=0.000 V

Substituting into the Nernst equation,

Ecell=0.000 V0.0592 V2log0.100.50=+0.021 VEcell=0.000 V0.0592 V2log0.100.50=+0.021 V

The positive value for cell potential indicates the overall cell reaction (see above) is spontaneous. This spontaneous reaction is one in which the zinc ion concentration in the cathode falls (it is reduced to elemental zinc) while that in the anode rises (it is produced by oxidation of the zinc anode). A greater driving force for zinc reduction is present in the cathode, where the zinc(II) ion concentration is greater (Ecathode > Eanode).

Check Your Learning The concentration cell above was allowed to operate until the cell reaction reached equilibrium. What are the cell potential and the concentrations of zinc(II) in each half-cell for the cell now?

Answer:

Ecell = 0.000 V; [Zn2+]cathode = [Zn2+]anode = 0.30 M

Citation/Attribution

Want to cite, share, or modify this book? This book is Creative Commons Attribution License 4.0 and you must attribute OpenStax.

Attribution information
  • If you are redistributing all or part of this book in a print format, then you must include on every physical page the following attribution:
    Access for free at https://openstax.org/books/chemistry-atoms-first-2e/pages/1-introduction
  • If you are redistributing all or part of this book in a digital format, then you must include on every digital page view the following attribution:
    Access for free at https://openstax.org/books/chemistry-atoms-first-2e/pages/1-introduction
Citation information

© Feb 14, 2019 OpenStax. Textbook content produced by OpenStax is licensed under a Creative Commons Attribution License 4.0 license. The OpenStax name, OpenStax logo, OpenStax book covers, OpenStax CNX name, and OpenStax CNX logo are not subject to the Creative Commons license and may not be reproduced without the prior and express written consent of Rice University.
