Paul Flowers; Klaus Theopold; Richard Langley; William R. Robinson, PhD

Learning Objectives

By the end of this section, you will be able to:

Explain the relations between potential, free energy change, and equilibrium constants
Perform calculations involving the relations between cell potentials, free energy changes, and equilibrium
Use the Nernst equation to determine cell potentials under nonstandard conditions

So far in this chapter, the relationship between the cell potential and reaction spontaneity has been described, suggesting a link to the free energy change for the reaction (see chapter on thermodynamics). The interpretation of potentials as measures of oxidant strength was presented, bringing to mind similar measures of acid-base strength as reflected in equilibrium constants (see the chapter on acid-base equilibria). This section provides a summary of the relationships between potential and the related thermodynamic properties ΔG and K.

E° and ΔG°

The standard free energy change of a process, ΔG°, was defined in a previous chapter as the maximum work that could be performed by a system, w_max. In the case of a redox reaction taking place within a galvanic cell under standard state conditions, essentially all the work is associated with transferring the electrons from reductant-to-oxidant, w_elec:

Δ G ° = w_{max} = w_{elec}

The work associated with transferring electrons is determined by the total amount of charge (coulombs) transferred and the cell potential:

\begin{matrix} Δ G ° = w_{elec} & = & − n F E_{cell}^{°} \\ Δ G ° & = & − n F E_{cell}^{°} \end{matrix}

where n is the number of moles of electrons transferred, F is Faraday’s constant, and E°_cell is the standard cell potential. The relation between free energy change and standard cell potential confirms the sign conventions and spontaneity criteria previously discussed for both of these properties: spontaneous redox reactions exhibit positive potentials and negative free energy changes.

E° and K

Combining a previously derived relation between ΔG° and K (see the chapter on thermodynamics) and the equation above relating ΔG° and E°_cell yields the following:

\begin{matrix} Δ G ° & = & − R T ln K = − n F E_{cell}^{°} \\ E_{cell}^{°} & = & (\frac{R T}{n F}) ln K \end{matrix}

This equation indicates redox reactions with large (positive) standard cell potentials will proceed far towards completion, reaching equilibrium when the majority of reactant has been converted to product. A summary of the relations between E°, ΔG° and K is depicted in Figure 17.7, and a table correlating reaction spontaneity to values of these properties is provided in Table 17.2.

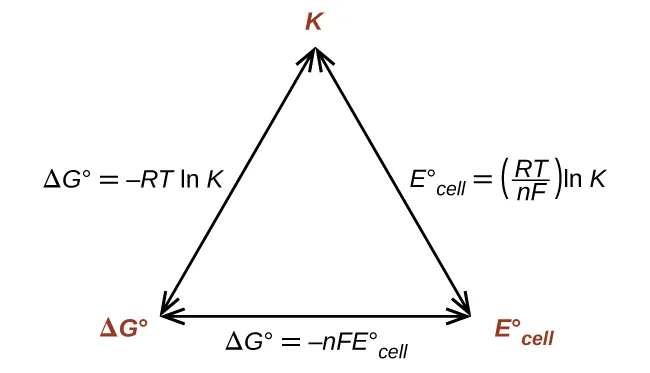

A diagram is shown that involves three double headed arrows positioned in the shape of an equilateral triangle. The vertices are labeled in red. The top vertex is labeled “K.“ The vertex at the lower left is labeled “delta G superscript degree symbol.” The vertex at the lower right is labeled “E superscript degree symbol subscript cell.” The right side of the triangle is labeled “E superscript degree symbol subscript cell equals ( R T divided by n F ) l n K.” The lower side of the triangle is labeled “delta G superscript degree symbol equals negative n F E superscript degree symbol subscript cell.” The left side of the triangle is labeled “delta G superscript degree symbol equals negative R T l n K.”

Figure 17.7 Graphic depicting the relation between three important thermodynamic properties.

K	ΔG°	E°_cell
> 1	< 0	> 0	Reaction is spontaneous under standard conditions Products more abundant at equilibrium
< 1	> 0	< 0	Reaction is non-spontaneous under standard conditions Reactants more abundant at equilibrium
= 1	= 0	= 0	Reaction is at equilibrium under standard conditions Reactants and products equally abundant

Table 17.2

Example 17.6

Equilibrium Constants, Standard Cell Potentials, and Standard Free Energy Changes

Use data from Appendix L to calculate the standard cell potential, standard free energy change, and equilibrium constant for the following reaction at 25 °C. Comment on the spontaneity of the forward reaction and the composition of an equilibrium mixture of reactants and products.

2 {Ag}^{+} (a q) + Fe (s) ⇌ 2Ag (s) + {Fe}^{2+} (a q)

Solution

The reaction involves an oxidation-reduction reaction, so the standard cell potential can be calculated using the data in Appendix L.

\begin{matrix} anode (oxidation): & Fe (s) ⟶ {Fe}^{2+} (a q) + {2e}^{−} & E_{{Fe}^{2+} /Fe}^{°} & = & −0.447 V \\ cathode (reduction): & 2 \times ({Ag}^{+} (a q) + e^{−} ⟶ Ag (s)) & E_{{Ag}^{+} /Ag}^{°} & = & 0.7996 V \\ E_{cell}^{°} = E_{cathode}^{°} - E_{anode}^{°} = & E_{{Ag}^{+} /Ag}^{°} - E_{{Fe}^{2+} /Fe}^{°} & = & +1.247 V \end{matrix}

With n = 2, the equilibrium constant is then

\begin{matrix} E_{cell}^{°} & = & \frac{0.0592 V}{n} log K \\ K & = & 10^{n \times E_{cell}^{°} / 0.0592 V} \\ K & = & 10^{2 \times 1.247 V/0.0592 V} \\ K & = & 10^{42.128} \\ K & = & 1.3 \times 10^{42} \end{matrix}

The standard free energy is then

\begin{matrix} Δ G^{°} & = & − n F E_{cell}^{°} \\ Δ G ° & = & −2 \times 96,485 \frac{C}{mol} \times 1.247 \frac{J}{C} = −240.6 \frac{kJ}{mol} \end{matrix}

The reaction is spontaneous, as indicated by a negative free energy change and a positive cell potential. The K value is very large, indicating the reaction proceeds to near completion to yield an equilibrium mixture containing mostly products.

Check Your Learning

What is the standard free energy change and the equilibrium constant for the following reaction at room temperature? Is the reaction spontaneous?

Sn (s) + 2 {Cu}^{2+} (a q) ⇌ {Sn}^{2+} (a q) + 2 {Cu}^{+} (a q)

Answer:

Spontaneous; n = 2; $E_{cell}^{°} = +0.291 V;$ $Δ G ° = −56.2 \frac{kJ}{mol};$ K = 6.8 $\times$ 10⁹.

Potentials at Nonstandard Conditions: The Nernst Equation

Most of the redox processes that interest science and society do not occur under standard state conditions, and so the potentials of these systems under nonstandard conditions are a property worthy of attention. Having established the relationship between potential and free energy change in this section, the previously discussed relation between free energy change and reaction mixture composition can be used for this purpose.

Δ G = Δ G ° + R T ln Q

Notice the reaction quotient, Q, appears in this equation, making the free energy change dependent upon the composition of the reaction mixture. Substituting the equation relating free energy change to cell potential yields the Nernst equation:

− n F E_{cell} = − n F E_{cell}^{°} + R T ln Q

E_{cell} = E_{cell}^{°} - \frac{R T}{n F} ln Q

This equation describes how the potential of a redox system (such as a galvanic cell) varies from its standard state value, specifically, showing it to be a function of the number of electrons transferred, n, the temperature, T, and the reaction mixture composition as reflected in Q. A convenient form of the Nernst equation for most work is one in which values for the fundamental constants (R and F) and standard temperature (298) K), along with a factor converting from natural to base-10 logarithms, have been included:

E_{cell} = E_{cell}^{°} - \frac{0.0592 V}{n} log Q

Example 17.7

Predicting Redox Spontaneity Under Nonstandard Conditions

Use the Nernst equation to predict the spontaneity of the redox reaction shown below.

Co (s) + {Fe}^{2+} (a q, 1.94 M) ⟶ {Co}^{2+} (a q, 0.15 M) + Fe (s)

Solution

Collecting information from Appendix L and the problem,

\begin{matrix} Anode (oxidation): & Co (s) ⟶ {Co}^{2+} (a q) + {2e}^{−} & E_{{Co}^{2+} /Co}^{°} & = & −0.28 V \\ Cathode (reduction): & {Fe}^{2+} (a q) + {2e}^{−} ⟶ Fe (s) & E_{{Fe}^{2+} /Fe}^{°} & = & −0.447 V \\ E_{cell}^{°} = E_{cathode}^{°} - E_{anode}^{°} = & −0.447 V - (−0.28 V) & = & −0.17 V \end{matrix}

Notice the negative value of the standard cell potential indicates the process is not spontaneous under standard conditions. Substitution of the Nernst equation terms for the nonstandard conditions yields:

\begin{matrix} Q & = & \frac{{[Co}^{2+}]}{{[Fe}^{2+}]} = \frac{0.15 M}{1.94 M} = 0.077 \\ E_{cell} & = & E_{cell}^{°} - \frac{0.0592 V}{n} log Q \\ E_{cell} & = & −0.1 7 V - \frac{0.0592 V}{2} log 0.077 \\ E_{cell} & = & −0.17 V + 0.033 V = −0.14 V \end{matrix}

The cell potential remains negative (slightly) under the specified conditions, and so the reaction remains nonspontaneous.

Check Your Learning

For the cell schematic below, identify values for n and Q, and calculate the cell potential, E_cell.

Al (s) │ {Al}^{3+} (a q, 0.15 M) ║ {Cu}^{2+} (a q, 0.025 M) │ Cu (s)

Answer:

n = 6; Q = 1440; E_cell = +1.97 V, spontaneous.

A concentration cell is constructed by connecting two nearly identical half-cells, each based on the same half-reaction and using the same electrode, varying only in the concentration of one redox species. The potential of a concentration cell, therefore, is determined only by the difference in concentration of the chosen redox species. The example problem below illustrates the use of the Nernst equation in calculations involving concentration cells.

Example 17.8

Concentration Cells

What is the cell potential of the concentration cell described by

Zn (s) │ {Zn}^{2+} (a q, 0.10 M) ║ {Zn}^{2+} (a q, 0.50 M) │ Zn (s)

Solution

From the information given:

\begin{matrix} \underline{\begin{matrix} Anode: & Zn (s) ⟶ {Zn}^{2+} (a q, 0.10 M) + {2e}^{−} & E_{anode}^{°} & = & −0.7618 V \\ Cathode: & {Zn}^{2+} (a q, 0.50 M) + {2e}^{−} ⟶ Zn (s) & E_{cathode}^{°} & = & −0.7618 V \end{matrix}} \\ \begin{matrix} Overall: & {Zn}^{2+} (a q, 0.50 M) ⟶ {Zn}^{2+} (a q, 0.10 M) & E_{cell}^{°} & = & 0.000 V \end{matrix} \end{matrix}

Substituting into the Nernst equation,

E_{cell} = 0.000 V - \frac{0.0592 V}{2} log \frac{0.10}{0.50} = +0.021 V

The positive value for cell potential indicates the overall cell reaction (see above) is spontaneous. This spontaneous reaction is one in which the zinc ion concentration in the cathode falls (it is reduced to elemental zinc) while that in the anode rises (it is produced by oxidation of the zinc anode). A greater driving force for zinc reduction is present in the cathode, where the zinc(II) ion concentration is greater (E_cathode > E_anode).

Check Your Learning

The concentration cell above was allowed to operate until the cell reaction reached equilibrium. What are the cell potential and the concentrations of zinc(II) in each half-cell for the cell now?

Answer:

E_cell = 0.000 V; [Zn²⁺]_cathode = [Zn²⁺]_anode = 0.30 M
