Learning Objectives

In this section, you will explore the following questions:

What are the reactions in the Calvin cycle described as the light-independent reactions?
Why does the term “carbon fixation” describe the products of the Calvin cycle?
What is the role of photosynthesis in the energy cycle of all living organisms?

Connection for AP^® Courses

The free energy stored in ATP and NADPH produced in the light-dependent reactions is used to power the chemical reactions of the light-independent reactions or Calvin cycle, which can occur during both the day and night. In the Calvin cycle, an enzyme called ribulose biphosphate carboxylase (RuBisCO), catalyzes a reaction with CO₂ and another molecule called ribulose biphosphate (RuBP) that is regenerated from a previous Calvin cycle. After a series of chemical reactions, the carbon from carbon dioxide in the atmosphere is “fixed” into carbohydrates, specifically a three-carbon molecule called glyceraldehydes-3-phosphate (G3P). (Again, count the carbons as we explore the Calvin cycle.) After three turns of the cycle, a three-carbon molecule of G3P leaves the cycle to become part of a carbohydrate molecule. The remaining G3P molecules stay in the cycle to be regenerated into RuBP, which is then ready to react with more incoming CO₂. In other words, the cell generates a stockpile of G3P to be assembled into organic molecules, including carbohydrates. Each step of the Calvin cycle is catalyzed by specific enzymes. (You do not have to memorize the reactions of the Calvin cycle; however, if provided with a diagram of the cycle, you should be able to interpret it.) Some plants evolved chemical modifications to more efficiently trap CO₂ if environmental conditions limit its availability. For example, when it’s hot outside, plants tend to keep their stomata closed to prevent excessive water loss; when the outside temperature cools, stomata open and plants take in CO₂ and use a more efficient system to feed it into the Calvin cycle.

As we explored in Overview of Photosynthesis, photosynthesis forms an energy link with cellular respiration. Plants need both photosynthesis and respiration in order to conduct metabolic processes during both light and dark times. Therefore, plant cells contain both chloroplasts and mitochondria.

Information presented and the examples highlighted in the section, support concepts and learning objectives outlined in Big Idea 2 of the AP^® Biology Curriculum Framework, as shown in the table. The learning objectives listed in the Curriculum Framework provide a transparent foundation for the AP^® Biology course, an inquiry-based laboratory experience, instructional activities, and AP^® exam questions. A learning objective merges required content with one or more of the seven science practices.

Big Idea 2	Biological systems utilize free energy and molecular building blocks to grow, to reproduce, and to maintain dynamic homeostasis.
Enduring Understanding 2.A	Growth, reproduction and maintenance of living systems require free energy and matter.
Essential Knowledge	2.A.2 Light energy captured in photosynthesis is stored in carbohydrates produced during the Calvin cycle.
Science Practice	1.4 The student can use representations and models to analyze situations or solve problems qualitatively and quantitatively.
Learning Objective	2.4 The student is able to use representations to pose scientific questions about what mechanisms and structural features allow organisms to capture, store, and use free energy.
Essential Knowledge	2.A.2 Light energy captured in photosynthesis is stored in carbohydrates produced during the Calvin cycle
Science Practice	6.2 The student can construct explanations of phenomena based on evidence produced through scientific practices.
Learning Objective	2.5 The student is able to construct explanations of the mechanisms and structural features of cells that allow organisms to capture, store, or use free energy.

Teacher Support

As with the light dependent reactions, obtain detailed diagrams of the Calvin cycle, such as Figure 8.18 and “walk” the students through it. Emphasize the roles of ATP and NADPH and where they enter and leave the pathway. Explain why the Calvin Cycle makes lots of G3P, but not all of it is used to make other carbohydrates. What happens to the rest? Why are all three stages of the cycle necessary?

This is a good time to discuss the evolution of photosynthesis. Ask if it is possible to have the capture of energy without the release of oxygen? Could this have happened on Earth? Why would the release of oxygen be beneficial to organisms? Was it a good idea for all of the organisms living at that time?

The light-independent reactions or Calvin cycle are not really independent of light. They depend on the earlier reactions to supply ATP and NADPH in order to proceed. This pathway makes the storage and transport form of energy used by nearly every living organism, sugars. It does not make glucose directly, but a chemical that is also an intermediate in cellular respiration, glyceraldehyde-3-phosphate (G3P). This can be used to make a variety of biologically important compounds, including glucose.

The Science Practice Challenge Questions contain additional test questions for this section that will help you prepare for the AP exam. These questions address the following standards:
[APLO 2.5][APLO 2.11][APLO 4.17]

The Calvin Cycle

After the energy from the sun is converted into chemical energy and temporarily stored in ATP and NADPH molecules, the cell has the fuel needed to build carbohydrate molecules for long-term energy storage. The products of the light-dependent reactions, ATP and NADPH, have lifespans in the range of millionths of seconds, whereas the products of the light-independent reactions (carbohydrates and other forms of reduced carbon) can survive for hundreds of millions of years. The carbohydrate molecules made will have a backbone of carbon atoms. Where does the carbon come from? It comes from carbon dioxide, the gas that is a waste product of respiration in microbes, fungi, plants, and animals.

In plants, carbon dioxide (CO₂) enters the leaves through stomata, where it diffuses over short distances through intercellular spaces until it reaches the mesophyll cells. Once in the mesophyll cells, CO₂ diffuses into the stroma of the chloroplast—the site of light-independent reactions of photosynthesis. These reactions actually have several names associated with them. Another term, the Calvin cycle, is named for the man who discovered it, and because these reactions function as a cycle. Others call it the Calvin-Benson cycle to include the name of another scientist involved in its discovery. The most outdated name is dark reactions, because light is not directly required (Figure 8.18). However, the term dark reaction can be misleading because it implies incorrectly that the reaction only occurs at night or is independent of light, which is why most scientists and instructors no longer use it.

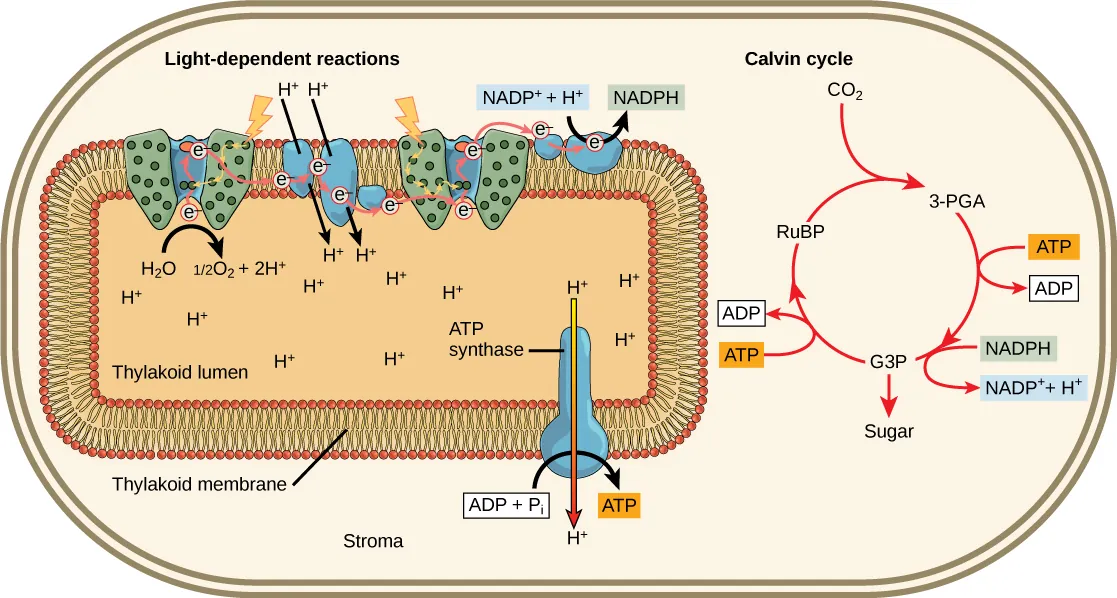

This illustration shows that ATP and NADPH produced in the light reactions are used in the Calvin cycle to make sugar.

Figure 8.18 Light reactions harness energy from the sun to produce chemical bonds, ATP, and NADPH. These energy-carrying molecules are made in the stroma where carbon fixation takes place.

The light-independent reactions of the Calvin cycle can be organized into three basic stages: fixation, reduction, and regeneration.

Stage 1: Fixation

In the stroma, in addition to CO₂,two other components are present to initiate the light-independent reactions: an enzyme called ribulose-1,5-bisphosphate carboxylase/oxygenase (RuBisCO), and three molecules of ribulose bisphosphate (RuBP), as shown in Figure 8.19. RuBP has five atoms of carbon, flanked by two phosphates.

Visual Connection

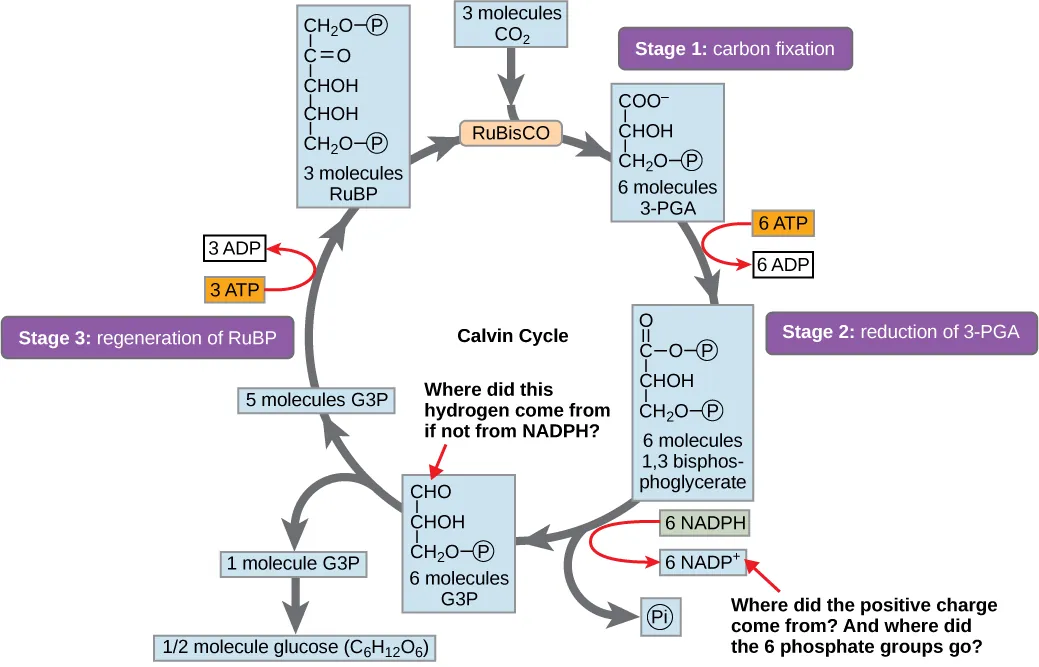

A diagram of the Calvin cycle is shown with its three stages: carbon fixation, 3-PGA reduction, and regeneration of RuBP. In stage 1, the enzyme RuBisCO adds a carbon dioxide to the five-carbon molecule RuBP, producing two three-carbon 3-PGA molecules. In stage 2, two NADPH and two ATP are used to reduce 3-PGA to G3P. In stage 3 RuBP is regenerated from G3P. One ATP is used in the process. Three complete cycles produces one new G3P, which is shunted out of the cycle and made into glucose (C6H12O6).

Figure 8.19 The Calvin cycle has three stages. In stage 1, the enzyme RuBisCO incorporates carbon dioxide into an organic molecule, 3-PGA. In stage 2, the organic molecule is reduced using electrons supplied by NADPH. In stage 3, RuBP, the molecule that starts the cycle, is regenerated so that the cycle can continue. Only one carbon dioxide molecule is incorporated at a time, so the cycle must be completed three times to produce a single three-carbon G3P molecule, and six times to produce a six-carbon glucose molecule.

Refer to Figure 8.19

Which of the following statements is true?

In photosynthesis, oxygen, carbon dioxide, ATP and NADPH are reactants. G3P and water are products.
In photosynthesis, chlorophyll, water and carbon dioxide are reactants. G3P and oxygen are products.
In photosynthesis, water, carbon dioxide, ATP and NADPH are reactants. RuBP and oxygen are products.
In photosynthesis, water and carbon dioxide are reactants. G3P and oxygen are products.

RuBisCO catalyzes a reaction between CO₂ and RuBP. For each CO₂ molecule that reacts with one RuBP, two molecules of another compound (3-PGA) form. PGA has three carbons and one phosphate. Each turn of the cycle involves only one RuBP and one carbon dioxide and forms two molecules of 3-PGA. The number of carbon atoms remains the same, as the atoms move to form new bonds during the reactions (3 atoms from 3CO₂ + 15 atoms from 3RuBP = 18 atoms in 3 atoms of 3-PGA). This process is called carbon fixation, because CO₂ is “fixed” from an inorganic form into organic molecules.

Stage 2: Reduction

ATP and NADPH are used to convert the six molecules of 3-PGA into six molecules of a chemical called glyceraldehyde 3-phosphate (G3P). That is a reduction reaction because it involves the gain of electrons by 3-PGA. Recall that a reduction is the gain of an electron by an atom or molecule. Six molecules of both ATP and NADPH are used. For ATP, energy is released with the loss of the terminal phosphate atom, converting it into ADP; for NADPH, both energy and a hydrogen atom are lost, converting it into NADP⁺. Both of these molecules return to the nearby light-dependent reactions to be reused and reenergized.

Stage 3: Regeneration

Interestingly, at this point, only one of the G3P molecules leaves the Calvin cycle and is sent to the cytoplasm to contribute to the formation of other compounds needed by the plant. Because the G3P exported from the chloroplast has three carbon atoms, it takes three “turns” of the Calvin cycle to fix enough net carbon to export one G3P. But each turn makes two G3Ps, thus three turns make six G3Ps. One is exported while the remaining five G3P molecules remain in the cycle and are used to regenerate RuBP, which enables the system to prepare for more CO₂ to be fixed. Three more molecules of ATP are used in these regeneration reactions.

Link to Learning

This link leads to an animation of the Calvin cycle. Click stage 1, stage 2, and then stage 3 to see G3P and ATP regenerate to form RuBP.

Evaluate the processes in photosynthesis and respiration that take place as a cycle of reactions. Use your understanding of specific reactions to explain why the process of producing glucose in plants is a cycle.

Three RuBP molecules get converted to three G3P, and two G3P molecules with the help of three ATPs are converted back to three molecules of RuBP.
Three RuBP molecules get converted to five G3P, and three G3P molecules with the help of three ATPs are converted back to three molecules of RuBP.
Three RuBP molecules get converted to six G3P, and five G3P molecules with the help of three ATPs are converted back to three molecules of RuBP.
Three RuBP molecules get converted to six G3P, and four G3P molecules with the help of five ATPs are converted back to three molecules of RuBP.

Evolution Connection

Photosynthesis

This photo shows short, round prickly cacti growing in cracks in a rock.

Figure 8.20 The harsh conditions of the desert have led plants like these cacti to evolve variations of the light-independent reactions of photosynthesis. These variations increase the efficiency of water usage, helping to conserve water and energy. (credit: Piotr Wojtkowski)

Refer to Photosynthesis

Which of the following events is associated with the development of oxygenic photosynthesis?

Photosynthetic organisms began to use NADPH and ATP as an energy source.
Photosynthetic organisms evolved from single-celled bacteria into multicellular plants.
Photosynthetic organisms began to use two photosystems instead of one.
Photosynthetic organisms began to use light reactions as well as dark reactions.

The Energy Flow

Whether the organism is a bacterium, plant, or animal, all living things access energy by breaking down carbohydrate molecules. But if plants make carbohydrate molecules, why would they need to break them down, especially when it has been shown that the gas organisms release as a “waste product” (CO₂) acts as a substrate for the formation of more food in photosynthesis? Remember, living things need energy to perform life functions. In addition, an organism can either make its own food or eat another organism—either way, the food still needs to be broken down. Finally, in the process of breaking down food, called cellular respiration, heterotrophs release needed energy and produce “waste” in the form of CO₂ gas.

In nature, there is no such thing as waste. Every single atom of matter and energy is conserved, recycling over and over infinitely. Substances change form or move from one type of molecule to another, but their constituent atoms never disappear. (Figure 1.21 is an illustrative example of this process.)

CO₂ is no more a form of waste than oxygen is wasteful to photosynthesis. Both are byproducts of reactions that move on to other reactions. Photosynthesis absorbs light energy to build carbohydrates in chloroplasts, and aerobic cellular respiration releases energy by using oxygen to metabolize carbohydrates in the cytoplasm and mitochondria. Both processes use electron transport chains to capture the energy necessary to drive other reactions. These two powerhouse processes, photosynthesis and cellular respiration, function in biological, cyclical harmony to allow organisms to access life-sustaining energy that originates millions of miles away in a burning star humans call the sun.

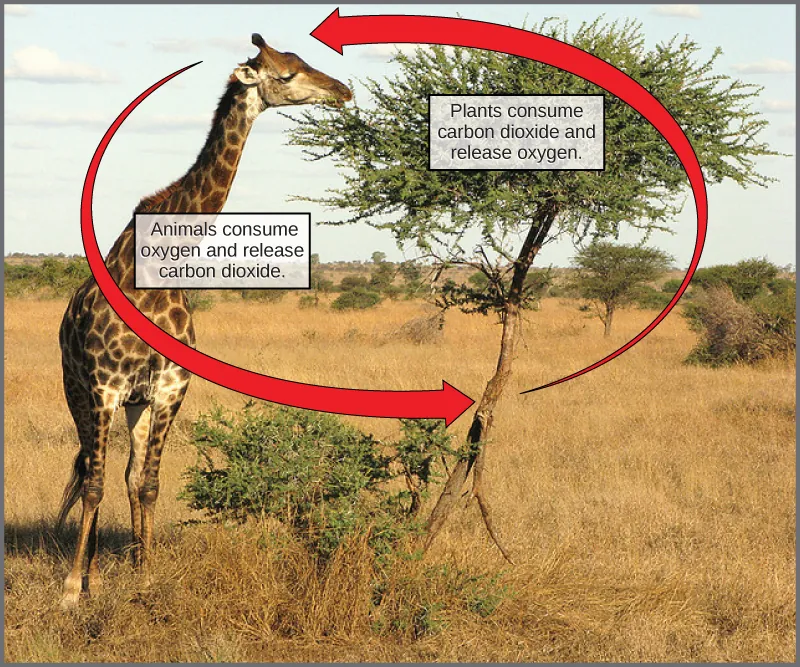

This photograph shows a giraffe eating leaves from a tree. Labels indicate that the giraffe consumes oxygen and releases carbon dioxide, whereas the tree consumes carbon dioxide and releases oxygen.

Figure 8.21 Photosynthesis consumes carbon dioxide and produces oxygen. Aerobic respiration consumes oxygen and produces carbon dioxide. These two processes play an important role in the carbon cycle. (credit: modification of work by Stuart Bassil)

Everyday Connection for AP® Courses

Photosynthesis and aerobic respiration are interrelated in important ways. During photosynthesis, plants take in carbon dioxide and water. The water molecule is split, the oxygen is released into the atmosphere, and the carbon dioxide is used to build carbohydrates. During aerobic respiration, organisms take in water and oxygen for respiration and produce carbon dioxide.

The Earth did not contain oxygen in its atmosphere throughout much of its history, even after life on Earth had already began. It did, however, contain carbon dioxide. What does this suggest about when photosynthetic organisms evolved, relative to non-photosynthetic organisms, and why?

Photosynthetic organisms evolved before non-photosynthetic organisms, because no oxygen was present in the atmosphere when life began.
Photosynthetic organisms evolved after non-photosynthetic organisms, because no oxygen was present in the atmosphere when life began.
Non-photosynthetic organisms evolved before photosynthetic organisms, because no oxygen was present in the atmosphere when life began.
Photosynthetic organisms evoloved before non-photosynthetic organisms, because no carbon dioxide was present in the atmosphere when life began.

Science Practice Connection for AP® Courses

Activity

Create a model or diagram to show the links between photosynthesis and cellular respiration.

Think About It

What cellular features and processes are similar in both respiration and photosynthesis?

Teacher Support

This activity and question are applications of Learning Objective 2.4 and science practices 1.4 and 3.1 because students are creating and using a representation to explore the link between photosynthesis and cellular respiration, two processes that organisms use to capture, store, and use free energy.

Possible answer:

Search for free images that show what the model or diagram should look like here or here.
Both cellular respiration and photosynthesis occur in/on double-membrane organelles in the cell. Both processes use electron carriers to shuttle electrons to and between membrane proteins that pump protons. The pumping of protons creates an electrochemical gradient that drives the synthesis of ATP.
