In this section, you will explore the following questions:
- What is “energy”?
- What is the difference between kinetic and potential energy?
- What is free energy, and how does free energy related to activation energy?
- What is the difference between endergonic and exergonic reactions?
Connection for AP® Courses
Although cells and organisms require free energy to survive, they cannot spontaneously create energy, as stated in the Law of Conservation of Energy. Energy is available in different forms. For example, objects in motion possess kinetic energy, whereas objects that are not in motion possess potential energy. The chemical energy in molecules, such as glucose, is potential energy because when bonds break in chemical reactions, free energy is released. Free energy is a measure of energy that is available to do work. The free energy of a system changes during energy transfers such as chemical reactions, and this change is referred to as ΔG or Gibbs free energy. The ΔG of a reaction can be negative or positive, depending on whether the reaction releases energy (exergonic) or requires energy input (endergonic). All reactions require an input of energy called activation energy in order to reach the transition state at which they will proceed. (In another section, we will explore how enzymes speed up chemical reactions by lowering activation energy barriers.)
Information presented and the examples highlighted in the section support concepts and Learning Objectives outlined in Big Idea 2 of the AP® Biology Curriculum Framework. The Learning Objectives listed in the Curriculum Framework provide a transparent foundation for the AP® Biology course, an inquiry-based laboratory experience, instructional activities, and AP® Exam questions. A Learning Objective merges required content with one or more of the seven Science Practices.
|Big Idea 2||Biological systems utilize free energy and molecular building blocks to grow, to reproduce, and to maintain dynamic homeostasis.|
|Enduring Understanding 2.A||Growth, reproduction and maintenance of living systems require free energy and matter.|
|Essential Knowledge||2.A.1 All living systems require constant input of free energy.|
|Science Practice||6.2 The student can construct explanations of phenomena based on evidence produced through scientific practices.|
|Learning Objective||2.1 The student is able to explain how biological systems use free energy based on empirical data that all organisms require constant energy input to maintain organization, to grow, and to reproduce.|
|Essential Knowledge||2.A.1 All living systems require constant input of free energy.|
|Science Practice||6.2 The student can justify claims with evidence.|
|Learning Objective||2.2 The student is able to justify a scientific claim that free energy is required for living systems to maintain organization, to grow or to reproduce, but that multiple strategies exist in different living systems.|
The Science Practice Challenge Questions contain additional test questions for this section that will help you prepare for the AP exam. These questions address the following standards:
Energy is defined as the ability to do work. As you’ve learned, energy exists in different forms. For example, electrical energy, light energy, and heat energy are all different types of energy. While these are all familiar types of energy that one can see or feel, there is another type of energy that is much less tangible. This energy is associated with something as simple as an object held above the ground. In order to appreciate the way energy flows into and out of biological systems, it is important to understand more about the different types of energy that exist in the physical world.
Types of Energy
When an object is in motion, there is energy associated with that object. In the example of an airplane in flight, there is a great deal of energy associated with the motion of the airplane. This is because moving objects are capable of enacting a change, or doing work. Think of a wrecking ball. Even a slow-moving wrecking ball can do a great deal of damage to other objects. However, a wrecking ball that is not in motion is incapable of performing work. Energy associated with objects in motion is called kinetic energy. A speeding bullet, a walking person, the rapid movement of molecules in the air (which produces heat), and electromagnetic radiation like light all have kinetic energy.
Now what if that same motionless wrecking ball is lifted two stories above a car with a crane? If the suspended wrecking ball is unmoving, is there energy associated with it? The answer is yes. The suspended wrecking ball has energy associated with it that is fundamentally different from the kinetic energy of objects in motion. This form of energy results from the fact that there is the potential for the wrecking ball to do work. If it is released, indeed it would do work. Because this type of energy refers to the potential to do work, it is called potential energy. Objects transfer their energy between kinetic and potential in the following way: As the wrecking ball hangs motionless, it has 0 kinetic and 100 percent potential energy. Once it is released, its kinetic energy begins to increase because it builds speed due to gravity. At the same time, as it nears the ground, it loses potential energy. Somewhere mid-fall it has 50 percent kinetic and 50 percent potential energy. Just before it hits the ground, the ball has nearly lost its potential energy and has near-maximal kinetic energy. Other examples of potential energy include the energy of water held behind a dam (Figure 6.6), or a person about to skydive out of an airplane.

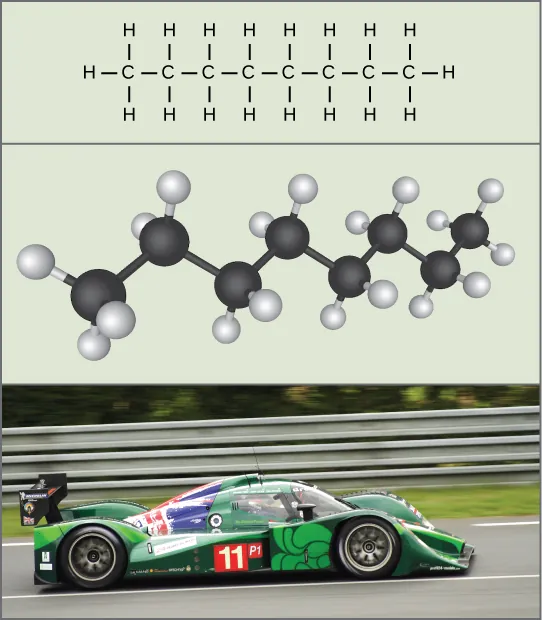

Potential energy is not only associated with the location of matter (such as a child sitting on a tree branch), but also with the structure of matter. A spring on the ground has potential energy if it is compressed; so does a rubber band that is pulled taut. The very existence of living cells relies heavily on structural potential energy. On a chemical level, the bonds that hold the atoms of molecules together have potential energy. Remember that anabolic cellular pathways require energy to synthesize complex molecules from simpler ones, and catabolic pathways release energy when complex molecules are broken down. The fact that energy can be released by the breakdown of certain chemical bonds implies that those bonds have potential energy. In fact, there is potential energy stored within the bonds of all the food molecules we eat, which is eventually harnessed for use. This is because these bonds can release energy when broken. The type of potential energy that exists within chemical bonds, and is released when those bonds are broken, is called chemical energy (Figure 6.7). Chemical energy is responsible for providing living cells with energy from food. The release of energy is brought about by breaking the molecular bonds within fuel molecules.
Draw examples from the class of potential vs. kinetic energy. Have several prepared before hand. If there are only a few examples given, ask the students which category your examples fall into. Include examples of chemical energy, such as the hand warmers that depend on chemical release of heat, gasoline, and gunpowder. End with the chemical energy in ATP, emphasizing it is a type of potential energy, and its role in metabolism.
Visit this site and select “A simple pendulum” on the menu (under “Harmonic Motion”) to see the shifting kinetic (K) and potential energy (U) of a pendulum in motion.
- Kinetic energy increases when the child swings downward; potential energy increases when the child swings upward.
- Kinetic energy decreases when the child swings downward; potential energy decreases when the child swings upward.
- Kinetic energy increases when the child swings upward; potential energy increases when the child swings downward.
- Kinetic energy increases when the child swings downward; potential energy increases when the child swings downward.
After learning that chemical reactions release energy when energy-storing bonds are broken, an important next question is how is the energy associated with chemical reactions quantified and expressed? How can the energy released from one reaction be compared to that of another reaction? A measurement of free energy is used to quantitate these energy transfers. Free energy is called Gibbs free energy (abbreviated with the letter G) after Josiah Willard Gibbs, the scientist who developed the measurement. Recall that according to the second law of thermodynamics, all energy transfers involve the loss of some amount of energy in an unusable form such as heat, resulting in entropy. Gibbs free energy specifically refers to the energy associated with a chemical reaction that is available after entropy is accounted for. In other words, Gibbs free energy is usable energy, or energy that is available to do work.
Every chemical reaction involves a change in free energy, called delta G (∆G). The change in free energy can be calculated for any system that undergoes such a change, such as a chemical reaction. To calculate ∆G, subtract the amount of energy lost to entropy (denoted as ∆S) from the total energy change of the system. This total energy change in the system is called enthalpy and is denoted as ∆H . The formula for calculating ∆G is as follows, where the symbol T refers to absolute temperature in Kelvin (degrees Celsius + 273):
The standard free energy change of a chemical reaction is expressed as an amount of energy per mole of the reaction product (either in kilojoules or kilocalories, kJ/mol or kcal/mol; 1 kJ = 0.239 kcal) under standard pH, temperature, and pressure conditions. Standard pH, temperature, and pressure conditions are generally calculated at pH 7.0 in biological systems, 25 degrees Celsius, and 100 kilopascals (1 atm pressure), respectively. It is important to note that cellular conditions vary considerably from these standard conditions, and so standard calculated ∆G values for biological reactions will be different inside the cell.

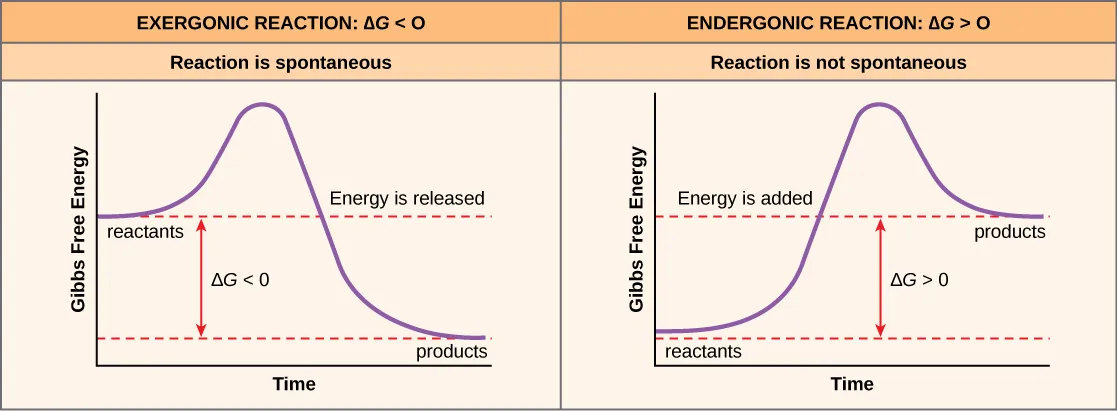

Endergonic Reactions and Exergonic Reactions
If energy is released during a chemical reaction, then the resulting value from the above equation will be a negative number. In other words, reactions that release energy have a ∆G < 0. A negative ∆G also means that the products of the reaction have less free energy than the reactants, because they gave off some free energy during the reaction. Reactions that have a negative ∆G and consequently release free energy are called exergonic reactions. Think: exergonic means energy is exiting the system. These reactions are also referred to as spontaneous reactions, because they can occur without the addition of energy into the system. Understanding which chemical reactions are spontaneous and release free energy is extremely useful for biologists, because these reactions can be harnessed to perform work inside the cell. An important distinction must be drawn between the term spontaneous and the idea of a chemical reaction that occurs immediately. Contrary to the everyday use of the term, a spontaneous reaction is not one that suddenly or quickly occurs. The rusting of iron is an example of a spontaneous reaction that occurs slowly, little by little, over time.
If a chemical reaction requires an input of energy rather than releasing energy, then the ∆G for that reaction will be a positive value. In this case, the products have more free energy than the reactants. Thus, the products of these reactions can be thought of as energy-storing molecules. These chemical reactions are called endergonic reactions, and they are non-spontaneous. An endergonic reaction will not take place on its own without the addition of free energy.
Let’s revisit the example of the synthesis and breakdown of the food molecule, glucose. Remember that the building of complex molecules, such as sugars, from simpler ones is an anabolic process and requires energy. Therefore, the chemical reactions involved in anabolic processes are endergonic reactions. On the other hand, the catabolic process of breaking sugar down into simpler molecules releases energy in a series of exergonic reactions. Like the example of rust above, the breakdown of sugar involves spontaneous reactions, but these reactions don’t occur instantaneously. Figure 6.8 shows some other examples of endergonic and exergonic reactions. Later sections will provide more information about what else is required to make even spontaneous reactions happen more efficiently.
Evaluate each of the processes shown in terms of the relationship between type of reaction and whether energy is stored or released. Decide for each if the process is endergonic or exergonic, and whether both enthalpy and entropy increase or decrease.
- (a) Compost pile decomposition is endergonic, enthalpy increases and entropy decreases. (b) A baby developing from an egg is an endergonic process, enthalpy decreases and entropy decreases. (c) Sand art being destroyed is exergonic, no change in enthalpy and entropy decreases. (d) A ball rolling downhill is an exergonic process, enthalpy decreases and entropy decreases.
- Compost pile decomposition is exergonic, enthalpy decreases and entropy decreases. (b) A baby developing from an egg is an endergonic process, enthalpy increases and entropy decreases. (c) Sand art being destroyed is exergonic, enthalpy increases and entropy increases. (d) A ball rolling downhill is an endergonic process, enthalpy decreases and entropy increases.
- (a) Compost pile decomposition is endergonic, enthalpy decreases and entropy decreases. (b) A baby developing from an egg is an exergonic process, enthalpy decreases and entropy increases. (c) Sand art being destroyed is endergonic, enthalpy increases and entropy increases. (d) A ball rolling down a hill is an exergonic process, enthalpy decreases and entropy decreases.
- (a) Compost pile decomposition is endergonic, enthalpy increases and entropy increases. (b) A baby developing from an egg is an endergonic process, enthalpy decreases and entropy decreases. (c) Sand art being destroyed is exergonic, no change in enthalpy and entropy increases. (d) A ball rolling down a hill is an exergonic process, enthalpy decreases and no change in entropy.
An important concept in the study of metabolism and energy is that of chemical equilibrium. Most chemical reactions are reversible. They can proceed in both directions, releasing energy into their environment in one direction, and absorbing it from the environment in the other direction (Figure 6.9). The same is true for the chemical reactions involved in cell metabolism, such as the breaking down and building up of proteins into and from individual amino acids, respectively. Reactants within a closed system will undergo chemical reactions in both directions until a state of equilibrium is reached. This state of equilibrium is one of the lowest possible free energy and a state of maximal entropy. Energy must be put into the system to push the reactants and products away from a state of equilibrium. Either reactants or products must be added, removed, or changed. If a cell were a closed system, its chemical reactions would reach equilibrium, and it would die because there would be insufficient free energy left to perform the work needed to maintain life. In a living cell, chemical reactions are constantly moving towards equilibrium, but never reach it. This is because a living cell is an open system. Materials pass in and out, the cell recycles the products of certain chemical reactions into other reactions, and chemical equilibrium is never reached. In this way, living organisms are in a constant energy-requiring, uphill battle against equilibrium and entropy. This constant supply of energy ultimately comes from sunlight, which is used to produce nutrients in the process of photosynthesis.
The concept or entropy can be difficult. Have the students survey their neighborhood for houses, sheds, store fronts, any structures that are deteriorating due to lack of maintenance. Also have them identify older homes, buildings that are in good shape and are actively maintained.
There is another important concept that must be considered regarding endergonic and exergonic reactions. Even exergonic reactions require a small amount of energy input to get going before they can proceed with their energy-releasing steps. These reactions have a net release of energy, but still require some energy in the beginning. This small amount of energy input necessary for all chemical reactions to occur is called the activation energy (or free energy of activation) and is abbreviated EA (Figure 6.10).
Why would an energy-releasing, negative ∆G reaction actually require some energy to proceed? The reason lies in the steps that take place during a chemical reaction. During chemical reactions, certain chemical bonds are broken and new ones are formed. For example, when a glucose molecule is broken down, bonds between the carbon atoms of the molecule are broken. Since these are energy-storing bonds, they release energy when broken. However, to get them into a state that allows the bonds to break, the molecule must be somewhat contorted. A small energy input is required to achieve this contorted state. This contorted state is called the transition state, and it is a high-energy, unstable state. For this reason, reactant molecules don’t last long in their transition state, but very quickly proceed to the next steps of the chemical reaction. Free energy diagrams illustrate the energy profiles for a given reaction. Whether the reaction is exergonic or endergonic determines whether the products in the diagram will exist at a lower or higher energy state than both the reactants and the products. However, regardless of this measure, the transition state of the reaction exists at a higher energy state than the reactants, and thus, EA is always positive.
Watch an animation of the move from free energy to transition state at this site.
- Transitional states are stable because molecules have relaxed molecular structure with low energy.
- Transitional states are unstable because molecules have strained molecular structure with high energy.
- Transitional states are unstable because molecules have relaxed molecular structure with high energy.
- Transitional states are stable because molecules have strained molecular structure with low energy.
Where does the activation energy required by chemical reactants come from? The source of the activation energy needed to push reactions forward is typically heat energy from the surroundings. Heat energy (the total bond energy of reactants or products in a chemical reaction) speeds up the motion of molecules, increasing the frequency and force with which they collide; it also moves atoms and bonds within the molecule slightly, helping them reach their transition state. For this reason, heating up a system will cause chemical reactants within that system to react more frequently. Increasing the pressure on a system has the same effect. Once reactants have absorbed enough heat energy from their surroundings to reach the transition state, the reaction will proceed.
The activation energy of a particular reaction determines the rate at which it will proceed. The higher the activation energy, the slower the chemical reaction will be. The example of iron rusting illustrates an inherently slow reaction. This reaction occurs slowly over time because of its high EA. Additionally, the burning of many fuels, which is strongly exergonic, will take place at a negligible rate unless their activation energy is overcome by sufficient heat from a spark. Once they begin to burn, however, the chemical reactions release enough heat to continue the burning process, supplying the activation energy for surrounding fuel molecules. Like these reactions outside of cells, the activation energy for most cellular reactions is too high for heat energy to overcome at efficient rates. In other words, in order for important cellular reactions to occur at appreciable rates (number of reactions per unit time), their activation energies must be lowered (Figure 6.10); this is referred to as catalysis. This is a very good thing as far as living cells are concerned. Important macromolecules, such as proteins, DNA, and RNA, store considerable energy, and their breakdown is exergonic. If cellular temperatures alone provided enough heat energy for these exergonic reactions to overcome their activation barriers, the essential components of a cell would disintegrate.

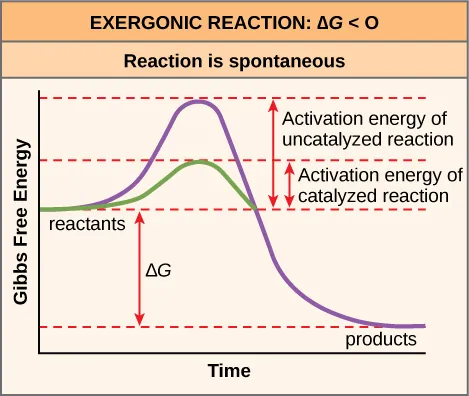

Clearly explain the significance of the activation energy needed for chemical reactions, even with exergonic reactions. Use the figure of exergonic reactions with a delta G less than zero to show that though the change in energy is negative, there still is a need for activation energy. Include examples of ways that enzymes lower the activation energy needed. Emphasize that this is the way enzymes ““speed up”” reactions, they make it easier for the reactions to occur.
- \Delta G is greater for the forward direction than for the reverse direction.
- \Delta G is greater for the uncatalyzed than the catalyzed reaction.
- \Delta G is greater for the catalyzed than the uncatalyzed reaction.
- \Delta G is the same for the catalyzed and uncatalyzed reactions.
All plants use water, carbon dioxide, and energy from the sun to make sugars. Think about what would happen to plants that do not have sunlight as an energy source or sufficient water. What would happen to organisms that depend on those plants for their own survival? How does depletion or destruction of forests by human activity affect free energy availability to organisms living in the rain forest? What measures can be taken to try and restore the free energy to an acceptable level?
This is an application of LO 2.3 and Science Practice 6.4 because students are asked to make a prediction about how a change in free energy availability can affect organisms, populations, and ecosystems.
