14.4 DNA Replication in Prokaryotes

Biology for AP® Courses14.4 DNA Replication in Prokaryotes

Learning Objectives

In this section, you will explore the following questions:

  • How is DNA replicated in prokaryotes, and what are the roles of the leading and lagging strands and Okazaki fragments in the process?
  • What is the role of DNA polymerase and other enzymes and proteins in supporting replication?

Connection for AP® Courses

As was stated previously, DNA replication is more complex than simply unzipping the double helix and making new complementary strands. Replication in prokaryotes starts from a sequence of nucleotides on the chromosome called the origin of replication—the point at which the DNA opens up or unzips. The enzyme helicase opens up the DNA at the point where hydrogen bonds connect the strands, resulting in the formation of a Y-shaped replication fork. Single-strand binding proteins keep the fork open. The enzyme primase synthesizes RNA primers to initiate DNA synthesis by DNA polymerase, which can add nucleotides only in the 5' to 3' direction. DNA polymerase recognizes the 3'-OH end as its landing site; thus, polymerase “reads” the template strand in the 3' to 5' direction and builds the complementary DNA polymer in the 5' to 3' direction. One strand—called the leading strand—is synthesized continuously in the direction of the replication fork (the direction in which helicase is separating the two strands), with polymerase adding new nucleotides one-by-one. However, replication of the other strand—called the lagging strand—occurs in a direction away from the replication fork, in short stretches of DNA known as Okazaki fragments. (Think of the activities on the lagging strand as analogous to trying to walk on a moving sidewalk that is moving in the opposite direction.) The RNA primers are replaced by DNA nucleotides, and ligase seals the DNA, creating phosphodiester bonds between the 3'-OH of one end and the 5'-phosphate of the other strand. The replicated DNA molecules now consist of one original template strand and one newly synthesized strand.

Information presented and the examples highlighted in the section support concepts outlined in Big Idea 3 of the AP® Biology Curriculum Framework. The Learning Objectives listed in the Curriculum Framework provide a transparent foundation for the AP® Biology course, an inquiry-based laboratory experience, instructional activities, and AP® exam questions. A Learning Objective merges required content with one or more of the seven Science Practices.

Big Idea 3 Living systems store, retrieve, transmit and respond to information essential to life processes.
Enduring Understanding 3.A Heritable information provides for continuity of life.
Essential Knowledge 3.A.1 DNA, and in some cases RNA, is the primary source of heritable information.
Science Practice 1.2 The student can describe representations and models of natural or man-made phenomena and systems in the domain.
Learning Objective 3.3 The student is able to describe representations and models that illustrate how genetic information is copied for transmission between generations.

Teacher Support

Use the ten steps summarizing the process of DNA replication listed just prior to Table 14.1 in the text as an outline for discussing DNA replication in prokaryotes.

The Science Practice Challenge Questions contain additional test questions for this section that will help you prepare for the AP exam. These questions address the following standards:
[APLO 4.3][APLO 1.18][APLO 1.21]

DNA replication has been extremely well studied in prokaryotes primarily because of the small size of the genome and the mutants that are available. E. coli has 4.6 million base pairs in a single circular chromosome and all of it gets replicated in approximately 42 minutes, starting from a single origin of replication and proceeding around the circle in both directions. This means that approximately 1000 nucleotides are added per second. The process is quite rapid and occurs without many mistakes.

DNA replication employs a large number of proteins and enzymes, each of which plays a critical role during the process. One of the key players is the enzyme DNA polymerase, also known as DNA pol, which adds nucleotides one by one to the growing DNA chain that are complementary to the template strand. The addition of nucleotides requires energy; this energy is obtained from the nucleotides that have three phosphates attached to them, similar to ATP which has three phosphate groups attached. When the bond between the phosphates is broken, the energy released is used to form the phosphodiester bond between the incoming nucleotide and the growing chain. In prokaryotes, three main types of polymerases are known: DNA pol I, DNA pol II, and DNA pol III. It is now known that DNA pol III is the enzyme required for DNA synthesis; DNA pol I and DNA pol II are primarily required for repair.

How does the replication machinery know where to begin? It turns out that there are specific nucleotide sequences called origins of replication where replication begins. In E. coli, which has a single origin of replication on its one chromosome (as do most prokaryotes), it is approximately 245 base pairs long and is rich in AT sequences. The origin of replication is recognized by certain proteins that bind to this site. An enzyme called helicase unwinds the DNA by breaking the hydrogen bonds between the nitrogenous base pairs. ATP hydrolysis is required for this process. As the DNA opens up, Y-shaped structures called replication forks are formed. Two replication forks are formed at the origin of replication and these get extended bi- directionally as replication proceeds. Single-strand binding proteins coat the single strands of DNA near the replication fork to prevent the single-stranded DNA from winding back into a double helix. DNA polymerase is able to add nucleotides only in the 5' to 3' direction (a new DNA strand can be only extended in this direction). It also requires a free 3'-OH group to which it can add nucleotides by forming a phosphodiester bond between the 3'-OH end and the 5' phosphate of the next nucleotide. This essentially means that it cannot add nucleotides if a free 3'-OH group is not available. Then how does it add the first nucleotide? The problem is solved with the help of a primer that provides the free 3'-OH end. Another enzyme, RNA primase, synthesizes an RNA primer that is about five to ten nucleotides long and complementary to the DNA. Because this sequence primes the DNA synthesis, it is appropriately called the primer. DNA polymerase can now extend this RNA primer, adding nucleotides one by one that are complementary to the template strand (Figure 14.14).

Visual Connection

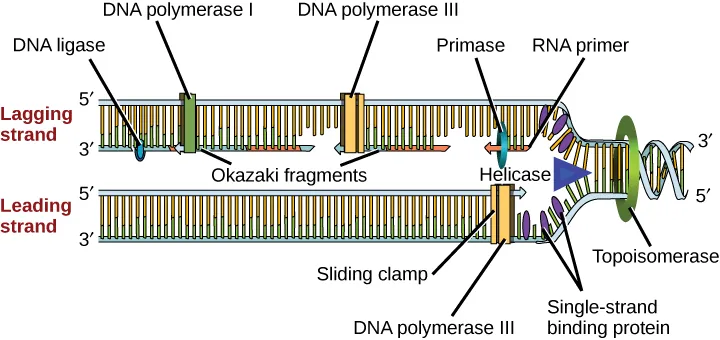

Illustration shows the replication fork. Helicase unwinds the helix, and single-strand binding proteins prevent the helix from re-forming. Topoisomerase prevents the DNA from getting too tightly coiled ahead of the replication fork. DNA primase forms an RNA primer, and DNA polymerase extends the DNA strand from the RNA primer. DNA synthesis occurs only in the 5' to 3' direction. On the leading strand, DNA synthesis occurs continuously. On the lagging strand, DNA synthesis restarts many times as the helix unwinds, resulting in many short fragments called “Okazaki fragments.” DNA ligase joins the Okazaki fragments together into a single DNA molecule.
Figure 14.14 A replication fork is formed when helicase separates the DNA strands at the origin of replication. The DNA tends to become more highly coiled ahead of the replication fork. Topoisomerase breaks and reforms DNA’s phosphate backbone ahead of the replication fork, thereby relieving the pressure that results from this supercoiling. Single-strand binding proteins bind to the single-stranded DNA to prevent the helix from re-forming. Primase synthesizes an RNA primer. DNA polymerase III uses this primer to synthesize the daughter DNA strand. On the leading strand, DNA is synthesized continuously, whereas on the lagging strand, DNA is synthesized in short stretches called Okazaki fragments. DNA polymerase I replaces the RNA primer with DNA. DNA ligase seals the gaps between the Okazaki fragments, joining the fragments into a single DNA molecule. (credit: modification of work by Mariana Ruiz Villareal)
Refer to Figure 14.14
You isolate a cell strain in which the joining together of Okazaki fragments is impaired and suspect that a mutation has occurred in an enzyme found at the replication fork. Which enzyme is most likely to be mutated?
  1. DNA ligase
  2. DNA polymerase III
  3. helicase
  4. topoisomerase

The replication fork moves at the rate of 1000 nucleotides per second. DNA polymerase can only extend in the 5' to 3' direction, which poses a slight problem at the replication fork. As we know, the DNA double helix is anti-parallel; that is, one strand is in the 5' to 3' direction and the other is oriented in the 3' to 5' direction. One strand, which is complementary to the 3' to 5' parental DNA strand, is synthesized continuously towards the replication fork because the polymerase can add nucleotides in this direction. This continuously synthesized strand is known as the leading strand. The other strand, complementary to the 5' to 3' parental DNA, is extended away from the replication fork, in small fragments known as Okazaki fragments, each requiring a primer to start the synthesis. Okazaki fragments are named after the Japanese scientist who first discovered them. The strand with the Okazaki fragments is known as the lagging strand.

The leading strand can be extended by one primer alone, whereas the lagging strand needs a new primer for each of the short Okazaki fragments. The overall direction of the lagging strand will be 3' to 5', and that of the leading strand 5' to 3'. A protein called the sliding clamp holds the DNA polymerase in place as it continues to add nucleotides. The sliding clamp is a ring-shaped protein that binds to the DNA and holds the polymerase in place. Topoisomerase prevents the over-winding of the DNA double helix ahead of the replication fork as the DNA is opening up; it does so by causing temporary nicks in the DNA helix and then resealing it. As synthesis proceeds, the RNA primers are replaced by DNA. The primers are removed by the exonuclease activity of DNA pol I, and the gaps are filled in by deoxyribonucleotides. The nicks that remain between the newly synthesized DNA (that replaced the RNA primer) and the previously synthesized DNA are sealed by the enzyme DNA ligase that catalyzes the formation of phosphodiester linkage between the 3'-OH end of one nucleotide and the 5' phosphate end of the other fragment.

Once the chromosome has been completely replicated, the two DNA copies move into two different cells during cell division. The process of DNA replication can be summarized as follows:

  1. DNA unwinds at the origin of replication.
  2. Helicase opens up the DNA-forming replication forks; these are extended bidirectionally.
  3. Single-strand binding proteins coat the DNA around the replication fork to prevent rewinding of the DNA.
  4. Topoisomerase binds at the region ahead of the replication fork to prevent supercoiling.
  5. Primase synthesizes RNA primers complementary to the DNA strand.
  6. DNA polymerase starts adding nucleotides to the 3'-OH end of the primer.
  7. Elongation of both the lagging and the leading strand continues.
  8. RNA primers are removed by exonuclease activity.
  9. Gaps are filled by DNA pol by adding dNTPs.
  10. The gap between the two DNA fragments is sealed by DNA ligase, which helps in the formation of phosphodiester bonds.


Table 14.1 summarizes the enzymes involved in prokaryotic DNA replication and the functions of each.

Prokaryotic DNA Replication: Enzymes and Their Functions
Enzyme/proteinSpecific Function
DNA pol IExonuclease activity removes RNA primer and replaces with newly synthesized DNA
DNA pol IIRepair function
DNA pol IIIMain enzyme that adds nucleotides in the 5'-3' direction
HelicaseOpens the DNA helix by breaking hydrogen bonds between the nitrogenous bases
LigaseSeals the gaps between the Okazaki fragments to create one continuous DNA strand
PrimaseSynthesizes RNA primers needed to start replication
Sliding ClampHelps to hold the DNA polymerase in place when nucleotides are being added
TopoisomeraseHelps relieve the stress on DNA when unwinding by causing breaks and then resealing the DNA
Single-strand binding proteins (SSB)Binds to single-stranded DNA to avoid DNA rewinding back.
Table 14.1

Link to Learning

Review the full process of DNA replication here.

Explain why errors in DNA replication are rare events in cells.
  1. Errors in DNA replication are rare events in a cell due to the presence of DNA ligase enzyme which fixes mistakes in the copying process.
  2. Polymerase I is solely responsible for proofreading and fixing mistakes in the copying process, which explains why so few mistakes are made.
  3. Polymerase I and II are responsible for proofreading and fixing mistakes in the copying process which explains why errors in DNA replication are rare.
  4. Errors in DNA replication are rare events in cells due to the action of DNA helicase.

Science Practice Connection for AP® Courses

Activity

Use the model of DNA you constructed in Section 14.2 to demonstrate the process of replication in prokaryotes, showing how the activities differ on the leading and lagging strands. You need to add to your model by including enzymes and other proteins involved in the replication process.

Think About It

You isolate a DNA strand in which the joining together of Okazaki fragments is impaired and suspect that a mutation has occurred in an enzyme found at the replication fork. Which enzyme is most likely mutated?

Teacher Support

The activity is an application of Learning Objective 3.3 and Science Practice 1.2 because students are describing the process of replication using a model of DNA.

The Think About It question is an application of Learning Objective 3.3 and Science Practice 1.2 because students are describing the role of a particular enzyme in the process of DNA replication.

Answer:

The enzyme likely to be mutated is DNA ligase, which seals the gaps between the Okazaki fragments.
