Astronomy

11.3 Atmospheres of the Giant Planets

Astronomy11.3 Atmospheres of the Giant Planets
Buy book
  1. Preface
  2. 1 Science and the Universe: A Brief Tour
    1. Introduction
    2. 1.1 The Nature of Astronomy
    3. 1.2 The Nature of Science
    4. 1.3 The Laws of Nature
    5. 1.4 Numbers in Astronomy
    6. 1.5 Consequences of Light Travel Time
    7. 1.6 A Tour of the Universe
    8. 1.7 The Universe on the Large Scale
    9. 1.8 The Universe of the Very Small
    10. 1.9 A Conclusion and a Beginning
    11. For Further Exploration
  3. 2 Observing the Sky: The Birth of Astronomy
    1. Thinking Ahead
    2. 2.1 The Sky Above
    3. 2.2 Ancient Astronomy
    4. 2.3 Astrology and Astronomy
    5. 2.4 The Birth of Modern Astronomy
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  4. 3 Orbits and Gravity
    1. Thinking Ahead
    2. 3.1 The Laws of Planetary Motion
    3. 3.2 Newton’s Great Synthesis
    4. 3.3 Newton’s Universal Law of Gravitation
    5. 3.4 Orbits in the Solar System
    6. 3.5 Motions of Satellites and Spacecraft
    7. 3.6 Gravity with More Than Two Bodies
    8. Key Terms
    9. Summary
    10. For Further Exploration
    11. Collaborative Group Activities
    12. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  5. 4 Earth, Moon, and Sky
    1. Thinking Ahead
    2. 4.1 Earth and Sky
    3. 4.2 The Seasons
    4. 4.3 Keeping Time
    5. 4.4 The Calendar
    6. 4.5 Phases and Motions of the Moon
    7. 4.6 Ocean Tides and the Moon
    8. 4.7 Eclipses of the Sun and Moon
    9. Key Terms
    10. Summary
    11. For Further Exploration
    12. Collaborative Group Activities
    13. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  6. 5 Radiation and Spectra
    1. Thinking Ahead
    2. 5.1 The Behavior of Light
    3. 5.2 The Electromagnetic Spectrum
    4. 5.3 Spectroscopy in Astronomy
    5. 5.4 The Structure of the Atom
    6. 5.5 Formation of Spectral Lines
    7. 5.6 The Doppler Effect
    8. Key Terms
    9. Summary
    10. For Further Exploration
    11. Collaborative Group Activities
    12. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  7. 6 Astronomical Instruments
    1. Thinking Ahead
    2. 6.1 Telescopes
    3. 6.2 Telescopes Today
    4. 6.3 Visible-Light Detectors and Instruments
    5. 6.4 Radio Telescopes
    6. 6.5 Observations outside Earth’s Atmosphere
    7. 6.6 The Future of Large Telescopes
    8. Key Terms
    9. Summary
    10. For Further Exploration
    11. Collaborative Group Activities
    12. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  8. 7 Other Worlds: An Introduction to the Solar System
    1. Thinking Ahead
    2. 7.1 Overview of Our Planetary System
    3. 7.2 Composition and Structure of Planets
    4. 7.3 Dating Planetary Surfaces
    5. 7.4 Origin of the Solar System
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  9. 8 Earth as a Planet
    1. Thinking Ahead
    2. 8.1 The Global Perspective
    3. 8.2 Earth’s Crust
    4. 8.3 Earth’s Atmosphere
    5. 8.4 Life, Chemical Evolution, and Climate Change
    6. 8.5 Cosmic Influences on the Evolution of Earth
    7. Key Terms
    8. Summary
    9. For Further Exploration
    10. Collaborative Group Activities
    11. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  10. 9 Cratered Worlds
    1. Thinking Ahead
    2. 9.1 General Properties of the Moon
    3. 9.2 The Lunar Surface
    4. 9.3 Impact Craters
    5. 9.4 The Origin of the Moon
    6. 9.5 Mercury
    7. Key Terms
    8. Summary
    9. For Further Exploration
    10. Collaborative Group Activities
    11. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  11. 10 Earthlike Planets: Venus and Mars
    1. Thinking Ahead
    2. 10.1 The Nearest Planets: An Overview
    3. 10.2 The Geology of Venus
    4. 10.3 The Massive Atmosphere of Venus
    5. 10.4 The Geology of Mars
    6. 10.5 Water and Life on Mars
    7. 10.6 Divergent Planetary Evolution
    8. Key Terms
    9. Summary
    10. For Further Exploration
    11. Collaborative Group Activities
    12. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  12. 11 The Giant Planets
    1. Thinking Ahead
    2. 11.1 Exploring the Outer Planets
    3. 11.2 The Giant Planets
    4. 11.3 Atmospheres of the Giant Planets
    5. Key Terms
    6. Summary
    7. For Further Exploration
    8. Collaborative Group Activities
    9. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  13. 12 Rings, Moons, and Pluto
    1. Thinking Ahead
    2. 12.1 Ring and Moon Systems Introduced
    3. 12.2 The Galilean Moons of Jupiter
    4. 12.3 Titan and Triton
    5. 12.4 Pluto and Charon
    6. 12.5 Planetary Rings
    7. Key Terms
    8. Summary
    9. For Further Exploration
    10. Collaborative Group Activities
    11. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  14. 13 Comets and Asteroids: Debris of the Solar System
    1. Thinking Ahead
    2. 13.1 Asteroids
    3. 13.2 Asteroids and Planetary Defense
    4. 13.3 The “Long-Haired” Comets
    5. 13.4 The Origin and Fate of Comets and Related Objects
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  15. 14 Cosmic Samples and the Origin of the Solar System
    1. Thinking Ahead
    2. 14.1 Meteors
    3. 14.2 Meteorites: Stones from Heaven
    4. 14.3 Formation of the Solar System
    5. 14.4 Comparison with Other Planetary Systems
    6. 14.5 Planetary Evolution
    7. Key Terms
    8. Summary
    9. For Further Exploration
    10. Collaborative Group Activities
    11. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  16. 15 The Sun: A Garden-Variety Star
    1. Thinking Ahead
    2. 15.1 The Structure and Composition of the Sun
    3. 15.2 The Solar Cycle
    4. 15.3 Solar Activity above the Photosphere
    5. 15.4 Space Weather
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  17. 16 The Sun: A Nuclear Powerhouse
    1. Thinking Ahead
    2. 16.1 Sources of Sunshine: Thermal and Gravitational Energy
    3. 16.2 Mass, Energy, and the Theory of Relativity
    4. 16.3 The Solar Interior: Theory
    5. 16.4 The Solar Interior: Observations
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  18. 17 Analyzing Starlight
    1. Thinking Ahead
    2. 17.1 The Brightness of Stars
    3. 17.2 Colors of Stars
    4. 17.3 The Spectra of Stars (and Brown Dwarfs)
    5. 17.4 Using Spectra to Measure Stellar Radius, Composition, and Motion
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  19. 18 The Stars: A Celestial Census
    1. Thinking Ahead
    2. 18.1 A Stellar Census
    3. 18.2 Measuring Stellar Masses
    4. 18.3 Diameters of Stars
    5. 18.4 The H–R Diagram
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  20. 19 Celestial Distances
    1. Thinking Ahead
    2. 19.1 Fundamental Units of Distance
    3. 19.2 Surveying the Stars
    4. 19.3 Variable Stars: One Key to Cosmic Distances
    5. 19.4 The H–R Diagram and Cosmic Distances
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  21. 20 Between the Stars: Gas and Dust in Space
    1. Thinking Ahead
    2. 20.1 The Interstellar Medium
    3. 20.2 Interstellar Gas
    4. 20.3 Cosmic Dust
    5. 20.4 Cosmic Rays
    6. 20.5 The Life Cycle of Cosmic Material
    7. 20.6 Interstellar Matter around the Sun
    8. Key Terms
    9. Summary
    10. For Further Exploration
    11. Collaborative Group Activities
    12. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  22. 21 The Birth of Stars and the Discovery of Planets outside the Solar System
    1. Thinking Ahead
    2. 21.1 Star Formation
    3. 21.2 The H–R Diagram and the Study of Stellar Evolution
    4. 21.3 Evidence That Planets Form around Other Stars
    5. 21.4 Planets beyond the Solar System: Search and Discovery
    6. 21.5 Exoplanets Everywhere: What We Are Learning
    7. 21.6 New Perspectives on Planet Formation
    8. Key Terms
    9. Summary
    10. For Further Exploration
    11. Collaborative Group Activities
    12. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  23. 22 Stars from Adolescence to Old Age
    1. Thinking Ahead
    2. 22.1 Evolution from the Main Sequence to Red Giants
    3. 22.2 Star Clusters
    4. 22.3 Checking Out the Theory
    5. 22.4 Further Evolution of Stars
    6. 22.5 The Evolution of More Massive Stars
    7. Key Terms
    8. Summary
    9. For Further Exploration
    10. Collaborative Group Activities
    11. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  24. 23 The Death of Stars
    1. Thinking Ahead
    2. 23.1 The Death of Low-Mass Stars
    3. 23.2 Evolution of Massive Stars: An Explosive Finish
    4. 23.3 Supernova Observations
    5. 23.4 Pulsars and the Discovery of Neutron Stars
    6. 23.5 The Evolution of Binary Star Systems
    7. 23.6 The Mystery of the Gamma-Ray Bursts
    8. Key Terms
    9. Summary
    10. For Further Exploration
    11. Collaborative Group Activities
    12. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  25. 24 Black Holes and Curved Spacetime
    1. Thinking Ahead
    2. 24.1 Introducing General Relativity
    3. 24.2 Spacetime and Gravity
    4. 24.3 Tests of General Relativity
    5. 24.4 Time in General Relativity
    6. 24.5 Black Holes
    7. 24.6 Evidence for Black Holes
    8. 24.7 Gravitational Wave Astronomy
    9. Key Terms
    10. Summary
    11. For Further Exploration
    12. Collaborative Group Activities
    13. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  26. 25 The Milky Way Galaxy
    1. Thinking Ahead
    2. 25.1 The Architecture of the Galaxy
    3. 25.2 Spiral Structure
    4. 25.3 The Mass of the Galaxy
    5. 25.4 The Center of the Galaxy
    6. 25.5 Stellar Populations in the Galaxy
    7. 25.6 The Formation of the Galaxy
    8. Key Terms
    9. Summary
    10. For Further Exploration
    11. Collaborative Group Activities
    12. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  27. 26 Galaxies
    1. Thinking Ahead
    2. 26.1 The Discovery of Galaxies
    3. 26.2 Types of Galaxies
    4. 26.3 Properties of Galaxies
    5. 26.4 The Extragalactic Distance Scale
    6. 26.5 The Expanding Universe
    7. Key Terms
    8. Summary
    9. For Further Exploration
    10. Collaborative Group Activities
    11. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  28. 27 Active Galaxies, Quasars, and Supermassive Black Holes
    1. Thinking Ahead
    2. 27.1 Quasars
    3. 27.2 Supermassive Black Holes: What Quasars Really Are
    4. 27.3 Quasars as Probes of Evolution in the Universe
    5. Key Terms
    6. Summary
    7. For Further Exploration
    8. Collaborative Group Activities
    9. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  29. 28 The Evolution and Distribution of Galaxies
    1. Thinking Ahead
    2. 28.1 Observations of Distant Galaxies
    3. 28.2 Galaxy Mergers and Active Galactic Nuclei
    4. 28.3 The Distribution of Galaxies in Space
    5. 28.4 The Challenge of Dark Matter
    6. 28.5 The Formation and Evolution of Galaxies and Structure in the Universe
    7. Key Terms
    8. Summary
    9. For Further Exploration
    10. Collaborative Group Activities
    11. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  30. 29 The Big Bang
    1. Thinking Ahead
    2. 29.1 The Age of the Universe
    3. 29.2 A Model of the Universe
    4. 29.3 The Beginning of the Universe
    5. 29.4 The Cosmic Microwave Background
    6. 29.5 What Is the Universe Really Made Of?
    7. 29.6 The Inflationary Universe
    8. 29.7 The Anthropic Principle
    9. Key Terms
    10. Summary
    11. For Further Exploration
    12. Collaborative Group Activities
    13. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  31. 30 Life in the Universe
    1. Thinking Ahead
    2. 30.1 The Cosmic Context for Life
    3. 30.2 Astrobiology
    4. 30.3 Searching for Life beyond Earth
    5. 30.4 The Search for Extraterrestrial Intelligence
    6. Key Terms
    7. Summary
    8. For Further Exploration
    9. Collaborative Group Activities
    10. Exercises
      1. Review Questions
      2. Thought Questions
      3. Figuring for Yourself
  32. A | How to Study for an Introductory Astronomy Class
  33. B | Astronomy Websites, Images, and Apps
  34. C | Scientific Notation
  35. D | Units Used in Science
  36. E | Some Useful Constants for Astronomy
  37. F | Physical and Orbital Data for the Planets
  38. G | Selected Moons of the Planets
  39. H | Future Total Eclipses
  40. I | The Nearest Stars, Brown Dwarfs, and White Dwarfs
  41. J | The Brightest Twenty Stars
  42. K | The Chemical Elements
  43. L | The Constellations
  44. M | Star Chart and Sky Event Resources
  45. Index

Learning Objectives

By the end of this section, you will be able to:

  • Discuss the atmospheric composition of the giant planets
  • Describe the cloud formation and atmospheric structure of the gas giants
  • Characterize the giant planets’ wind and weather patterns
  • Understand the scale and longevity of storms on the giant planets

The atmospheres of the jovian planets are the parts we can observe or measure directly. Since these planets have no solid surfaces, their atmospheres are more representative of their general compositions than is the case with the terrestrial planets. These atmospheres also present us with some of the most dramatic examples of weather patterns in the solar system. As we will see, storms on these planets can grow bigger than the entire planet Earth.

Atmospheric Composition

When sunlight reflects from the atmospheres of the giant planets, the atmospheric gases leave their “fingerprints” in the spectrum of light. Spectroscopic observations of the jovian planets began in the nineteenth century, but for a long time, astronomers were not able to interpret the spectra they observed. As late as the 1930s, the most prominent features photographed in these spectra remained unidentified. Then better spectra revealed the presence of molecules of methane (CH4) and ammonia (NH3) in the atmospheres of Jupiter and Saturn.

At first astronomers thought that methane and ammonia might be the main constituents of these atmospheres, but now we know that hydrogen and helium are actually the dominant gases. The confusion arose because neither hydrogen nor helium possesses easily detected spectral features in the visible spectrum. It was not until the Voyager spacecraft measured the far-infrared spectra of Jupiter and Saturn that a reliable abundance for the elusive helium could be found.

The compositions of the two atmospheres are generally similar, except that on Saturn there is less helium as the result of the precipitation of helium that contributes to Saturn’s internal energy source. The most precise measurements of composition were made on Jupiter by the Galileo entry probe in 1995; as a result, we know the abundances of some elements in the jovian atmosphere even better than we know those in the Sun.

Voyagers in Astronomy

James Van Allen: Several Planets under His Belt

The career of physicist James Van Allen spanned the birth and growth of the space age, and he played a major role in its development. Born in Iowa in 1914, Van Allen received his PhD from the University of Iowa. He then worked for several research institutions and served in the Navy during World War II.

After the war, Van Allen (Figure 11.9) was appointed Professor of Physics at the University of Iowa. He and his collaborators began using rockets to explore cosmic radiation in Earth’s outer atmosphere. To reach extremely high altitudes, Van Allen designed a technique in which a balloon lifts and then launches a small rocket (the rocket is nicknamed “the rockoon”).

Photograph of James Van Allen holding a small rocket, which was part of a “rockoon”.
Figure 11.9 James Van Allen (1914–2006). In this 1950s photograph, Van Allen holds a “rockoon.” (credit: modification of work by Frederick W. Kent Collection, University of Iowa Archives)

Over dinner one night in 1950, Van Allen and several colleagues came up with the idea of the International Geophysical Year (IGY), an opportunity for scientists around the world to coordinate their investigations of the physics of Earth, especially research done at high altitudes. In 1955, the United States and the Soviet Union each committed themselves to launching an Earth-orbiting satellite during IGY, a competition that began what came to be known as the space race. The IGY (stretched to 18 months) took place between July 1957 and December 1958.

The Soviet Union won the first lap of the race by launching Sputnik 1 in October 1957. The US government spurred its scientists and engineers to even greater efforts to get something into space to maintain the country’s prestige. However, the primary US satellite program, Vanguard, ran into difficulties: each of its early launches crashed or exploded. Simultaneously, a second team of rocket engineers and scientists had quietly been working on a military launch vehicle called Jupiter-C. Van Allen spearheaded the design of the instruments aboard a small satellite that this vehicle would carry. On January 31, 1958, Van Allen’s Explorer 1 became the first US satellite in space.

Unlike Sputnik, Explorer 1 was equipped to make scientific measurements of high-energy charged particles above the atmosphere. Van Allen and his team discovered a belt of highly charged particles surrounding Earth, and these belts now bear his name. This first scientific discovery of the space program made Van Allen’s name known around the world.

Van Allen and his colleagues continued to measure the magnetic and particle environment around planets with increasingly sophisticated spacecraft, including Pioneers 10 and 11, which made exploratory surveys of the environments of Jupiter and Saturn. Some scientists refer to the charged-particle zones around those planets as Van Allen belts as well. (Once, when Van Allen was giving a lecture at the University of Arizona, the graduate students in planetary science asked him if he would leave his belt at the school. It is now proudly displayed as the university’s “Van Allen belt.”)

Van Allen was a strong supporter of space science and an eloquent senior spokesperson for the American scientific community, warning NASA not to put all its efforts into human spaceflight, but to also use robotic spacecraft as productive tools for space exploration.

Clouds and Atmospheric Structure

The clouds of Jupiter (Figure 11.10) are among the most spectacular sights in the solar system, much beloved by makers of science-fiction films. They range in color from white to orange to red to brown, swirling and twisting in a constantly changing kaleidoscope of patterns. Saturn shows similar but much more subdued cloud activity; instead of vivid colors, its clouds have a nearly uniform butterscotch hue (Figure 11.11).

Jupiter’s Dynamic Clouds. The oranges, reddish browns, taupes and beiges of Jupiter’s dynamic atmosphere are seen swirling around the Great Red Spot in this close-up image of Jupiter.
Figure 11.10 Jupiter’s Colorful Clouds. The vibrant colors of the clouds on Jupiter present a puzzle to astronomers: given the cool temperatures and the composition of nearly 90% hydrogen, the atmosphere should be colorless. One hypothesis suggests that perhaps colorful hydrogen compounds rise from warm areas. The actual colors are a bit more muted, as shown in Figure 11.2. (credit: modification of work by Voyager Project, JPL, and NASA)

Different gases freeze at different temperatures. At the temperatures and pressures of the upper atmospheres of Jupiter and Saturn, methane remains a gas, but ammonia can condense and freeze. (Similarly, water vapor condenses high in Earth’s atmosphere to produce clouds of ice crystals.) The primary clouds that we see around these planets, whether from a spacecraft or through a telescope, are composed of frozen ammonia crystals. The ammonia clouds mark the upper edge of the planets’ tropospheres; above that is the stratosphere, the coldest part of the atmosphere. (These layers were initially defined in Earth as a Planet.)

The Changing Angle of Saturn’s Rings. Five images clearly illustrating the 27° tilt of Saturn’s rings. At lower left, the rings are seen nearly edge on, and the Cassini division is difficult to see. Moving toward the upper right, the rings tilt to their maximum angle as seen from Earth, with the planet obscuring only a small portion of the rings.
Figure 11.11 Saturn over Five Years. These beautiful images of Saturn were recorded by the Hubble Space Telescope between 1996 and 2000. Since Saturn is tilted by 27°, we see the orientation of Saturn’s rings around its equator change as the planet moves along its orbit. Note the horizontal bands in the atmosphere. (credit: modification of work by NASA and The Hubble Heritage Team (STScI/AURA))

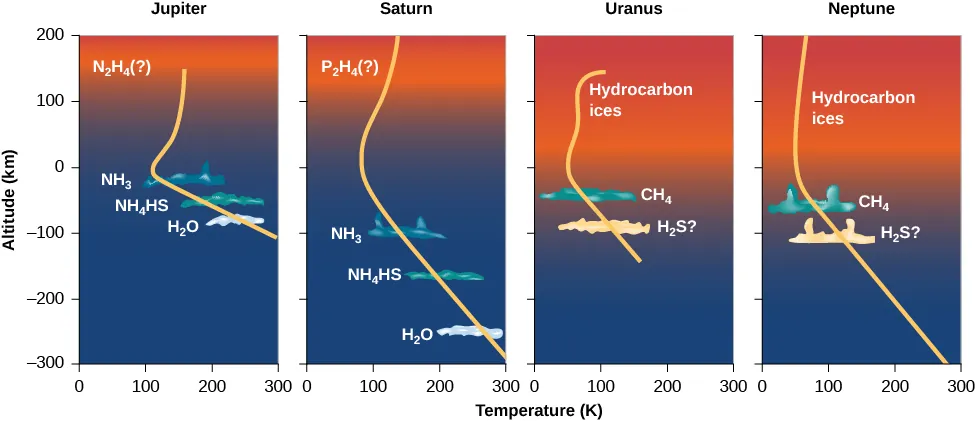

The diagrams in Figure 11.12 show the structure and clouds in the atmospheres of all four jovian planets. On both Jupiter and Saturn, the temperature near the cloud tops is about 140 K (only a little cooler than the polar caps of Mars). On Jupiter, this cloud level is at a pressure of about 0.1 bar (one tenth the atmospheric pressure at the surface of Earth), but on Saturn it occurs lower in the atmosphere, at about 1 bar. Because the ammonia clouds lie so much deeper on Saturn, they are more difficult to see, and the overall appearance of the planet is much blander than is Jupiter’s appearance.

This plot has four panels, with the vertical axis labeled “Altitude (km)”, ranging from -300 km at the bottom to 200 km at the top in increments of 100 km. The horizontal axis is labeled “Temperature (K)”, ranging from zero at left to 300 at right, in increments of 100 K. The left panel is of Jupiter. A yellow curve showing the variation of temperature with altitude is plotted, and begins at 300 K at -100 km. The curve moves upward to the left and reaches the minimum temperature of 100 K at zero km. The curve then moves to the right, and stops at about 150 K at 150 km. Also plotted are various cloud types and their composition, drawn as irregular blobs. At -100 km “H2O” clouds are plotted, “NH4HS” clouds are plotted at about -50 km, “NH3” clouds are drawn at about -25 km, finally “N2H4(?)” clouds are shown above 100 km. Next is Saturn. A yellow curve showing the variation of temperature with altitude is plotted, and begins at 300 K at -300 km. The curve moves upward to the left and reaches the minimum temperature of about 100 K at zero km. The curve then moves to the right, and stops at about 150 K at 200 km. Also plotted are various cloud types and their composition, drawn as irregular blobs. At -250 km “H2O” clouds are plotted, “NH4HS” clouds are plotted at about -150 km, “NH3” clouds are drawn at about -100 km, finally “P2H4(?)” clouds are shown above 100 km. Next is Uranus. A yellow curve showing the variation of temperature with altitude is plotted, and begins at 150 K at -150 km. The curve moves upward to the left and reaches the minimum temperature of about 50 K at zero km. The curve then moves to the right, and stops at about 100 K at 150 km. Also plotted are various cloud types and their composition, drawn as irregular blobs. At -100 km “H2S?” clouds are plotted, “CH4” clouds are plotted at about -50 km, finally “Hydrocarbon ices” are shown above zero km. Finally, at right, is Neptune. A yellow curve showing the variation of temperature with altitude is plotted, and begins at 280 K at -300 km. The curve moves upward to the left and reaches the minimum temperature of about 50 K at zero km. The curve then moves to the right, and stops at about 80 K at 200 km. Also plotted are various cloud types and their composition, drawn as irregular blobs. At -100 km “H2S?” clouds are plotted, “CH4” clouds are plotted at about -50 km, finally “Hydrocarbon ices” are shown above zero km.
Figure 11.12 Atmospheric Structure of the Jovian Planets. In each diagram, the yellow line shows how the temperature (see the scale on the bottom) changes with altitude (see the scale at the left). The location of the main layers on each planet is also shown.

Within the tropospheres of these planets, the temperature and pressure both increase with depth. Through breaks in the ammonia clouds, we can see tantalizing glimpses of other cloud layers that can form in these deeper regions of the atmosphere—regions that were sampled directly for Jupiter by the Galileo probe that fell into the planet.

As it descended to a pressure of 5 bars, the probe should have passed into a region of frozen water clouds, then below that into clouds of liquid water droplets, perhaps similar to the common clouds of the terrestrial troposphere. At least this is what scientists expected. But the probe saw no water clouds, and it measured a surprisingly low abundance of water vapor in the atmosphere. It soon became clear to the Galileo scientists that the probe happened to descend through an unusually dry, cloud-free region of the atmosphere—a giant downdraft of cool, dry gas. Andrew Ingersoll of Caltech, a member of the Galileo team, called this entry site the “desert” of Jupiter. It’s a pity that the probe did not enter a more representative region, but that’s the luck of the cosmic draw. The probe continued to make measurements to a pressure of 22 bars but found no other cloud layers before its instruments stopped working. It also detected lightning storms, but only at great distances, further suggesting that the probe itself was in a region of clear weather.

Above the visible ammonia clouds in Jupiter’s atmosphere, we find the clear stratosphere, which reaches a minimum temperature near 120 K. At still higher altitudes, temperatures rise again, just as they do in the upper atmosphere of Earth, because here the molecules absorb ultraviolet light from the Sun. The cloud colors are due to impurities, the product of chemical reactions among the atmospheric gases in a process we call photochemistry. In Jupiter’s upper atmosphere, photochemical reactions create a variety of fairly complex compounds of hydrogen and carbon that form a thin layer of smog far above the visible clouds. We show this smog as a fuzzy orange region in Figure 11.12; however, this thin layer does not block our view of the clouds beneath it.

The visible atmosphere of Saturn is composed of approximately 75% hydrogen and 25% helium, with trace amounts of methane, ethane, propane, and other hydrocarbons. The overall structure is similar to that of Jupiter. Temperatures are somewhat colder, however, and the atmosphere is more extended due to Saturn’s lower surface gravity. Thus, the layers are stretched out over a longer distance, as you can see in Figure 11.12. Overall, though, the same atmospheric regions, condensation cloud, and photochemical reactions that we see on Jupiter should be present on Saturn (Figure 11.13).

Cloud Bands on Saturn. In contrast to the cloud bands on Jupiter, Saturn’s clouds appear smoother and less turbulent. Saturn’s bands also have less color contrast between them, requiring image processing to fully reveal their structure.
Figure 11.13 Cloud Structure on Saturn. In this Cassini image, colors have been intensified, so we can see the bands and zones and storms in the atmosphere. The dark band is the shadow of the rings on the planet. (credit: NASA/JPL-Caltech/Space Science Institute)

Saturn has one anomalous cloud structure that has mystified scientists: a hexagonal wave pattern around the north pole, shown in Figure 11.14. The six sides of the hexagon are each longer than the diameter of Earth. Winds are also extremely high on Saturn, with speeds of up to 1800 kilometers per hour measured near the equator.

Hexagon Pattern on Saturn’s North Pole. A distinct hexagon shaped cloud band is seen in this infrared image of Saturn’s north pole. The cloud bands both within and to the south of the hexagon are circular.
Figure 11.14 Hexagon Pattern on Saturn’s North Pole. In this infrared nighttime image from the Cassini mission, the path of Saturn’s hexagonal jet stream is visible as the planet’s north pole emerges from the darkness of winter. (credit: NASA/JPL/University of Arizona)

Unlike Jupiter and Saturn, Uranus is almost entirely featureless as seen at wavelengths that range from the ultraviolet to the infrared (see its rather boring image in Figure 11.1). Calculations indicate that the basic atmospheric structure of Uranus should resemble that of Jupiter and Saturn, although its upper clouds (at the 1-bar pressure level) are composed of methane rather than ammonia. However, the absence of an internal heat source suppresses up-and-down movement and leads to a very stable atmosphere with little visible structure.

Neptune differs from Uranus in its appearance, although their basic atmospheric temperatures are similar. The upper clouds are composed of methane, which forms a thin cloud layer near the top of the troposphere at a temperature of 70 K and a pressure of 1.5 bars. Most the atmosphere above this level is clear and transparent, with less haze than is found on Uranus. The scattering of sunlight by gas molecules lends Neptune a pale blue color similar to that of Earth’s atmosphere (Figure 11.15). Another cloud layer, perhaps composed of hydrogen sulfide ice particles, exists below the methane clouds at a pressure of 3 bars.

Blue Neptune. The blue sphere of Uranus is nearly featureless, save for dark bands near the poles, a few scattered white clouds, and a dark spot (near the center in this image) similar to the Great Red Spot on Jupiter.
Figure 11.15 Neptune. The planet Neptune is seen here as photographed by Voyager in 1989. The blue color, exaggerated with computer processing, is caused by the scattering of sunlight in the planet’s upper atmosphere. (credit: modification of work by NASA)

Unlike Uranus, Neptune has an atmosphere in which convection currents—vertical drafts of gas—emanate from the interior, powered by the planet’s internal heat source. These currents carry warm gas above the 1.5-bar cloud level, forming additional clouds at elevations about 75 kilometers higher. These high-altitude clouds form bright white patterns against the blue planet beneath. Voyager photographed distinct shadows on the methane cloud tops, permitting the altitudes of the high clouds to be calculated. Figure 11.16 is a remarkable close-up of Neptune’s outer layers that could never have been obtained from Earth.

The White Clouds of Neptune. Thin clouds of methane ice crystals run nearly vertically from top to bottom center in this Voyager image of Neptune. These clouds have the appearance of cirrus clouds frequently seen on Earth.
Figure 11.16 High Clouds in the Atmosphere of Neptune. These bright, narrow cirrus clouds are made of methane ice crystals. From the shadows they cast on the thicker cloud layer below, we can measure that they are about 75 kilometers higher than the main clouds. (credit: modification of work by NASA/JPL)

Winds and Weather

The atmospheres of the jovian planets have many regions of high pressure (where there is more air) and low pressure (where there is less). Just as it does on Earth, air flows between these regions, setting up wind patterns that are then distorted by the rotation of the planet. By observing the changing cloud patterns on the jovian planets, we can measure wind speeds and track the circulation of their atmospheres.

The atmospheric motions we see on these planets are fundamentally different from those on the terrestrial planets. The giants spin faster, and their rapid rotation tends to smear out of the circulation into horizontal (east-west) patterns parallel to the equator. In addition, there is no solid surface below the atmosphere against which the circulation patterns can rub and lose energy (which is how tropical storms on Earth ultimately die out when they come over land).

As we have seen, on all the giants except Uranus, heat from the inside contributes about as much energy to the atmosphere as sunlight from the outside. This means that deep convection currents of rising hot air and falling cooler air circulate throughout the atmospheres of the planets in the vertical direction.

The main features of Jupiter’s visible clouds (see Figure 11.2 and Figure 11.10, for example) are alternating dark and light bands that stretch around the planet parallel to the equator. These bands are semi-permanent features, although they shift in intensity and position from year to year. Consistent with the small tilt of Jupiter’s axis, the pattern does not change with the seasons.

More fundamental than these bands are underlying east-west wind patterns in the atmosphere, which do not appear to change at all, even over many decades. These are illustrated in Figure 11.17, which indicates how strong the winds are at each latitude for the giant planets. At Jupiter’s equator, a jet stream flows eastward with a speed of about 90 meters per second (300 kilometers per hour), similar to the speed of jet streams in Earth’s upper atmosphere. At higher latitudes there are alternating east- and west-moving streams, with each hemisphere an almost perfect mirror image of the other. Saturn shows a similar pattern, but with a much stronger equatorial jet stream, as we noted earlier.

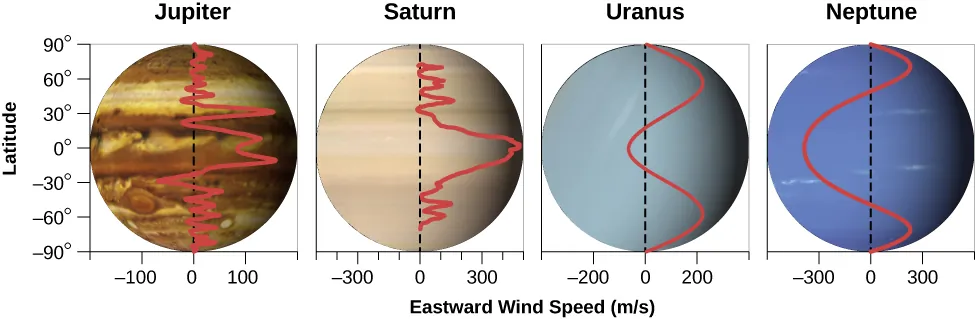

Wind Speeds of the Giant Planets. Four graphs are shown, each with the vertical axis labeled “Latitude” in degrees, running from -90 at bottom to 90 at the top in increments of 30 degrees. The horizontal axis is labeled “Eastward Wind Speed (m/s)”. Each plot has an image of its planet as the background and scaled so that zero degrees latitude on the vertical axis matches the equator of the planet. The left-most plot is of Jupiter, with the horizontal scale running from -200 m/s on the left to 200 m/s on the right, in increments of 100 m/s. A dashed line is drawn vertically upward from zero m/s. Overplotted is a red curve depicting Jupiter’s wind speed. It begins at zero m/s at the south pole, alternates between about -40 to 40 m/s until about -30 degrees latitude, where it decreases to about -80 m/s. From there it goes up to about 120 m/s around the equator. Moving northward, the speed drops until about 30 degrees north where it speeds up to about 150 m/s. The speeds then alternate again between about -40 to 40 m/s until it decreases to near zero at the north pole. Next is Saturn, with the horizontal scale running from -500 m/s on the left to 500 m/s on the right, in increments of 100 m/s. A dashed line drawn vertically upward from zero m/s. Overplotted is a red curve depicting Saturn’s wind speed. It is near zero at the south pole and alternates between zero and about 100 m/s up to near -30 degrees latitude. Then the speed increases steadily to 500 m/s at the equator. The wind speed decreases steadily to near zero at 30 degrees latitude, and alternates between zero and 100 m/s before going to near zero at the north pole. Next is Uranus, with the horizontal scale running from -400 m/s on the left to 400 m/s on the right, in increments of 200 m/s. A dashed line drawn vertically upward from zero m/s. Overplotted is a red curve depicting Uranus’ wind speed. It is near zero at the south pole and moves steadily to 200 m/s at -60 degrees latitude. It then decreases to about -50 m/s at the equator and rises steadily to 200 m/s at 60 degrees latitude before returning to zero at the north pole. Finally, Neptune, with the horizontal scale running from -600 m/s on the left to 600 m/s on the right, in increments of 300 m/s. A dashed line drawn vertically upward from zero m/s. Overplotted is a red curve depicting Neptune’s wind speed. It is near zero at the south pole, moves steadily to 250 m/s at -60 degrees latitude. It then decreases to about -300 m/s at the equator and rises steadily to 250 m/s at 60 degrees latitude before returning to zero at the north pole.
Figure 11.17 Winds on the Giant Planets. This image compares the winds of the giant planets, illustrating that wind speed (shown on the horizontal axis) and wind direction vary with latitude (shown on the vertical axis). Winds are measured relative to a planet’s internal rotation speed. A positive velocity means that the winds are blowing in the same direction as, but faster than, the planet’s internal rotation. A negative velocity means that the winds are blowing more slowly than the planet’s internal rotation.

The light zones on Jupiter are regions of upwelling air capped by white ammonia cirrus clouds. They apparently represent the tops of upward-moving convection currents.2 The darker belts are regions where the cooler atmosphere moves downward, completing the convection cycle; they are darker because fewer ammonia clouds mean we can see deeper into the atmosphere, perhaps down to a region of ammonium hydrosulfide (NH4SH) clouds. The Galileo probe sampled one of the clearest of these dry downdrafts.

In spite of the strange seasons induced by the 98° tilt of its axis, Uranus’ basic circulation is parallel with its equator, as is the case on Jupiter and Saturn. The mass of the atmosphere and its capacity to store heat are so great that the alternating 42-year periods of sunlight and darkness have little effect. In fact, Voyager measurements show that the atmospheric temperature is even a few degrees higher on the dark winter side than on the hemisphere facing the Sun. This is another indication that the behavior of such giant planet atmospheres is a complex problem that we do not fully understand.

Neptune’s weather is characterized by strong east-west winds generally similar to those observed on Jupiter and Saturn. The highest wind speeds near its equator reach 2100 kilometers per hour, even higher than the peak winds on Saturn. The Neptune equatorial jet stream actually approaches supersonic speeds (faster than the speed of sound in Neptune’s air).

Giant Storms on Giant Planets

Superimposed on the regular atmospheric circulation patterns we have just described are many local disturbances—weather systems or storms, to borrow the term we use on Earth. The most prominent of these are large, oval-shaped, high-pressure regions on both Jupiter (Figure 11.18) and Neptune.

Images of Jupiter’s Turbulent Atmosphere. Panel (a) shows a region near the Great Red Spot, at upper right. Below and to the left of the Spot are three white vortices, smaller but similar in shape to the GRS. Panel (b) shows a turbulent region near the equatorial cloud bands, which looks like cream being stirred into a cup of coffee.
Figure 11.18 Storms on Jupiter. Two examples of storms on Jupiter illustrate the use of enhanced color and contrast to bring out faint features. (a) The three oval-shaped white storms below and to the left of Jupiter’s Great Red Spot are highly active, and moved closer together over the course of seven months between 1994 and 1995. (b) The clouds of Jupiter are turbulent and ever-changing, as shown in this Hubble Space Telescope image from 2007. (credit a: modification of work by Reta Beebe, Amy Simon (New Mexico State Univ.), and NASA; credit b: modification of work by NASA, ESA, and A. Simon-Miller (NASA Goddard Space Flight Center))

The largest and most famous of Jupiter’s storms is the Great Red Spot, a reddish oval in the southern hemisphere that changes slowly; it was 25,000 kilometers long when Voyager arrived in 1979, but it had shrunk to 20,000 kilometers by the end of the Galileo mission in 2000 (Figure 11.19). The giant storm has persisted in Jupiter’s atmosphere ever since astronomers were first able to observe it after the invention of the telescope, more than 300 years ago. However, it has continued to shrink, raising speculation that we may see its end within a few decades.

Jupiter’s Great Red Spot. A highly enhanced image from the Voyager probe showing the same region seen in Figure 11_01_Jupiter, but with much greater color contrast allowing much finer features and details to be discerned.
Figure 11.19 Jupiter’s Great Red Spot. This is the largest storm system on Jupiter, as seen during the Voyager spacecraft flyby. Below and to the right of the Red Spot is one of the white ovals, which are similar but smaller high-pressure features. The white oval is roughly the size of planet Earth, to give you a sense of the huge scale of the weather patterns we are seeing. The colors on the Jupiter image have been somewhat exaggerated here so astronomers (and astronomy students) can study their differences more effectively. See Figure 11.2 to get a better sense of the colors your eye would actually see near Jupiter. (credit: NASA/JPL)

In addition to its longevity, the Red Spot differs from terrestrial storms in being a high-pressure region; on our planet, such storms are regions of lower pressure. The Red Spot’s counterclockwise rotation has a period of six days. Three similar but smaller disturbances (about as big as Earth) formed on Jupiter in the 1930s. They look like white ovals, and one can be seen clearly below and to the right of the Great Red Spot in Figure 11.19. In 1998, the Galileo spacecraft watched as two of these ovals collided and merged into one.

We don’t know what causes the Great Red Spot or the white ovals, but we do have an idea how they can last so long once they form. On Earth, the lifetime of a large oceanic hurricane or typhoon is typically a few weeks, or even less when it moves over the continents and encounters friction with the land. Jupiter has no solid surface to slow down an atmospheric disturbance; furthermore, the sheer size of the disturbances lends them stability. We can calculate that on a planet with no solid surface, the lifetime of anything as large as the Red Spot should be measured in centuries, while lifetimes for the white ovals should be measured in decades, which is pretty much what we have observed.

Despite Neptune’s smaller size and different cloud composition, Voyager showed that it had an atmospheric feature surprisingly similar to Jupiter’s Great Red Spot. Neptune’s Great Dark Spot was nearly 10,000 kilometers long (Figure 11.15). On both planets, the giant storms formed at latitude 20° S, had the same shape, and took up about the same fraction of the planet’s diameter. The Great Dark Spot rotated with a period of 17 days, versus about 6 days for the Great Red Spot. When the Hubble Space Telescope examined Neptune in the mid-1990s, however, astronomers could find no trace of the Great Dark Spot on their images.

Although many of the details of the weather on the jovian planets are not yet understood, it is clear that if you are a fan of dramatic weather, these worlds are the place to look. We study the features in these atmospheres not only for what they have to teach us about conditions in the jovian planets, but also because we hope they can help us understand the weather on Earth just a bit better.

Example 11.1

Storms and Winds The wind speeds in circular storm systems can be formidable on both Earth and the giant planets. Think about our big terrestrial hurricanes. If you watch their behavior in satellite images shown on weather outlets, you will see that they require about one day to rotate. If a storm has a diameter of 400 km and rotates once in 24 h, what is the wind speed?

Solution Speed equals distance divided by time. The distance in this case is the circumference (2πR or πd), or approximately 1250 km, and the time is 24 h, so the speed at the edge of the storm would be about 52 km/h. Toward the center of the storm, the wind speeds can be much higher.

Check Your Learning Jupiter’s Great Red Spot rotates in 6 d and has a circumference equivalent to a circle with radius 10,000 km. Calculate the wind speed at the outer edge of the spot.

Answer:

For the Great Red Spot of Jupiter, the circumference (2πR) is about 63,000 km. Six d equals 144 h, suggesting a speed of about 436 km/h. This is much faster than wind speeds on Earth.

Footnotes

  • 2 Recall from earlier chapters that convection is a process in which liquids, heated from underneath, have regions where hot material rises and cooler material descends. You can see convection at work if you heat oatmeal on a stovetop or watch miso soup boil.
