In this section you will:
- Find function values for the sine and cosine of and
- Identify the domain and range of sine and cosine functions.
- Find reference angles.
- Use reference angles to evaluate trigonometric functions.
Looking for a thrill? Then consider a ride on the Singapore Flyer, the world’s tallest Ferris wheel. Located in Singapore, the Ferris wheel soars to a height of 541 feet—a little more than a tenth of a mile! Described as an observation wheel, riders enjoy spectacular views as they travel from the ground to the peak and down again in a repeating pattern. In this section, we will examine this type of revolving motion around a circle. To do so, we need to define the type of circle first, and then place that circle on a coordinate system. Then we can discuss circular motion in terms of the coordinate pairs.
Finding Trigonometric Functions Using the Unit Circle
We have already defined the trigonometric functions in terms of right triangles. In this section, we will redefine them in terms of the unit circle. Recall that a unit circle is a circle centered at the origin with radius 1, as shown in Figure 2. The angle (in radians) that intercepts forms an arc of length Using the formula and knowing that we see that for a unit circle,

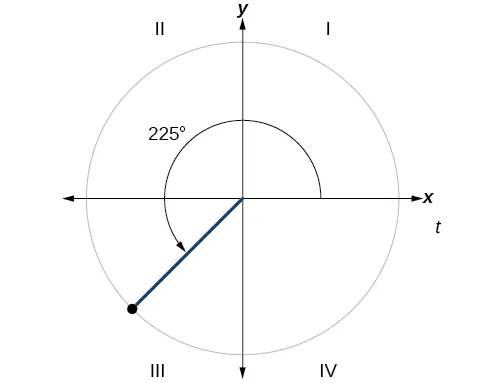

The x- and y-axes divide the coordinate plane into four quarters called quadrants. We label these quadrants to mimic the direction a positive angle would sweep. The four quadrants are labeled I, II, III, and IV.

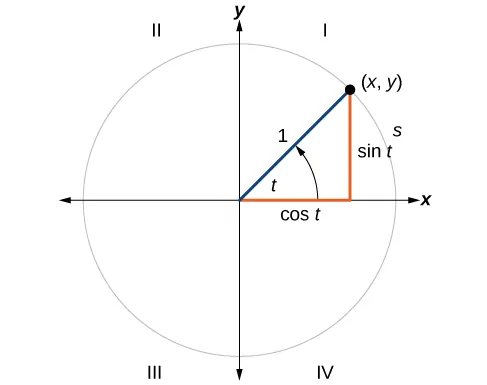

For any angle we can label the intersection of the terminal side and the unit circle as by its coordinates, The coordinates and will be the outputs of the trigonometric functions and respectively. This means and
A unit circle has a center at and radius In a unit circle, the length of the intercepted arc is equal to the radian measure of the central angle
Let be the endpoint on the unit circle of an arc of arc length The coordinates of this point can be described as functions of the angle.
Defining Sine and Cosine Functions from the Unit Circle

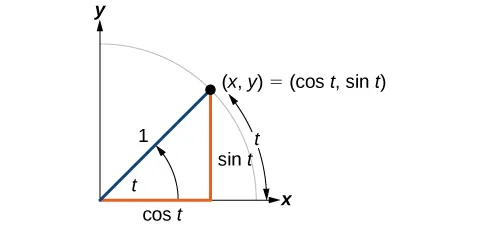

The sine function relates a real number to the y-coordinate of the point where the corresponding angle intercepts the unit circle. More precisely, the sine of an angle equals the y-value of the endpoint on the unit circle of an arc of length In Figure 2, the sine is equal to Like all functions, the sine function has an input and an output. Its input is the measure of the angle; its output is the y-coordinate of the corresponding point on the unit circle.
The cosine function of an angle equals the x-value of the endpoint on the unit circle of an arc of length In Figure 3, the cosine is equal to
Because it is understood that sine and cosine are functions, we do not always need to write them with parentheses: is the same as and is the same as Likewise, is a commonly used shorthand notation for Be aware that many calculators and computers do not recognize the shorthand notation. When in doubt, use the extra parentheses when entering calculations into a calculator or computer.
If is a real number and a point on the unit circle corresponds to a central angle then

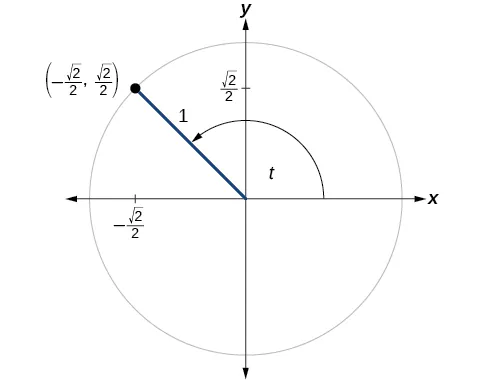

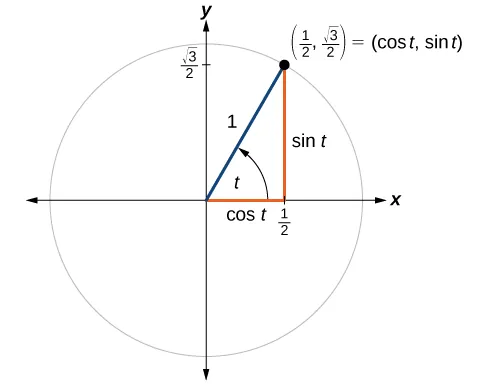

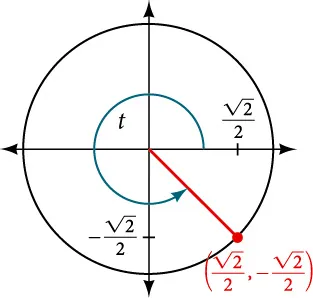

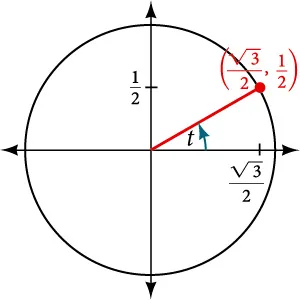

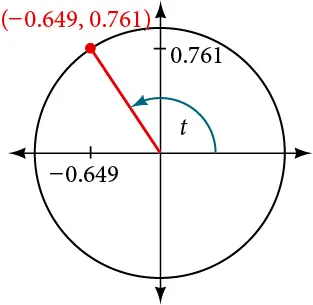

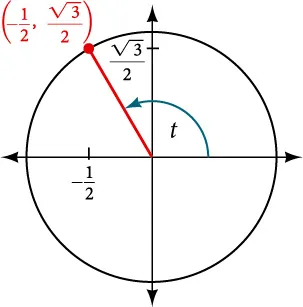

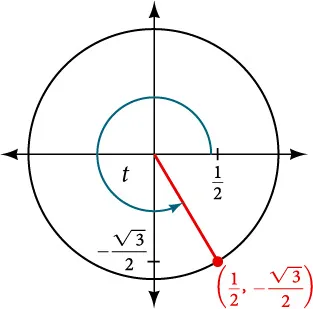

Given a point P on the unit circle corresponding to an angle of find the sine and cosine.
- The sine of is equal to the y-coordinate of point
- The cosine of is equal to the x-coordinate of point
Finding Sines and Cosines of Angles on an Axis
For quadrantral angles, the corresponding point on the unit circle falls on the x- or y-axis. In that case, we can easily calculate cosine and sine from the values of and
Calculating Sines and Cosines along an Axis

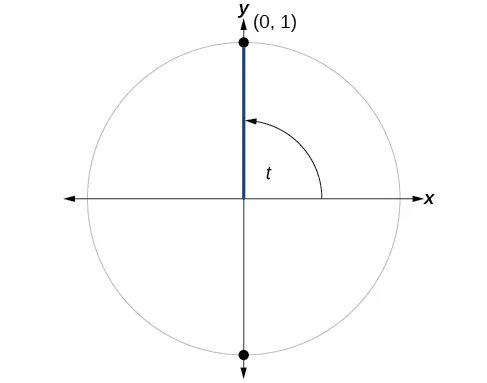

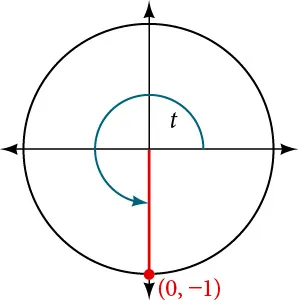

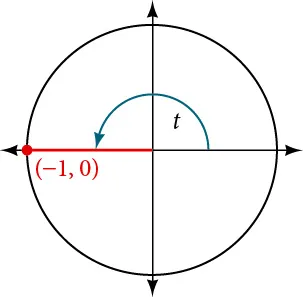

Find cosine and sine of the angle
The Pythagorean Identity

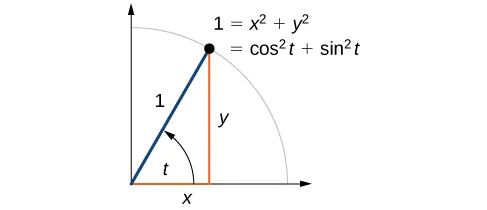

Now that we can define sine and cosine, we will learn how they relate to each other and the unit circle. Recall that the equation for the unit circle is Because and we can substitute for and to get This equation, is known as the Pythagorean Identity. See Figure 7.
We can use the Pythagorean Identity to find the cosine of an angle if we know the sine, or vice versa. However, because the equation yields two solutions, we need additional knowledge of the angle to choose the solution with the correct sign. If we know the quadrant where the angle is, we can easily choose the correct solution.
The Pythagorean Identity states that, for any real number
Given the sine of some angle and its quadrant location, find the cosine of
- Substitute the known value of into the Pythagorean Identity.
- Solve for
- Choose the solution with the appropriate sign for the x-values in the quadrant where is located.
Finding a Cosine from a Sine or a Sine from a Cosine

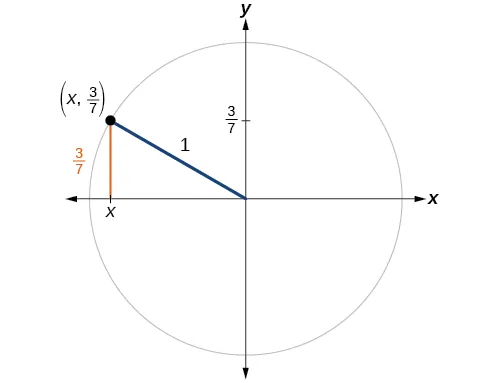

If and is in the second quadrant, find
If and is in the fourth quadrant, find
Finding Sines and Cosines of Special Angles
We have already learned some properties of the special angles, such as the conversion from radians to degrees, and we found their sines and cosines using right triangles. We can also calculate sines and cosines of the special angles using the Pythagorean Identity.
Finding Sines and Cosines of Angles

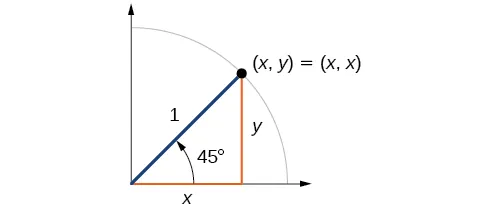

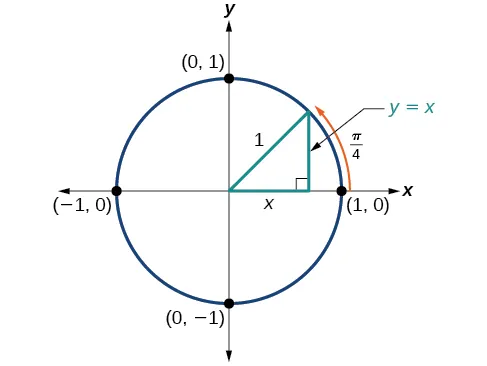

First, we will look at angles of or as shown in Figure 9. A triangle is an isosceles triangle, so the x- and y-coordinates of the corresponding point on the circle are the same. Because the x- and y-values are the same, the sine and cosine values will also be equal.
At which is 45 degrees, the radius of the unit circle bisects the first quadrantal angle. This means the radius lies along the line A unit circle has a radius equal to 1 so the right triangle formed below the line has sides and and radius = 1. See Figure 10.
From the Pythagorean Theorem we get
We can then substitute
Next we combine like terms.
And solving for we get
In quadrant I,
At or 45 degrees,
If we then rationalize the denominators, we get
Therefore, the coordinates of a point on a circle of radius at an angle of are
Finding Sines and Cosines of and Angles

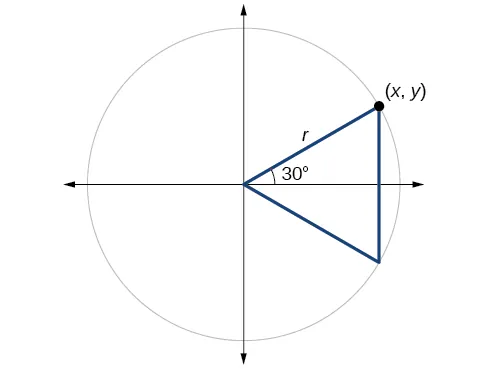

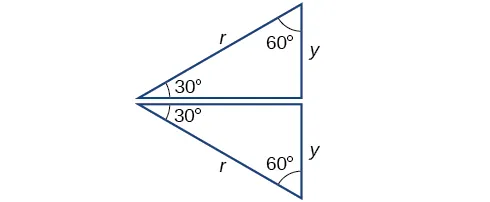

Next, we will find the cosine and sine at an angle of or First, we will draw a triangle inside a circle with one side at an angle of and another at an angle of as shown in Figure 11. If the resulting two right triangles are combined into one large triangle, notice that all three angles of this larger triangle will be as shown in Figure 12.
Because all the angles are equal, the sides are also equal. The vertical line has length and since the sides are all equal, we can also conclude that or Since
And since in our unit circle,
Using the Pythagorean Identity, we can find the cosine value.
The coordinates for the point on a circle of radius at an angle of are At the radius of the unit circle, 1, serves as the hypotenuse of a 30-60-90 degree right triangle, as shown in Figure 13. Angle has measure At point we draw an angle with measure of We know the angles in a triangle sum to so the measure of angle is also Now we have an equilateral triangle. Because each side of the equilateral triangle is the same length, and we know one side is the radius of the unit circle, all sides must be of length 1.

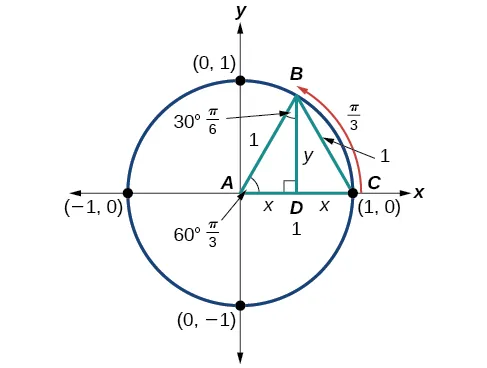

The measure of angle is 30°. Angle is double angle so its measure is 60°. is the perpendicular bisector of so it cuts in half. This means that is the radius, or Notice that is the x-coordinate of point which is at the intersection of the 60° angle and the unit circle. This gives us a triangle with hypotenuse of 1 and side of length
From the Pythagorean Theorem, we get
Substituting we get
Solving for we get
Since has the terminal side in quadrant I where the y-coordinate is positive, we choose the positive value.
At (60°), the coordinates for the point on a circle of radius at an angle of are so we can find the sine and cosine.
We have now found the cosine and sine values for all of the most commonly encountered angles in the first quadrant of the unit circle. Table 1 summarizes these values.

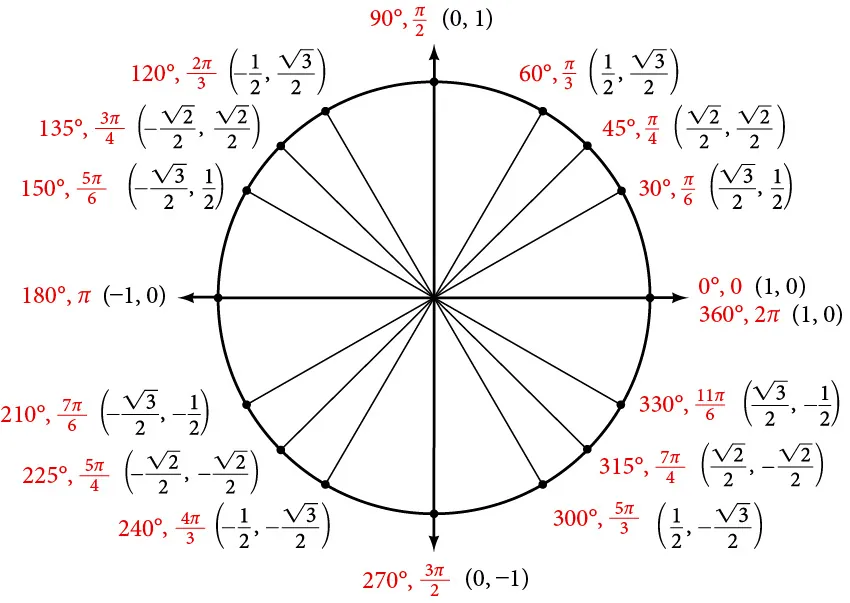

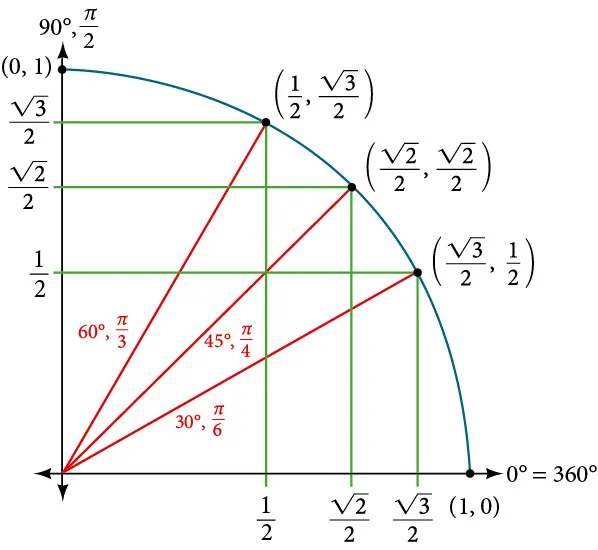

Figure 14 shows the common angles in the first quadrant of the unit circle.
Using a Calculator to Find Sine and Cosine
To find the cosine and sine of angles other than the special angles, we turn to a computer or calculator. Be aware: Most calculators can be set into “degree” or “radian” mode, which tells the calculator the units for the input value. When we evaluate on our calculator, it will evaluate it as the cosine of 30 degrees if the calculator is in degree mode, or the cosine of 30 radians if the calculator is in radian mode.
Given an angle in radians, use a graphing calculator to find the cosine.
- If the calculator has degree mode and radian mode, set it to radian mode.
- Press the COS key.
- Enter the radian value of the angle and press the close-parentheses key ")".
- Press ENTER.
Using a Graphing Calculator to Find Sine and Cosine
Evaluate using a graphing calculator or computer.
We can find the cosine or sine of an angle in degrees directly on a calculator with degree mode. For calculators or software that use only radian mode, we can find the sine of for example, by including the conversion factor to radians as part of the input:
Identifying the Domain and Range of Sine and Cosine Functions
Now that we can find the sine and cosine of an angle, we need to discuss their domains and ranges. What are the domains of the sine and cosine functions? That is, what are the smallest and largest numbers that can be inputs of the functions? Because angles smaller than and angles larger than can still be graphed on the unit circle and have real values of and there is no lower or upper limit to the angles that can be inputs to the sine and cosine functions. The input to the sine and cosine functions is the rotation from the positive x-axis, and that may be any real number.
What are the ranges of the sine and cosine functions? What are the least and greatest possible values for their output? We can see the answers by examining the unit circle, as shown in Figure 15. The bounds of the x-coordinate are The bounds of the y-coordinate are also Therefore, the range of both the sine and cosine functions is
Finding Reference Angles
We have discussed finding the sine and cosine for angles in the first quadrant, but what if our angle is in another quadrant? For any given angle in the first quadrant, there is an angle in the second quadrant with the same sine value. Because the sine value is the y-coordinate on the unit circle, the other angle with the same sine will share the same y-value, but have the opposite x-value. Therefore, its cosine value will be the opposite of the first angle’s cosine value.
Likewise, there will be an angle in the fourth quadrant with the same cosine as the original angle. The angle with the same cosine will share the same x-value but will have the opposite y-value. Therefore, its sine value will be the opposite of the original angle’s sine value.

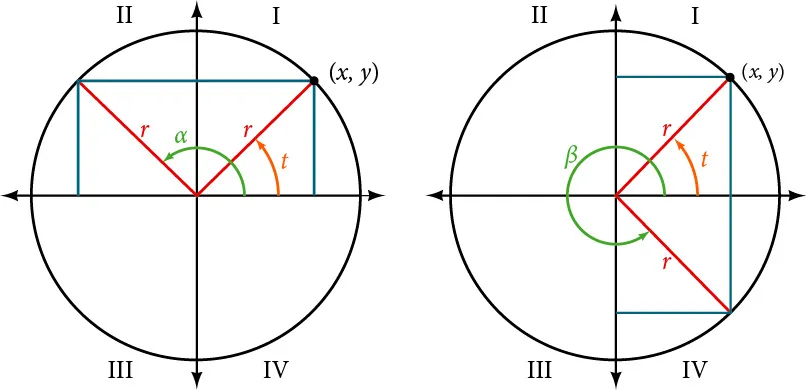

As shown in Figure 16, angle has the same sine value as angle the cosine values are opposites. Angle has the same cosine value as angle the sine values are opposites.

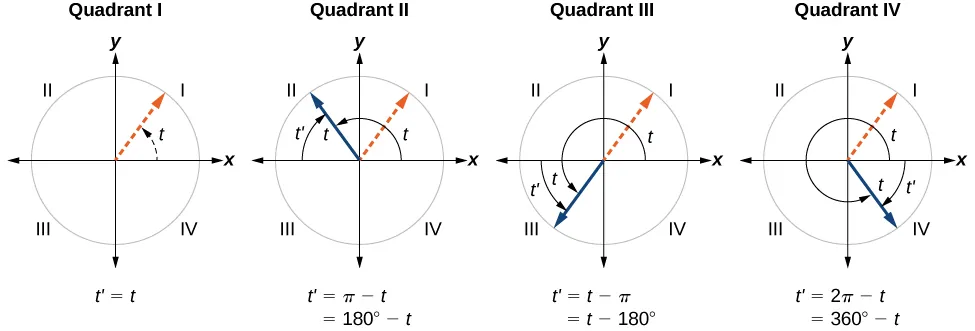

Recall that an angle’s reference angle is the acute angle, formed by the terminal side of the angle and the horizontal axis. A reference angle is always an angle between and or and radians. As we can see from Figure 17, for any angle in quadrants II, III, or IV, there is a reference angle in quadrant I.
Given an angle between and find its reference angle.
- An angle in the first quadrant is its own reference angle.
- For an angle in the second or third quadrant, the reference angle is or
- For an angle in the fourth quadrant, the reference angle is or
- If an angle is less than or greater than add or subtract as many times as needed to find an equivalent angle between and
Find the reference angle of
Using Reference Angles
Now let’s take a moment to reconsider the Ferris wheel introduced at the beginning of this section. Suppose a rider snaps a photograph while stopped twenty feet above ground level. The rider then rotates three-quarters of the way around the circle. What is the rider’s new elevation? To answer questions such as this one, we need to evaluate the sine or cosine functions at angles that are greater than 90 degrees or at a negative angle. Reference angles make it possible to evaluate trigonometric functions for angles outside the first quadrant. They can also be used to find coordinates for those angles. We will use the reference angle of the angle of rotation combined with the quadrant in which the terminal side of the angle lies.
Using Reference Angles to Evaluate Trigonometric Functions
We can find the cosine and sine of any angle in any quadrant if we know the cosine or sine of its reference angle. The absolute values of the cosine and sine of an angle are the same as those of the reference angle. The sign depends on the quadrant of the original angle. The cosine will be positive or negative depending on the sign of the x-values in that quadrant. The sine will be positive or negative depending on the sign of the y-values in that quadrant.
Angles have cosines and sines with the same absolute value as their reference angles. The sign (positive or negative) can be determined from the quadrant of the angle.
Given an angle in standard position, find the reference angle, and the cosine and sine of the original angle.
- Measure the angle between the terminal side of the given angle and the horizontal axis. That is the reference angle.
- Determine the values of the cosine and sine of the reference angle.
- Give the cosine the same sign as the x-values in the quadrant of the original angle.
- Give the sine the same sign as the y-values in the quadrant of the original angle.
Using Reference Angles to Find Sine and Cosine
- ⓐ Using a reference angle, find the exact value of and
- ⓑ Using the reference angle, find and
- ⓐ Use the reference angle of to find and
- ⓑ Use the reference angle of to find and
Using Reference Angles to Find Coordinates
Now that we have learned how to find the cosine and sine values for special angles in the first quadrant, we can use symmetry and reference angles to fill in cosine and sine values for the rest of the special angles on the unit circle. They are shown in Figure 19. Take time to learn the coordinates of all of the major angles in the first quadrant.
In addition to learning the values for special angles, we can use reference angles to find coordinates of any point on the unit circle, using what we know of reference angles along with the identities
First we find the reference angle corresponding to the given angle. Then we take the sine and cosine values of the reference angle, and give them the signs corresponding to the y- and x-values of the quadrant.
Given the angle of a point on a circle and the radius of the circle, find the coordinates of the point.
- Find the reference angle by measuring the smallest angle to the x-axis.
- Find the cosine and sine of the reference angle.
- Determine the appropriate signs for and in the given quadrant.
Using the Unit Circle to Find Coordinates

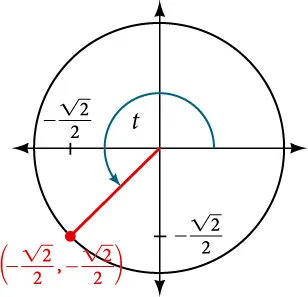

Find the coordinates of the point on the unit circle at an angle of
Find the coordinates of the point on the unit circle at an angle of
Access these online resources for additional instruction and practice with sine and cosine functions.
7.3 Section Exercises

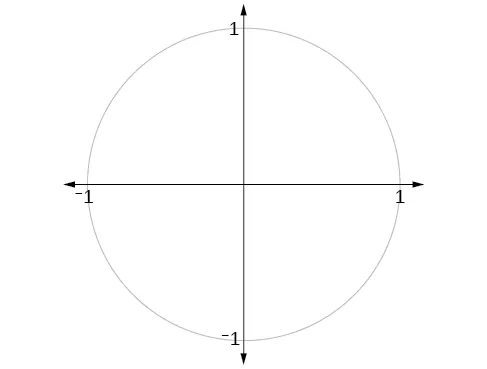

Describe the unit circle.
What do the x- and y-coordinates of the points on the unit circle represent?
Discuss the difference between a coterminal angle and a reference angle.
Explain how the cosine of an angle in the second quadrant differs from the cosine of its reference angle in the unit circle.
Explain how the sine of an angle in the second quadrant differs from the sine of its reference angle in the unit circle.
For the following exercises, use the given sign of the sine and cosine functions to find the quadrant in which the terminal point determined by lies.
For the following exercises, find the exact value of each trigonometric function.
For the following exercises, state the reference angle for the given angle.
For the following exercises, find the reference angle, the quadrant of the terminal side, and the sine and cosine of each angle. If the angle is not one of the angles on the unit circle, use a calculator and round to three decimal places.
For the following exercises, find the requested value.
If and is in the fourth quadrant, find
If and is in the first quadrant, find
If and is in the second quadrant, find
If and is in the third quadrant, find
Find the coordinates of the point on a circle with radius 15 corresponding to an angle of
Find the coordinates of the point on a circle with radius 20 corresponding to an angle of
Find the coordinates of the point on a circle with radius 8 corresponding to an angle of
Find the coordinates of the point on a circle with radius 16 corresponding to an angle of
State the domain of the sine and cosine functions.
State the range of the sine and cosine functions.

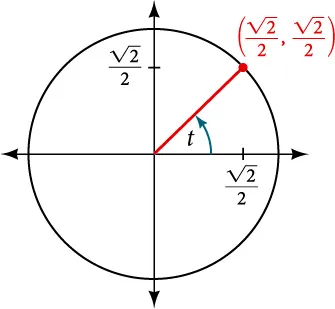

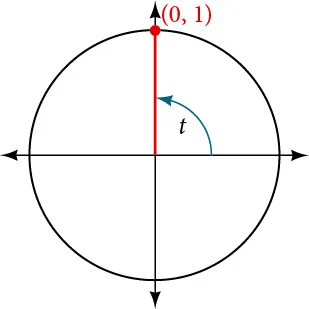

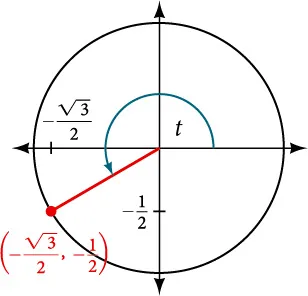

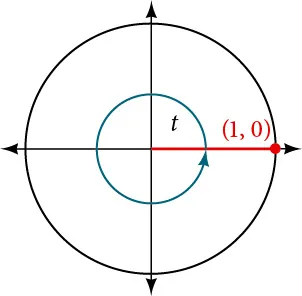

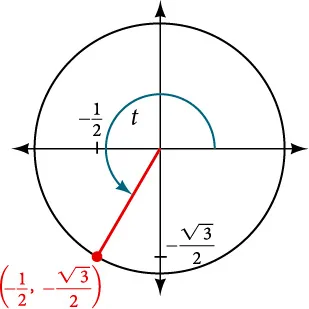

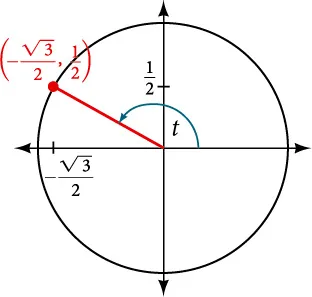

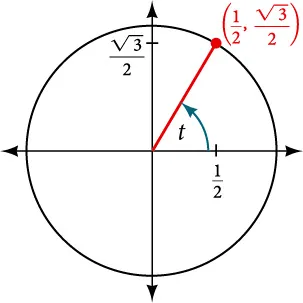

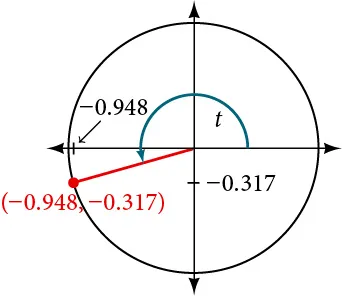

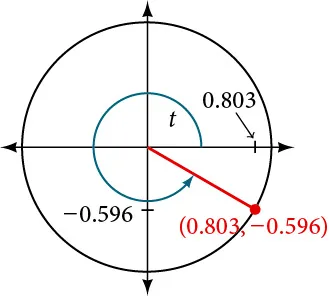

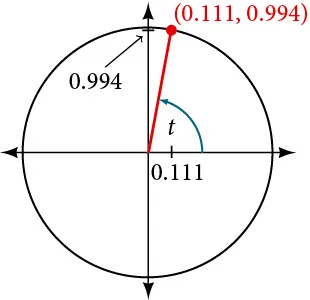

For the following exercises, use the given point on the unit circle to find the value of the sine and cosine of
For the following exercises, use a graphing calculator to evaluate.
For the following exercises, evaluate.
For the following exercises, use this scenario: A child enters a carousel that takes one minute to revolve once around. The child enters at the point that is, on the due north position. Assume the carousel revolves counter clockwise.
What are the coordinates of the child after 45 seconds?
What are the coordinates of the child after 90 seconds?
What are the coordinates of the child after 125 seconds?
When will the child have coordinates if the ride lasts 6 minutes? (There are multiple answers.)
When will the child have coordinates if the ride lasts 6 minutes?
