7.8.3 Using Diagrams to Find Equivalent Quadratic Expressions

Algebra 17.8.3 Using Diagrams to Find Equivalent Quadratic Expressions

Search for key terms or text.

Activity

1. Here is a diagram of a rectangle with side lengths x + 1 x + 1 and x + 3 x + 3 . Use this diagram to show that ( x + 1 ) ( x + 3 ) ( x + 1 ) ( x + 3 ) and x 2 + 4 x + 3 x 2 + 4 x + 3 are equivalent expressions.

An area model using a rectangle is divided into 4 smaller rectangles with both vertical and horizontal segments. The top left section of the rectangle is labeled x and the top right section of the rectangle is labeled 3. The top left side length of the rectangle is labeled x and the bottom left side length of the rectangle is labeled 1. There are four areas inside the rectangle that are not yet labeled.

2. Draw diagrams to help you write an equivalent expression for each of the following:

a. ( x + 5 ) 2 ( x + 5 ) 2

b. 2 x ( x + 4 ) 2 x ( x + 4 )

c. ( 2 x + 1 ) ( x + 3 ) ( 2 x + 1 ) ( x + 3 )

d. ( x + m ) ( x + n ) ( x + m ) ( x + n )

3. Write an equivalent expression for each expression without drawing a diagram. Use the distributive property to help. Remember FOIL for multiplying binomials: Multiply the First terms, the Outer terms, the Inner terms, and the Last terms.

a. ( x + 2 ) ( x + 6 ) ( x + 2 ) ( x + 6 )

b. ( x + 5 ) ( 2 x + 10 ) ( x + 5 ) ( 2 x + 10 )

Video: Using Diagrams to Find Equivalent Quadratic Expressions

Watch the following video to learn more about using diagrams to find equivalent quadratic expressions.

Are you ready for more?

Extending Your Thinking

1.

Image 1

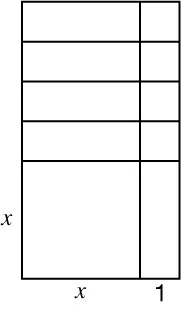

Individual algebra tiles are depicted. There is one quadratic tile that is labeled with an x and x along its top and left-hand sides. There is one linear tile labeled with a 1 and x along its top and left-hand side. In addition, are are also 4 other linear tiles that are not labeled. There are also 6 small unit tiles that are not labeled.

Image 2

Algebra tiles arranged into an algebraic model that is rectangular in shape. Along the bottom is one quadratic square that is labeled x and x along two of its sides. Stacked horizontally above the square are three linear tiles. Stacked vertically to the right of the square are two linear tiles. In the space formed by the vertically and horizontally arranged linear tiles, the six unit tiles are arranged to complete the rectangle.

Are Image 1 and Image 2 equivalent? Explain or show your reasoning.

2.

What does this tell you about an equivalent expression for x 2 + 5 x + 6 x 2 + 5 x + 6 ?

3.

Is there a different non-zero number of 1-by-1 squares that we could use instead that would allow us to arrange the combined figures into a single large rectangle?

Self Check

Which expression is equivalent to ( x + 2 ) ( x + 4 ) ?
  1. x 2 + 2 x + 8
  2. 7 x 2 + 8
  3. x 2 + 6 x + 8
  4. x 2 + 4 x

Additional Resources

Multiplying Binomials

Write an expression equivalent to ( x + 2 ) ( x + 5 ) ( x + 2 ) ( x + 5 ) .

Step 1 - Distribute. Use FOIL. Multiply the First terms, Outer terms, Inner terms, and Last terms.

A diagram showing the quantity of x plus 2 times the quantity of x plus 5. On the top, a red arrow is going from x in the first binomial to x in the second binomial. Another red arrow is going from x in the first binomial to 5 in the second binomial. On the bottom, in blue, an arrow is going from 2 in the first binomial to x in the second binomial and then another arrow is going from 2 in the first binomial to 5 in the second binomial.

Step 2 - Write out the four terms.

x 2 + 5 x + 2 x + 10 x 2 + 5 x + 2 x + 10

Step 3 - Combine like terms.

x 2 + 7 x + 10 x 2 + 7 x + 10

Try it

Try It: Multiplying Binomials

Write an expression equivalent to ( x + 7 ) ( x + 3 ) ( x + 7 ) ( x + 3 ) .
