5.13.2 Creating Exponential Functions from Graphs

Algebra 15.13.2 Creating Exponential Functions from Graphs

Search for key terms or text.

Activity

Examine the graph representing an exponential function f f . The function f f gives the value of a computer, in dollars, as a function of time, x x , measured in years since the time of purchase.

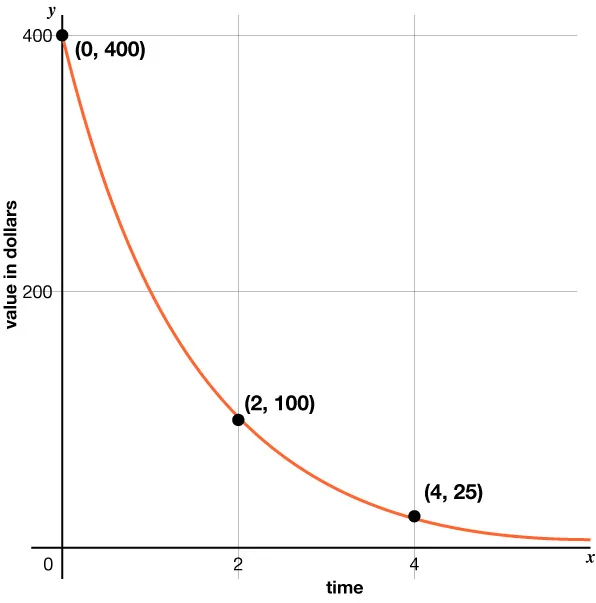

Graph of an exponential decay function, where value in dollars is a function of time the graph passes through the points 0 comma four hundred, 2 comma 100, and 4 comma 25.

Based on the graph, what can you say about the following?

1. The purchase price of the computer

2. The value of f f when x x is 1

3. The meaning of f ( 1 ) f ( 1 )

4. How the value of the computer is changing each year

5. An equation that defines f f . (If needed, use the '^' symbol to enter an exponent.)

6. Whether the value of f f will reach 0 after 10 years

For questions 7 - 10, examine the graphs of the exponential functions.

Examine the graph of the exponential function below.

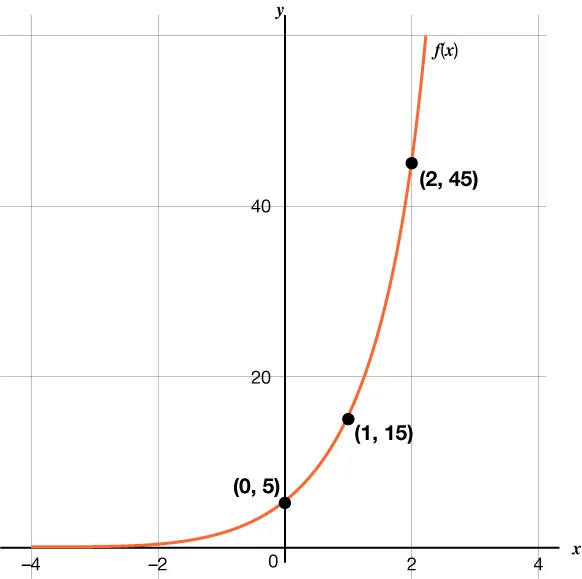

Graph of an exponential growth function The graph passes through the points 0 comma 5, 1 comma 15, and 2 comma 45.

7. Write an equation that defines the function. Use the “^” symbol to enter an exponent.

8. For each, write an equation that defines the function and find the value of the function when x x is 5.

Examine the graph of the exponential function below.

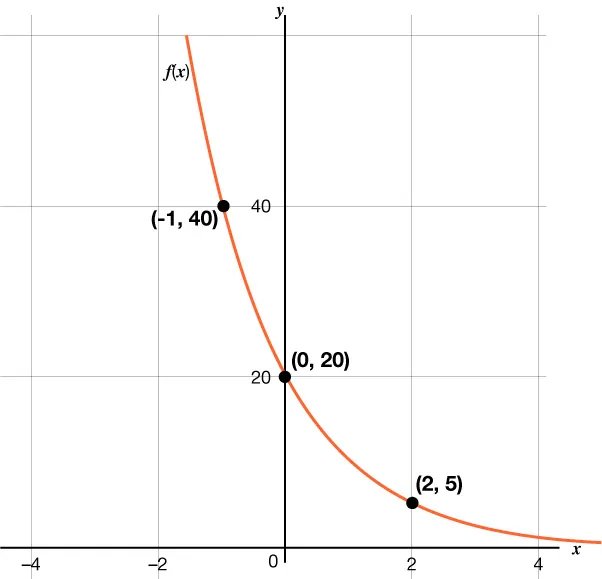

Graph of an exponential decay function. The graph passes through the points negative 1 comma 40, 0 comma 20, and 2 comma 5.

9. Write an equation that defines the function. Use the “^” symbol to enter an exponent.

10. For each, write an equation that defines the function and find the value of the function when x x is 5.

Video: Interpreting an Exponential Function from a Graph

Watch the following video to learn more about interpreting exponential functions:

Are you ready for more?

Extending Your Thinking

Consider a function f f defined by f ( x ) = a · b x f ( x ) = a · b x .

If the graph of f f goes through the points ( 2 , 10 ) ( 2 , 10 ) and ( 8 , 30 ) ( 8 , 30 ) , would you expect f ( 5 ) f ( 5 ) to be less than, equal to, or greater than 20?

If the graph of f f goes through the points ( 2 , 30 ) ( 2 , 30 ) and ( 8 , 10 ) ( 8 , 10 ) , would you expect f ( 5 ) f ( 5 ) to be less than, equal to, or greater than 20?

Self Check

Which of the following is the function for the curve graphed below?

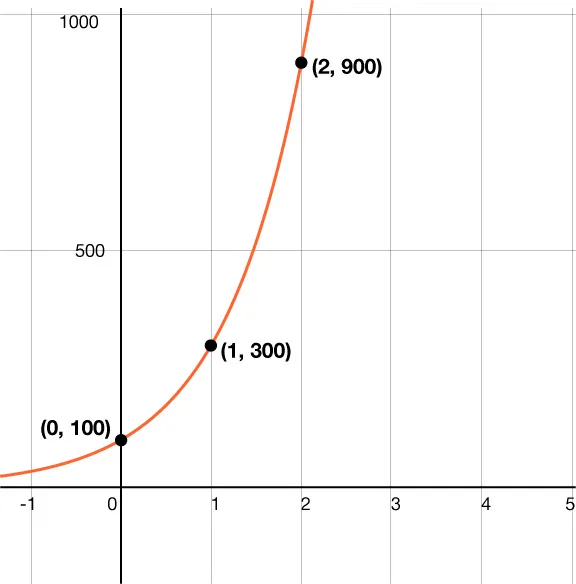

GRAPH OF AN EXPONENTIAL GROWTH FUNCTION. THE GRAPH PASSES THROUGH THE POINTS 0 COMMA 100, 1 COMMA THREE HUNDRED, AND 2 COMMA 900.

  1. f ( x ) = ( 100 3 ) x
  2. f ( x ) = 100 3 x
  3. f ( x ) = 3 100 x
  4. f ( x ) = 100 + 3 x

Additional Resources

Writing Functions from Graphs

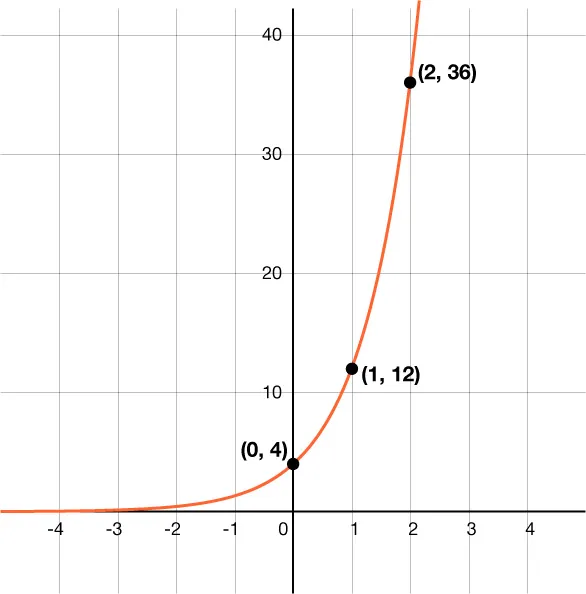

Graph of an exponential growth function. The graph passes through the points 0 comma 4, 1 comma 12, and 2 comma 36.

Find the equation of the function graphed above. Then find the value at f ( 5 ) f ( 5 ) .

1. Find the value of a a , the starting point.

a = 4 a = 4

2. Find the b b , the growth factor.

b = 3 b = 3

3. Write the equation of the function.

f ( x ) = 4 · 3 x f ( x ) = 4 · 3 x

4. Find f ( 5 ) f ( 5 ) .

f ( 5 ) = 4 · 3 5 = 972 f ( 5 ) = 4 · 3 5 = 972

Try it

Try It: Writing Functions from Graphs

Use the graph below to write the equation of the function. Then find f ( 5 ) f ( 5 ) .

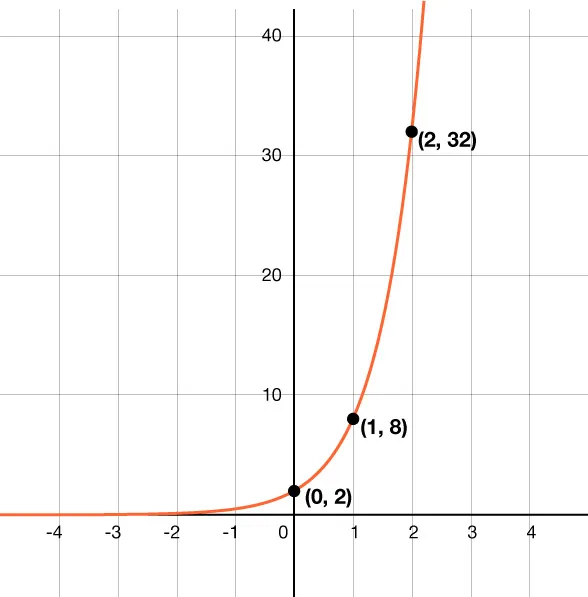

Graph of an exponential growth function The graph passes through the points 0 comma 2, 1 comma 8, and 2 comma 32.
